YN65R-MRQ (1983)

Toyota Hilux

Production Aug 1983 - Aug 1985
Engine 3Y 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1Y#,2Y#,3Y,4Y#

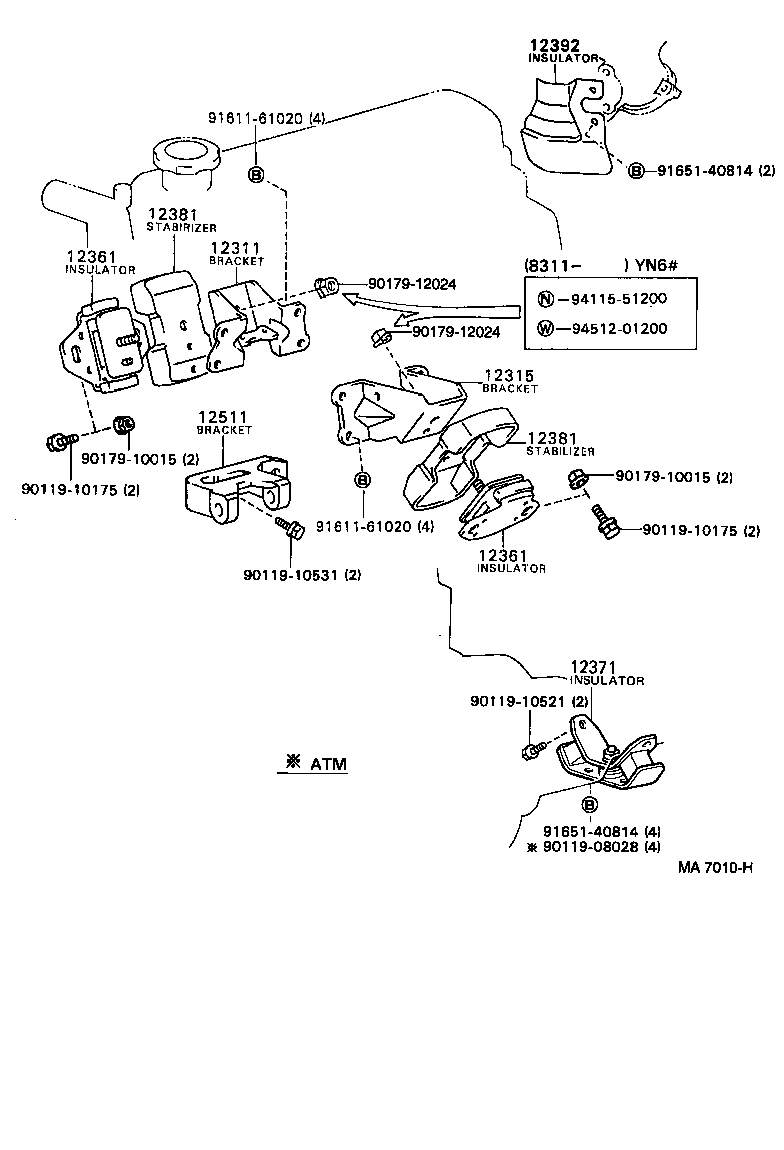

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12392 12511 9011908028 9011910175 9011910175 9011910521 9011910531 9017910015 9017910015 9017912024 9017912024 9161161020 9161161020 9165140814 9165140814 9411551200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-73010

3Y,4Y..YN6#

 1
12311-54090

L,2L..LN5#,6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

L,2L..LN5#,6#

 1
12315-73010

3Y,4Y..YN6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

1Y#,2Y,3Y..YN5#,6#

TOKAI GOMU

 2
12361-35050

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

TOYO GOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

1Y#,2Y,3Y..YN5#,6#

TOKAI GOMU

 2
12361-35050

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

TOYO GOMU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35020

3Y,4Y..YN6#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

 1
Common parts
90119-08028
90119-10175
90119-10521
90119-10531
90179-10015
90179-12024
91611-61020
91651-40814
94115-51200
94512-01200

(8308-9508)L,2L

Click highlighted areas on diagram

diagram 12311 12311 12315 12315 12361 12361 12361 12361 12371 12371 12371 12381 12381 12381 12381 9011908028 9011910175 9011910175 9011910175 9011910175 9011910521 9011910521 9017012008 9017012008 9017012008 9017012008 9017910015 9017910015 9017910015 9017910015 9161161025 9161161025 91611G1020 91611G1020 9161241022 9165140814 9165140814 9165140814 9411541200 9411541200 9411541200 9411541200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-73010

3Y,4Y..YN6#

 1
12311-54090

L,2L..LN5#,6#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-73010

3Y,4Y..YN6#

 1
12311-54090

L,2L..LN5#,6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

L,2L..LN5#,6#

 1
12315-73010

3Y,4Y..YN6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

L,2L..LN5#,6#

 1
12315-73010

3Y,4Y..YN6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

1Y#,2Y,3Y..YN5#,6#

TOKAI GOMU

 2
12361-35050

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

TOYO GOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

1Y#,2Y,3Y..YN5#,6#

TOKAI GOMU

 2
12361-35050

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

TOYO GOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

1Y#,2Y,3Y..YN5#,6#

TOKAI GOMU

 2
12361-35050

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

TOYO GOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35040

1Y#,2Y,3Y..YN5#,6#

TOKAI GOMU

 2
12361-35050

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

TOYO GOMU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35020

3Y,4Y..YN6#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35020

3Y,4Y..YN6#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35020

3Y,4Y..YN6#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 2
Common parts
90119-08028
90119-10175
90119-10521
90170-12008
90179-10015
91611-61025
91611-G1020
91612-41022
91651-40814
94115-41200
94512-01200
