YN65L-MRW3 (1985)
Toyota Hilux
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-54010 |
L,2L..LN5#,6# STD,STD |
1 | ||
| 11802-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD |
1 | ||
| 11804-54010 |
L,2L..LN5#,6# U/S 0.25,U/S 0.250 |
1 | ||
| 11803-54010 |
L,2L..LN5#,6# U/S 0.125,U/S 0.125 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-54010 |
L,2L..LN5#,6# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-54010 |
L,2L..LN5#,6# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-14038 |
L,2L..LN5#,6# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-71900 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 13511-71900 |
2Y,3Y..YN56,65 |
1 | ||
| 13501-54020 |
L,2L..LN5#,6# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
L,2L..LN50,51,55,56,60,61,65 L=15,OD=5 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54020 |
L,2L..LN5#,6# |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-54010 |
L,2L..LN5#,6# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59025 |
L,2L..LN5#,6# |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13613-54020 |
L,2L..LN5#,6# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-54010 |
L,2L..LN5#,6# |
4 | ||
| 13711-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02065 |
1Y#,2Y,3Y,4Y#..YN5#,6# |
8 | ||
| 90913-02060 |
L,2L..LN5#,6# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02065 |
1Y#,2Y,3Y,4Y#..YN5#,6# |
8 | ||
| 90913-02060 |
L,2L..LN5#,6# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LN5#,6# |
8 | ||
| 90501-47005 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-44002 |
L,2L..LN5#,6# |
8 | ||
| 90501-47005 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
L,2L..LN5#,6# |
8 | ||
| 90201-21002 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-20579 |
L,2L..LN5#,6# |
8 | ||
| 90201-21002 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 13715-54010 |
L,2L..LN5#,6# |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L,2L..LN5#,6# |
8 | ||
| 13741-63010 |
1Y#,2Y,3Y,4Y..YN5#,6# INTAKE |
4 | ||
| 13740-43010 |
1Y#,2Y,3Y,4Y..YN5#,6# EXHAUST |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54010 |
L,2L..LN5#,6# |
8 | ||
| 13741-63010 |
1Y#,2Y,3Y,4Y..YN5#,6# INTAKE |
4 | ||
| 13740-43010 |
1Y#,2Y,3Y,4Y..YN5#,6# EXHAUST |
4 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03016 |
L,2L..LN5#,6# |
16 | ||
| 90913-03014 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03016 |
L,2L..LN5#,6# |
16 | ||
| 90913-03014 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 13801-54020 |
L,2L..LN5#,6# |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LN5#,6# |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
L,2L..LN5#,6# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
L,2L..LN50,51,55,56,60,61,65 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
L,2L..LN50,51,55,56,60,61,65 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16068 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 90501-16163 |
L,2L..LN50,51,55,56,60,61,65 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-54020 |
L,2L..LN5#,6# |
4 | ||
| 13812-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 13901-54010 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54020 |
L,2L..LN50,51,55,56,60,61,65 |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-54020 |
L,2L..LN50,51,55,56,60,61,65 |
2 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90119-08191 |
L,2L..LN50,51,55,56,60,61,65 *8-1.25PX55-30 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 91611-60620 |
L,2L..LN50,51,55,56,60,61,65 |
2 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90105-10061 | ||||
| 90109-08021 | ||||
| 90119-14036 | ||||
| 90201-08001 | ||||
| 90201-09562 | ||||
| 91611-60850 | ||||

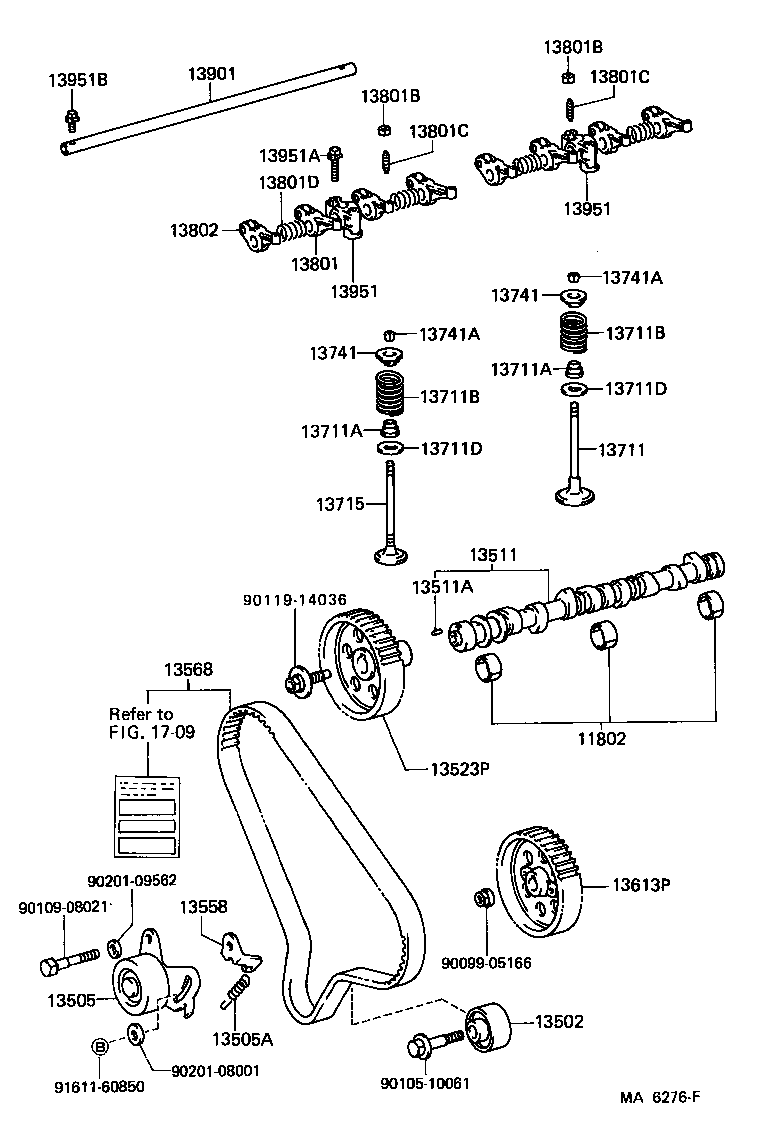

| Linked diagrams | ||||
| 1709 | ||||
