YN65L-KDV (1983)
Toyota Hilux
(8308-9201)LN65,YN60,62,65,67..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-35040 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-35030 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18007 |
LN60,65,67,RN67,YN60,62,65,67 L=56 |
4 | ||
| 90385-18046 |
LN60,65,67,RN67,YN60,62,65,67 L=37 |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18007 |
LN60,65,67,RN67,YN60,62,65,67 L=56 |
4 | ||
| 90385-18046 |
LN60,65,67,RN67,YN60,62,65,67 L=37 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18046 |
LN60,65,67,RN67,YN60,62,65,67 |
4 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-35110 |
LN60,65,67,RN67,YN60,62,65,67 LH |
1 | ||
| 48304-35100 |
LN60,65,67,RN67,YN60,62,65,67 RH |
1 | ||
| 48336 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-29045 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-35040 |
LN60,65,RN67,YN60,62,65,67 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48411-35040 |
LN60,65,RN67,YN60,62,65,67 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-35040 |
LN60,65,RN67,YN60,62,65,67 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-35040 |
LN60,65,RN67,YN60,62,65,67 |
1 | ||
| 48505 - SEAT, FRONT SPRING, RH | ||||
| 48471-35010 |
LN60,65,67,RN67,YN60,62,65,67 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-14214 |
LN60,65,YN60,62,65,67 L=152 |
2 | ||
| 90118-14213 |
LN60,65,YN60,62,65,67 L=188 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-14214 |
LN60,65,YN60,62,65,67 L=152 |
2 | ||
| 90118-14213 |
LN60,65,YN60,62,65,67 L=188 |
2 | ||
| 48506 - SEAT, FRONT SPRING, LH | ||||
| 48472-35020 |
LN60,65,67,RN67,YN60,62,65,67 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39455 |
LN6#,YN6#..EUR,GEN,ME |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LN6#,RN61,YN6# T=15 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LN6#,RN61,YN6# T=15 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LN6#,RN61,YN6# ID=10.5 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LN6#,RN61,YN6# ID=10.5 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
LN6#,YN6# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39455 |
LN6#,YN6#..EUR,GEN,ME |
1 | ||
| 48770 - ROD SUB-ASSY, TORQUE | ||||
| 48760-35020 |
LN60,65,67,RN67,YN60,62,65,67 |
1 | ||
| 48775 - BUSH, TORQUE ROD | ||||
| 48725-35010 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| Common parts | ||||
| 90101-16398 | ||||
| 91162-71260 | ||||
| 91615-60818 | ||||
| 91616-40825 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94115-51600 | ||||
| 94120-41000 | ||||
| 94180-40800 | ||||
| 94182-11000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||

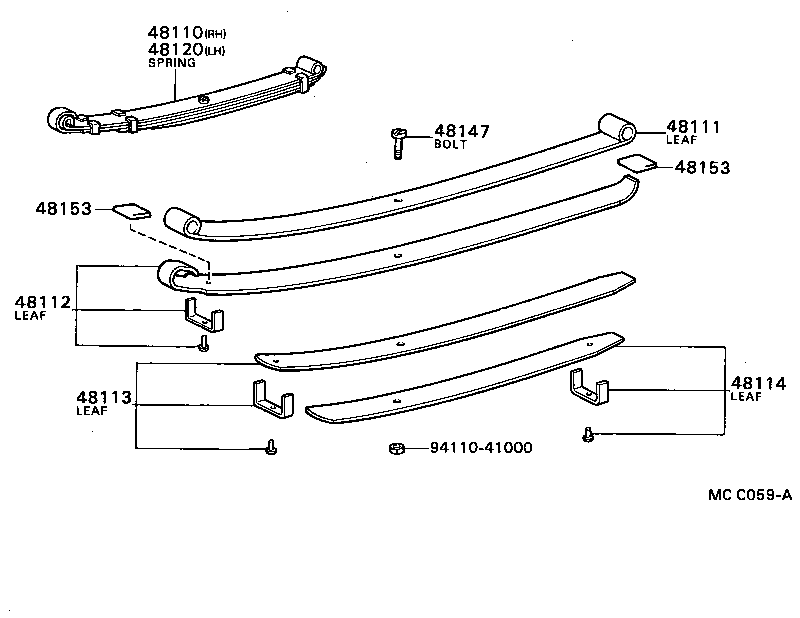

(8308- )LN60,65,67,RN67,YN60,62,65,67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-35121 |
YN6# |
1 | ||
| 48110-35120 |
YN6# |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-35120 |
YN6# RH |
1 | ||
| 48121-35060 |
LN60,65 LH |
1 | ||
| 48121-35070 |
YN60,62,65,67 LH |
1 | ||
| 48111-35121 |
YN6# RH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-35120 |
YN6# RH |
1 | ||
| 48102-35070 |
YN60,62,65,67 LH |
1 | ||
| 48102-35060 |
LN60,65 LH |
1 | ||
| 48102-35121 |
YN6# RH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48105-35060 |
LN60,65 LH |
1 | ||
| 48103-35121 |
YN6# RH |
1 | ||
| 48103-35120 |
YN6# RH |
1 | ||
| 48103-35070 |
YN60,62,65,67 LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48104-35121 |
YN6# RH |
1 | ||
| 48104-35070 |
YN60,62,65,67 LH |
1 | ||
| 48104-35120 |
YN6# RH |
1 | ||
| 48104-35060 |
LN60,65 LH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48120-35060 |
LN60,65 |
1 | ||
| 48120-35070 |
YN60,62,65,67 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-35040 |
LN60,65,67,RN67,YN60,62,65,67 |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
