YN63RG-MSQ (1985)

Toyota Hilux

Production Aug 1985 - Mar 1989
Engine 4Y 4YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

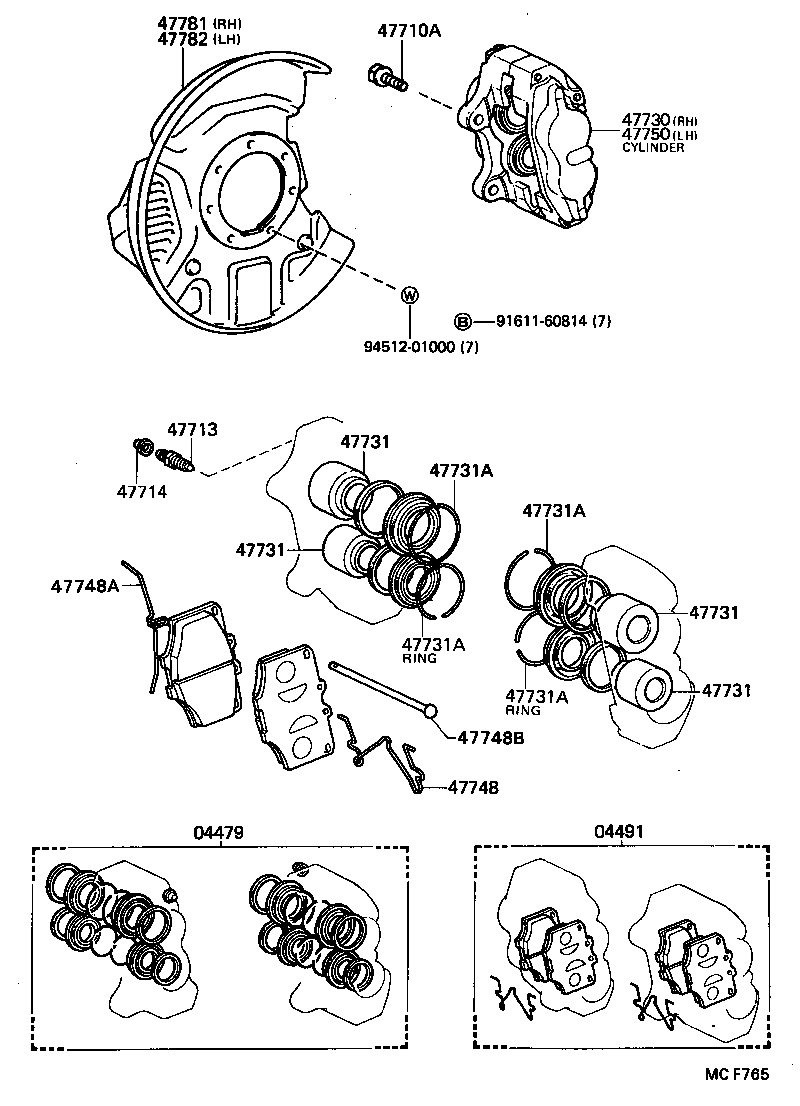

ILLUST NO. 1 OF 2(8508-8903)LN61,RN61,YN63

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47750 47781 47782 9161160814 9451201000
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

LN60,61,65,RN6#,YN6#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-60010

LN61,YN63

 1
04491-35100

LN61,YN63

 1
04491-35101

LN61,YN63

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12060

LN61,RN61,YN63

*12-1.25PX38-23

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

LN60,61,65,RN6#,YN6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN5#,6#,RN5#,6#,YN5#,6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35010

LN6#,RN67,YN6#

 1
47730-60021

LN61,RN61,YN63

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN60,61,65,RN6#,YN6#

OD=42.82

 4
47732-30010

LN60,61,65,RN6#,YN6#

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN60,61,65,RN6#,YN6#

PISTON OD=42.82

 4
90522-40043

LN6#,RN6#,YN6#

PISTON OD=33.93

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

LN61,RN61,YN63

 2
47748-30013

LN6#,RN67,YN6#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12003

LN60,61,65,RN6#,YN6#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06006

LN6#,RN67,YN6#

 4
90240-06158

LN61,RN61,YN63

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-60021

LN61,RN61,YN63

 1
47750-35010

LN6#,RN67,YN6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-35030

LN61,RN61,YN63

 1
47703-35020

LN6#,RN67,YN6#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-35020

LN6#,RN67,YN6#

 1
47704-35030

LN61,RN61,YN63

 1
Common parts
91611-60814
94512-01000
