YN63RG-MSQ (1985)
Toyota Hilux

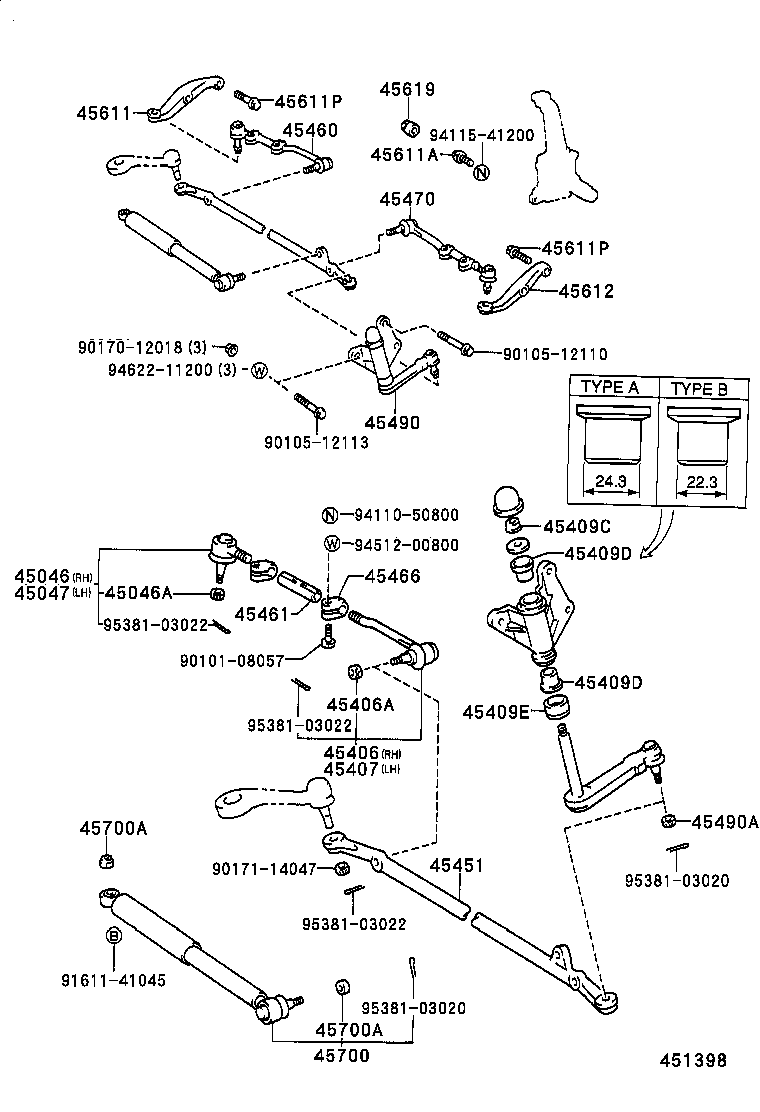

(8508-8903)LN61,RN61,YN63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-35080 |
LN6#,YN6# |
1 | ||
| 45046-29125 |
LN61,RN61,YN63 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29125 |
LN61,RN61,YN63 |
1 | ||
| 45047-35050 |
LN6#,YN6# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39135 |
LN61,RN61,YN63 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LN5#,61,RN5#,61,YN5#,63 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39135 |
LN61,RN61,YN63 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
LN5#,61,RN5#,61,YN5#,63 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LN5#,61,RN5#,61,YN5#,63 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LN5#,61,RN5#,61,YN5#,63 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LN5#,61,RN5#,61,YN5#,63 |
1 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-39025 |
LN61,YN63..ARL |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39245 |
LN61,RN61,YN63 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35030 |
LN61,RN61,YN63 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39055 |
LN61,RN61,YN63 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39255 |
LN61,YN63..ARL |
1 | ||
| 45490-39335 |
LN61,YN63..ARL |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35130 |
LN61,RN61,YN63 |
1 | ||
| 45601-35070 |
LN6#,RN67,YN60,63,65,67..RHD |
1 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
LN61,RN61,YN63 |
4 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
LN61,RN61,YN63 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35150 |
LN61,RN61,YN63 |
1 | ||
| 45612-35130 |
LN6#,RN67,YN60,63,65,67..RHD |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39046 |
LN61,RN61,YN63 |
1 | ||
| 45700-39045 |
LN61,RN61,YN63 |
1 | ||
| 45700-39035 |
LN6#,RN67,YN6# |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94182-10800 |
LN6#,RN67,YN6# HOUSING X DAMPER |
1 | ||
| 94110-41000 |
LN61,RN61,YN63 FRAME X DAMPER |
1 | ||
| 90171-12028 |
LN60,61,65,RN6#,YN6# RELAY ROD OR TIE RODXDAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94182-10800 |
LN6#,RN67,YN6# HOUSING X DAMPER |
1 | ||
| 94110-41000 |
LN61,RN61,YN63 FRAME X DAMPER |
1 | ||
| 90171-12028 |
LN60,61,65,RN6#,YN6# RELAY ROD OR TIE RODXDAMPER |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12018 | ||||
| 90171-14047 | ||||
| 91611-41045 | ||||
| 94110-50800 | ||||
| 94115-41200 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||

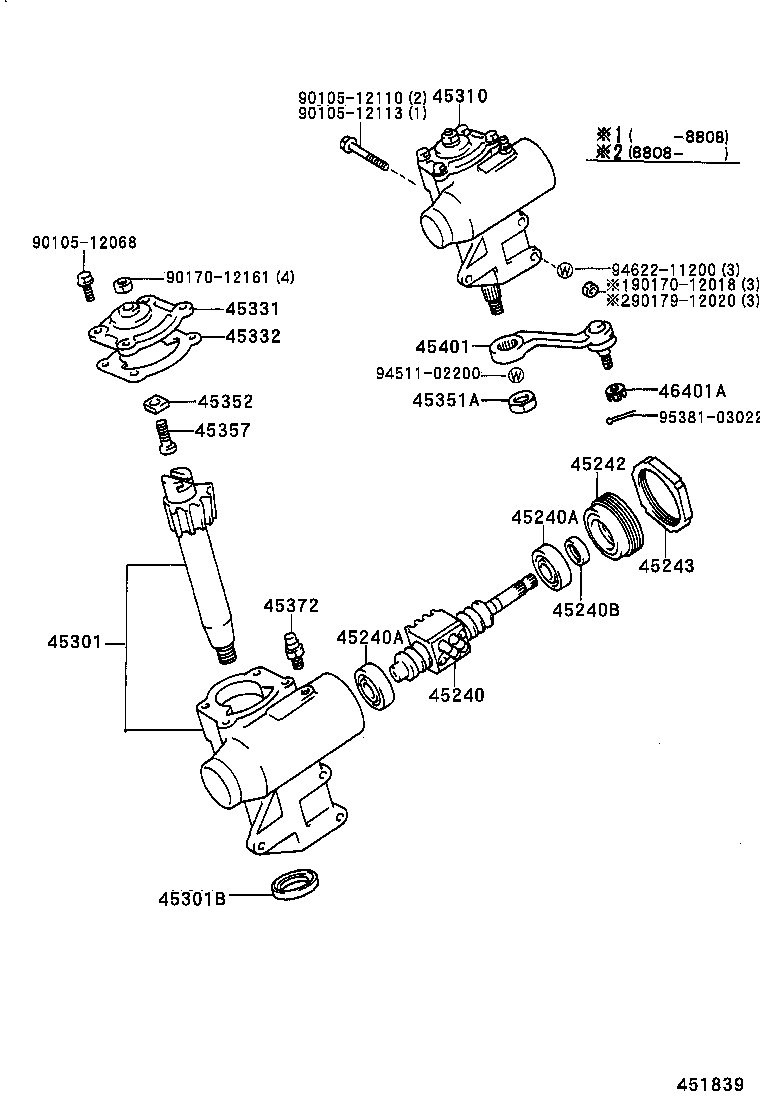

(8508-8903)LN61,YN63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36031 |
LN6#,YN6#..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN6#,YN6# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN6#,YN6# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LN6#,YN6# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-60020 |
LN61,YN63 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35180 |
LN61,YN63..ARL |
1 | ||
| 45301-35110 |
LN6#,YN6#..RHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-36001 |
LN61,YN63 |
1 | ||
| 90311-36004 |
LN61,YN63 |
1 | ||
| 90310-36002 |
LN61,YN63 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35170 |
LN6#,YN6#..RHD |
1 | ||
| 45310-35190 |
LN61,YN63..ARL |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-26010 |
LN61,YN63 NO.1 |
1 | ||
| 45304-36020 |
LN6#,YN6# |
1 | ||
| 45304-26040 |
LN61,YN63 NO.4 |
1 | ||
| 45304-26020 |
LN61,YN63 NO.2 |
1 | ||
| 45304-26030 |
LN61,YN63 NO.3 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
LN6#,YN6# |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN6#,YN6# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-36010 |
LN6#,YN6# T=2.05,T=2.05 |
1 | ||
| 45352-36010 |
LN6#,YN6# T=2.00,T=2.00 |
1 | ||
| 45355-36010 |
LN6#,YN6# T=2.15,T=2.15 |
1 | ||
| 45356-36010 |
LN6#,YN6# T=2.20,T=2.20 |
1 | ||
| 45354-36010 |
LN6#,YN6# T=2.10,T=2.10 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
LN6#,YN6# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LN6#,YN6# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35120 |
LN6#,YN6#..RHD |
1 | ||
| 45401-35180 |
LN61,YN63..ARL |
1 | ||
| Common parts | ||||
| 90105-12068 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12018 | ||||
| 90170-12161 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||
| 95381-03022 | ||||
