YN60RG-MSQ (1984)
Toyota Hilux
Production
Mar 1984
-
Aug 1985
Engine
3Y 3YC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

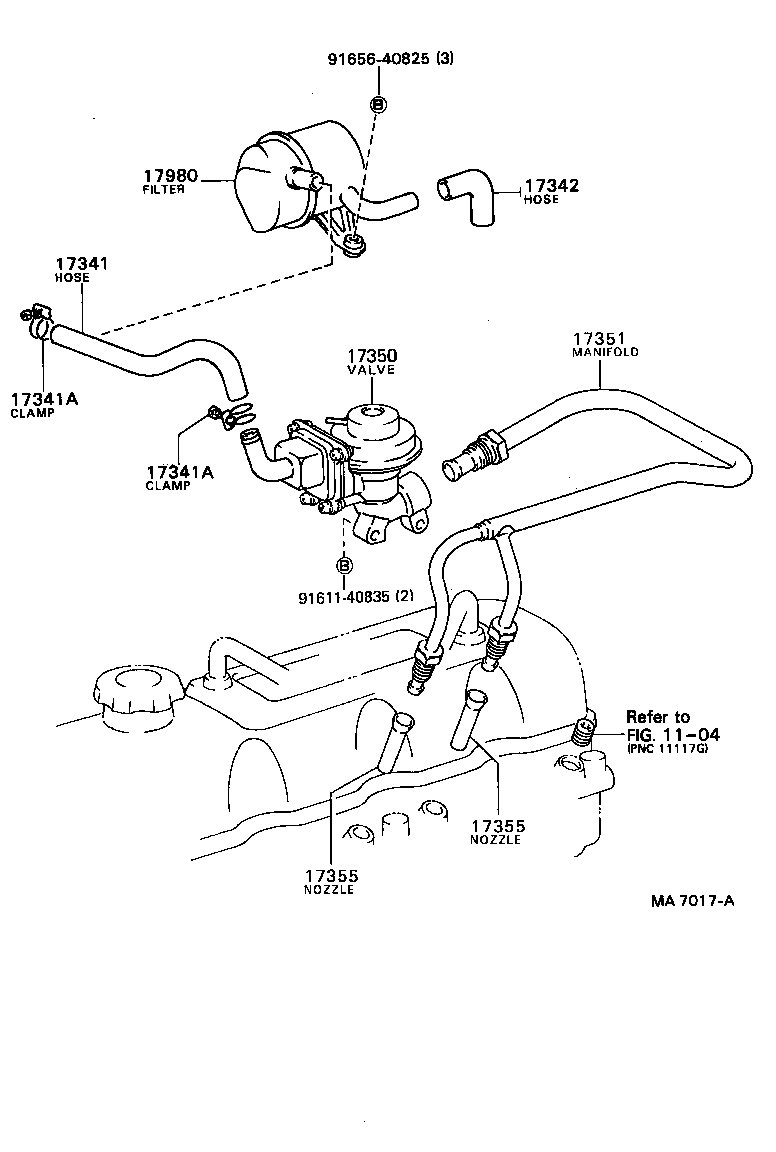

(8308-8508)1YC,3Y..YN55,57,6#..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-71020 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 96111-10300 |
3Y..YN57,6#..ARL *NSW |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 96111-10300 |
3Y..YN57,6#..ARL *NSW |
2 | ||
| 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) | ||||
| 17342-71010 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17350 - VALVE ASSY, REED | ||||
| 17350-71050 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17351-71020 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17355 - NOZZLE, AIR INJECTION | ||||
| 17355-71010 |
3Y,4Y..YN57,60,63,65,67..ARL *NSW |
3 | ||
| 17355 - NOZZLE, AIR INJECTION | ||||
| 17355-71010 |
3Y,4Y..YN57,60,63,65,67..ARL *NSW |
3 | ||
| 17980 - FILTER ASSY, AIR SUCTION | ||||
| 17980-71020 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| Common parts | ||||
| 91611-40835 | ||||
| 91656-40825 | ||||
| Linked diagrams | ||||
| 1104 | ||||

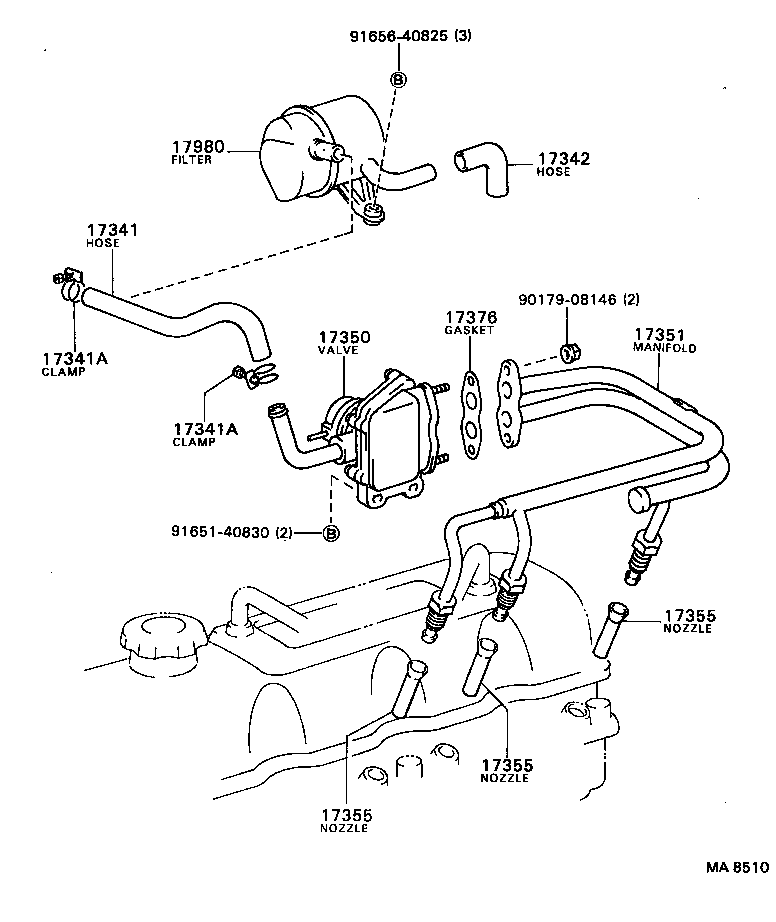

(8308-8508)3Y..YN57,6#..ARL ; (8508-8608)1YC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-71020 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 96111-10300 |
3Y..YN57,6#..ARL *NSW |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 96111-10300 |
3Y..YN57,6#..ARL *NSW |
2 | ||
| 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) | ||||
| 17342-71010 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17350 - VALVE ASSY, REED | ||||
| 17350-71050 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17351-71020 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 17355 - NOZZLE, AIR INJECTION | ||||
| 17355-71010 |
3Y,4Y..YN57,60,63,65,67..ARL *NSW |
3 | ||
| 17355 - NOZZLE, AIR INJECTION | ||||
| 17355-71010 |
3Y,4Y..YN57,60,63,65,67..ARL *NSW |
3 | ||
| 17355 - NOZZLE, AIR INJECTION | ||||
| 17355-71010 |
3Y,4Y..YN57,60,63,65,67..ARL *NSW |
3 | ||
| 17980 - FILTER ASSY, AIR SUCTION | ||||
| 17980-71020 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91651-40830 | ||||
| 91656-40825 | ||||
