YN60LG-MSV (1984)

Toyota Hilux

Production Mar 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)YN57..4F ; (8308-8508)LN50,55,YN56..5F ; (8308-8508)LN51,56,6#,YN52,6#..

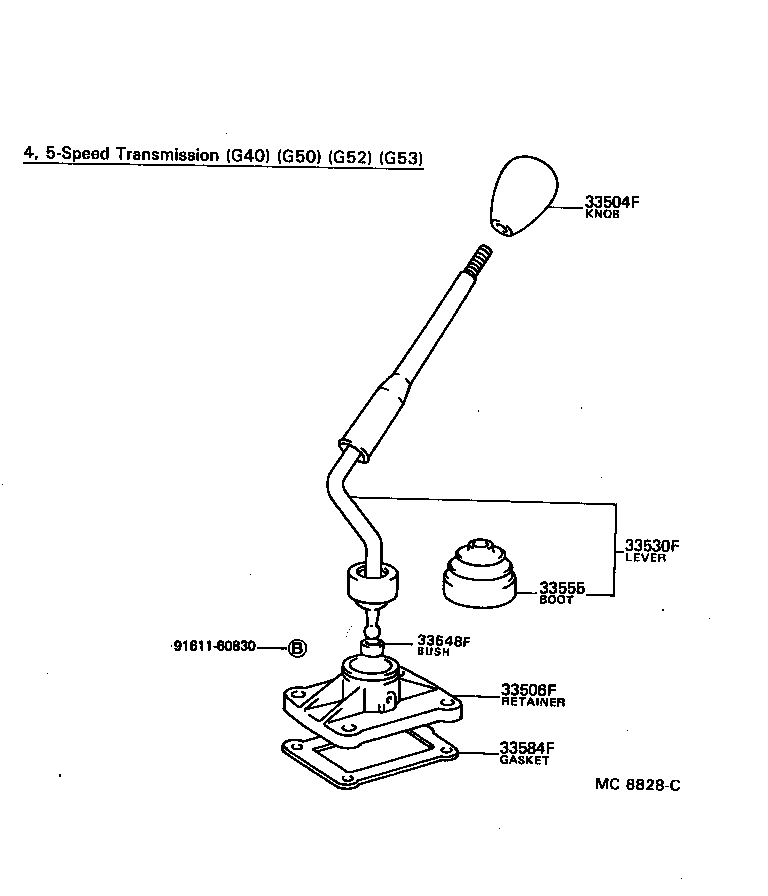

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 33555 33584F 9161160830
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005201

LN6#,YN6#..5F

URETHANE,BLACK

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35070

LN60,61,65,YN6#..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35040

LN6#,YN6#

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

LN6#,YN57,6#;LN50,55,YN56..5F

 1
33555 - BOOT, SHIFT LEVER
33555-35040

LN6#,YN6#;LN5#,YN56..5F

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33105-35010

LN60,61,65,YN6#..MTM

 1
Common parts
91611-60830
