YN57R-PSCQ (1983)

Toyota Hilux

Production Sep 1983 - Aug 1987
Engine 3Y 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)LN56,YN57,58..4FC

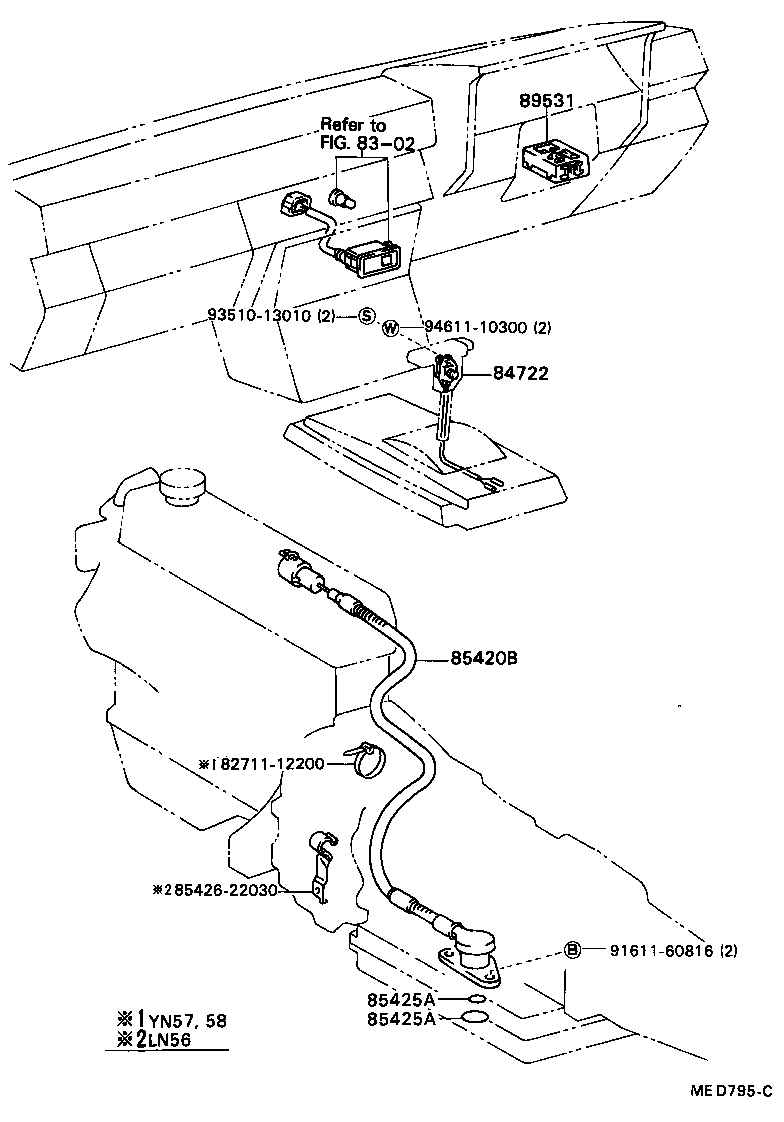

Click highlighted areas on diagram

diagram 8271112200 8302 84722 85420B 85425A 85425A 8542622030 89531 9161160816 9351013010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-35010

LN56,YN57..4FC

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-20050

LN56,YN57..4FC;YN58..4FC..CBU

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

LN56,YN57..4FC;YN58..4FC..CBU

ID=23

 1
90301-11001

LN56,YN57..4FC;YN58..4FC..CBU

ID=11

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

LN56,YN57..4FC;YN58..4FC..CBU

ID=23

 1
90301-11001

LN56,YN57..4FC;YN58..4FC..CBU

ID=11

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-28010

LN56,YN57..4FC;YN58..4FC..CBU

 1
Common parts
82711-12200
85426-22030
91611-60816
93510-13010
94611-10300
Linked diagrams
8302
