YN57R-PSCQ (1983)

Toyota Hilux

Production Sep 1983 - Aug 1987
Engine 3Y 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

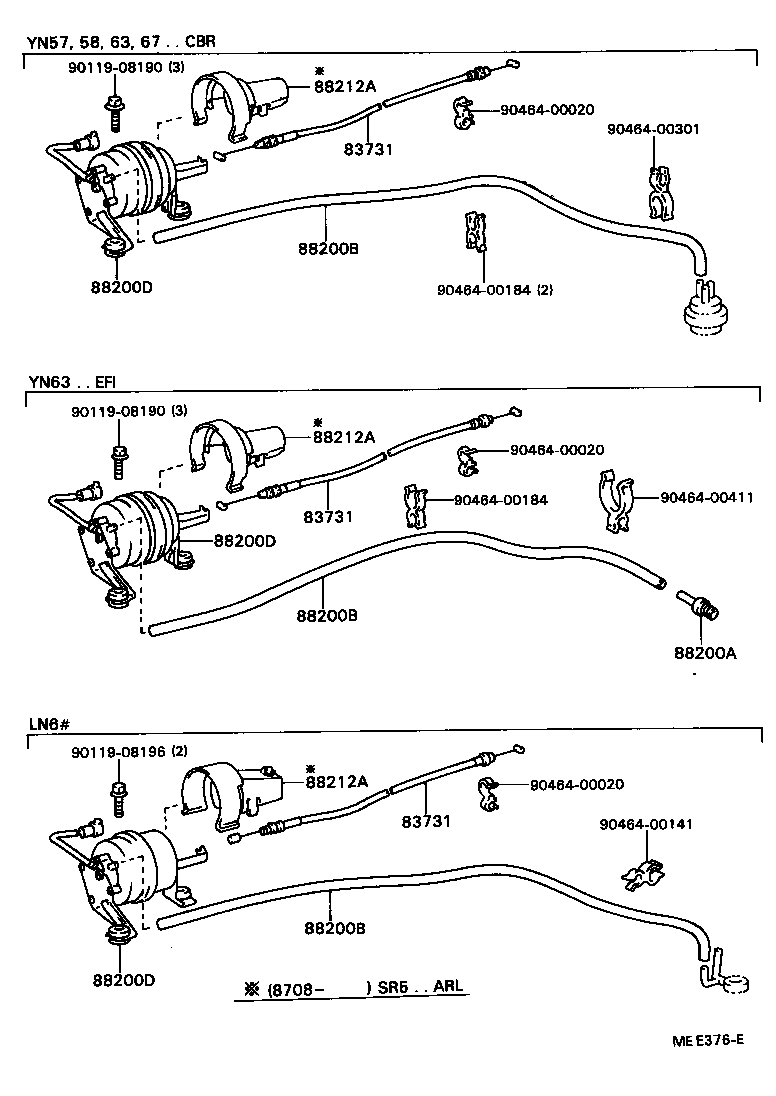

ILLUST NO. 1 OF 2(8403- )LN60,61,65..SR5 ; (8608- )YN57,58,6#..SR5..ARL

Click highlighted areas on diagram

diagram 83731 83731 83731 88200A 88200B 88200B 88200B 88200D 88200D 88200D 88212A 88212A 88212A 9011908190 9011908190 9011908196 9046400020 9046400020 9046400020 9046400141 9046400184 9046400184 9046400301 9046400411
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-35100

YN57,6#..SR5..ARL

 1
83731 - CABLE, CRUISE CONTROL
83731-35100

YN57,6#..SR5..ARL

 1
83731 - CABLE, CRUISE CONTROL
83731-35100

YN57,6#..SR5..ARL

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35080

YN57,6#..SR5..ARL

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35080

YN57,6#..SR5..ARL

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35080

YN57,6#..SR5..ARL

 1
Common parts
90119-08190
90119-08196
90464-00020
90464-00141
90464-00184
90464-00301
90464-00411

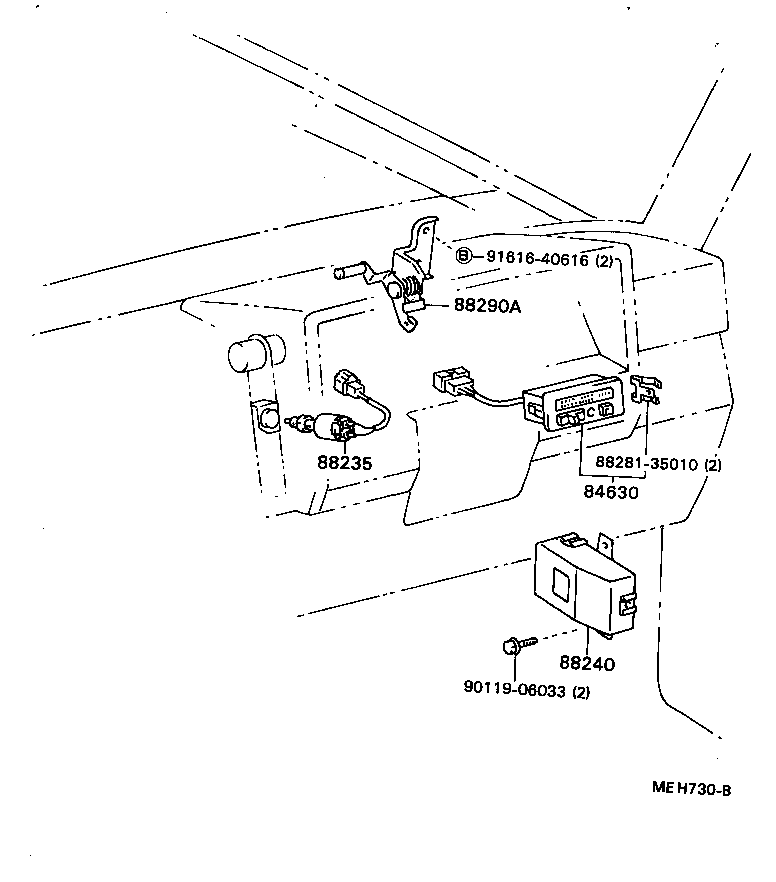

ILLUST NO. 2 OF 2(8403- )LN60,61,65..SR5 ; (8608- )YN57,58,6#..SR5..ARL

Click highlighted areas on diagram

diagram 84630 88235 88240 8828135010 88290A 9011906033 9161640616
Part # Description Qty Price
Common parts
88281-35010
90119-06033
91616-40616
