YN57R-PSCQ (1983)
Toyota Hilux
(8309-8608)YN57..SR5..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-35030 |
YN57..SR5..ARL |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-35030 |
YN57..SR5..ARL |
1 | ||
| 47190-35020 |
YN57..SR5..ARL |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35290 |
YN57..SR5..ARL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35420 |
YN57..SR5..ARL |
1 | ||
| 47312-35680 |
YN57..SR5..ARL |
1 | ||
| 47312-35730 |
YN57..SR5..ARL |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10108 |
YN57..SR5..ARL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35470 |
YN57..SR5..ARL |
1 | ||
| 47313-35300 |
YN57..SR5..ARL |
1 | ||
| 47313-35500 |
YN57..SR5..ARL |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02447 |
YN57..SR5..ARL |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02447 |
YN57..SR5..ARL |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34305 |
LN5#,YN5# |
1 | ||
| 96940-34305 |
LN5#,YN50,55,56,57..ARL,EUR,SA |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35380 |
YN57..SR5..ARL |
1 | ||
| 47321-35230 |
YN57..SR5..ARL |
1 | ||
| 47321-35430 |
YN57..SR5..ARL |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10152 |
LN5#,YN5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35200 |
YN57..SR5..ARL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35130 |
YN57..SR5..ARL |
1 | ||
| 47324-35070 |
YN57..SR5..ARL |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35080 |
YN57..SR5..ARL |
1 | ||
| 47325-35140 |
YN57..SR5..ARL |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47321-35080 |
YN57..SR5..ARL |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35090 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35130 |
YN57..SR5..ARL |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35110 |
YN57..SR5..ARL |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-35070 |
YN57..SR5..ARL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35030 |
LN5#,RN58,YN50,51,55,56,57,58..RHD SIDE RAIL SIDE |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35010 |
LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD DASH DANEL SIDE |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35010 |
YN58..4F;YN58..T1..(SR5,STD);RN50,55,YN50,51,52,55,56,57..(RCB,XTR)..(4F,4FC,4H,5F) |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 91611-40812 | ||||
| 91611-40840 | ||||
| 91611-60814 | ||||
| 91616-40820 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||

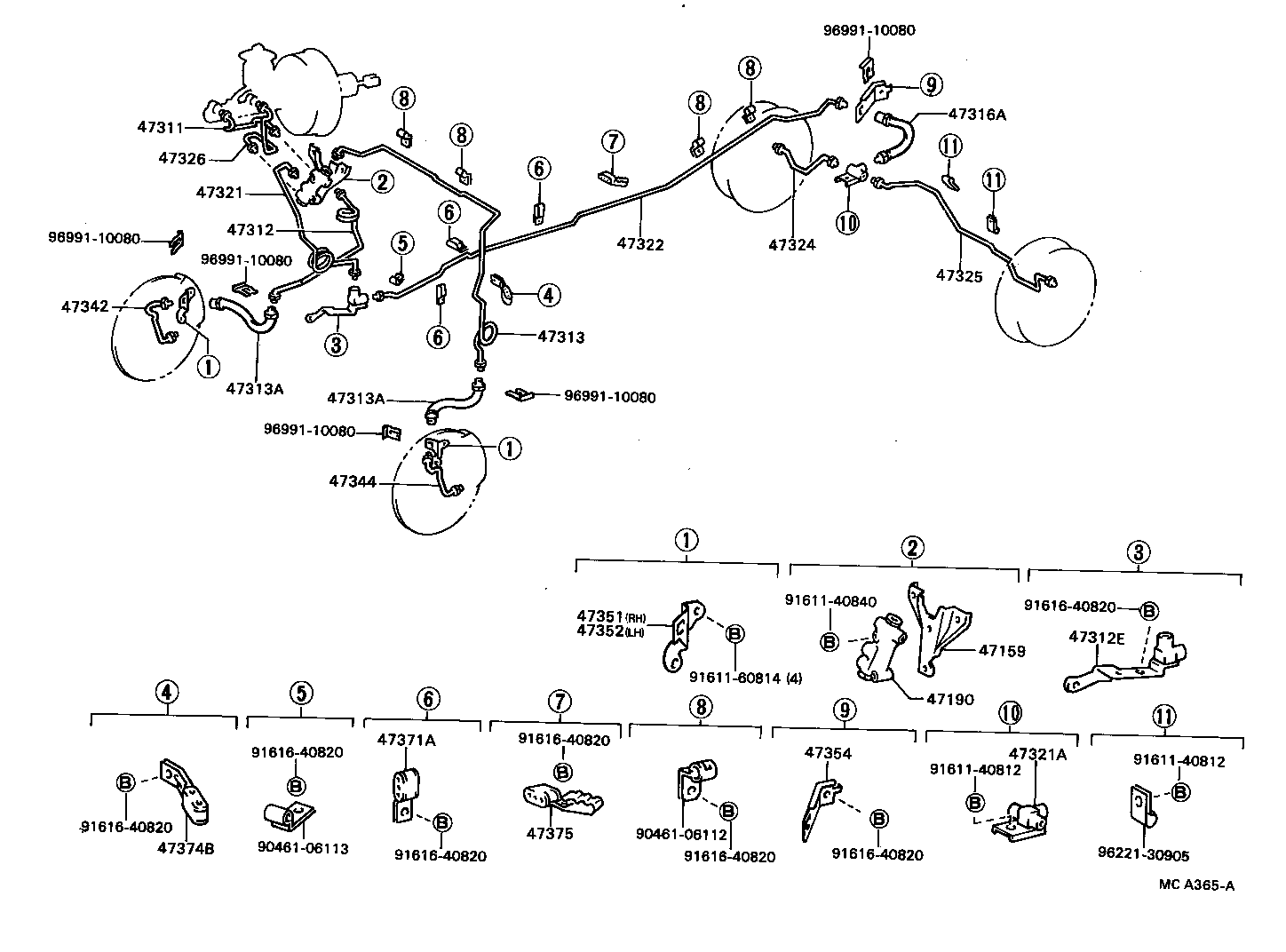

ILLUST NO. 3 OF 3(9708-0108) ; (0108- )LN152..IV3 ; (0108-)KDN190..DCB ; (0108- )LN147,152
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B11 | ||||
| 90170-08016 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91641-H0820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
