YN57R-PSCQ (1983)
Toyota Hilux
Production
Sep 1983
-
Aug 1987
Engine
3Y 3YC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

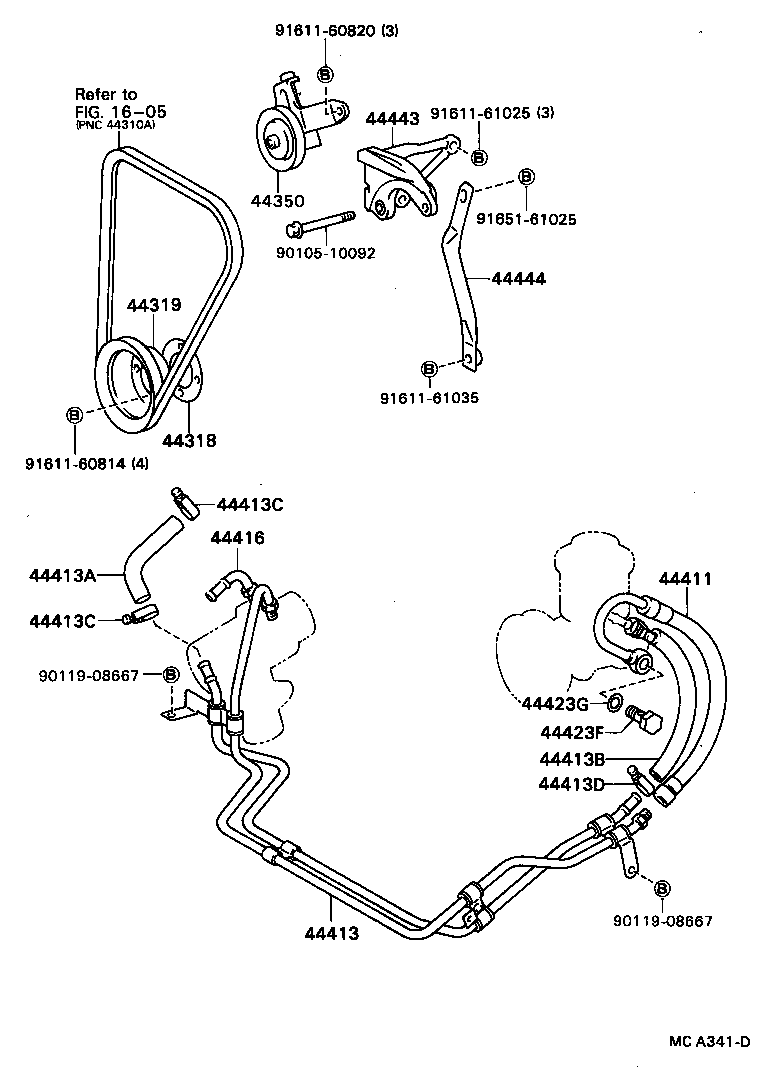

(8308-8508)YN6#..SR5..ARL ; (8309- )YN57,58..SR5..ARL ; (8508- )YN63,67..DLX,
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YN57..SR5..ARL |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YN57..SR5..ARL |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YN57,58..SR5..ARL |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35070 |
YN57..SR5..ARL |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-35050 |
YN57,58..SR5..ARL |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18079 |
YN57,58..SR5..ARL |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90445-18096 |
YN57..SR5..ARL |
1 | ||
| 90447-18025 |
YN57..SR5..ARL |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
YN57,58..SR5..ARL |
2 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
YN57,58..SR5..ARL |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
YN57,58..SR5..ARL |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35040 |
YN57,58..SR5..ARL |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16005 |
YN57..SR5..ARL |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
YN57,58..SR5..ARL |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
YN57,58..SR5..ARL |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YN57,58..SR5..ARL |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90119-08667 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||

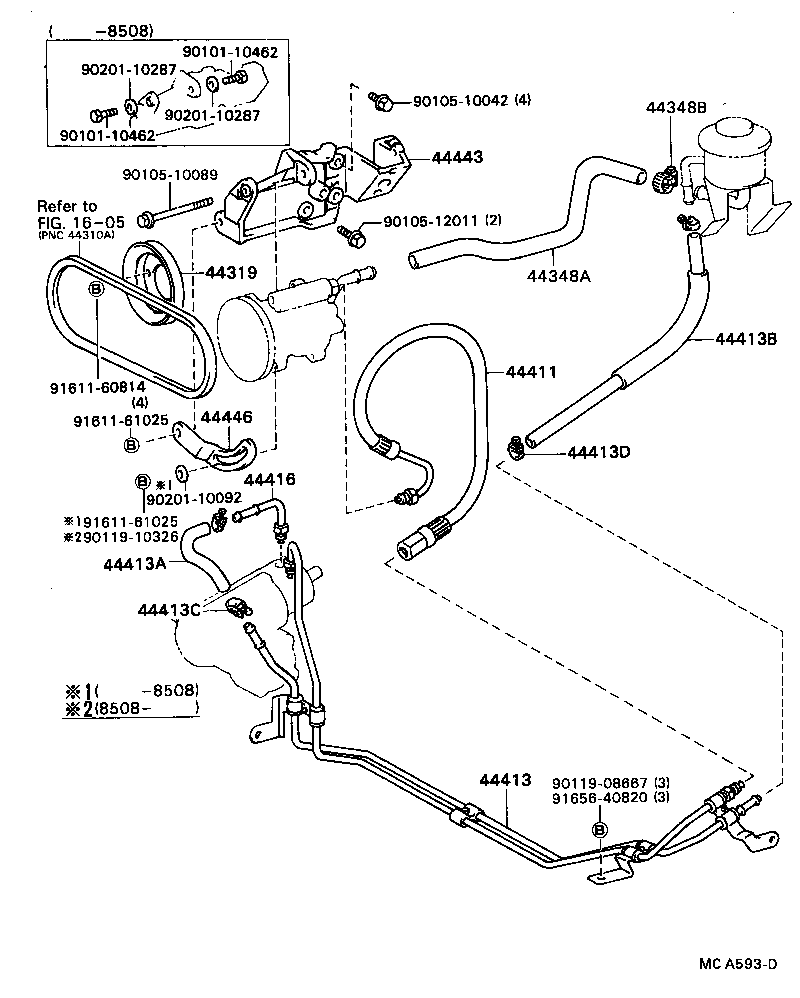

(8403-8508)LN60..ARL ; (8508- )LN61 ; (8508-)LN65..RHD..EUR,GEN ; (9508-
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YN57..SR5..ARL |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35070 |
YN57..SR5..ARL |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-35050 |
YN57,58..SR5..ARL |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18079 |
YN57,58..SR5..ARL |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90445-18096 |
YN57..SR5..ARL |
1 | ||
| 90447-18025 |
YN57..SR5..ARL |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
YN57,58..SR5..ARL |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
YN57,58..SR5..ARL |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35040 |
YN57,58..SR5..ARL |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
YN57,58..SR5..ARL |
1 | ||
| Common parts | ||||
| 90101-10462 | ||||
| 90105-10042 | ||||
| 90105-10089 | ||||
| 90105-12011 | ||||
| 90119-08667 | ||||
| 90119-10326 | ||||
| 90201-10092 | ||||
| 90201-10287 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
