YN57R-PSCQ (1983)
Toyota Hilux
(8308-8508)1YC ; (8308- )3Y..YN57,60,65..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71080 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 17303-73020 |
3Y..YN57..4FC *NSW |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05017 |
3Y..YN57,60,65..ARL *NSW |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
1 | ||
| 90917-11024 |
3Y,4Y..YN57,63,65,67..ARL *NSW |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03152 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 90925-03166 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
3Y..YN57,60,65..ARL *NSW |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
3Y..YN57..4FC *NSW |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01021 |
3Y..YN57,6#..ARL |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 90925-02077 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 25820-37010 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8308-8508)1Y,3Y..ARL,GEN,ME,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
1 | ||
| 90917-11024 |
3Y,4Y..YN57,63,65,67..ARL *NSW |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
3Y..YN57,60,65..ARL *NSW |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01021 |
3Y..YN57,6#..ARL |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00080 | ||||
| 90464-00240 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
(8508-8608)1Y,3Y,4Y..YN50,52,55,57,60,62,63,67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
1 | ||
| 90917-11024 |
3Y,4Y..YN57,63,65,67..ARL *NSW |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71011 |
1YC,3Y,4Y..YN55,57,6#..ARL |
1 | ||
| Common parts | ||||
| 90445-14109 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90464-00080 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90964-00065 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8508-8708)3Y..YN57..4FC..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71080 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 17303-73020 |
3Y..YN57..4FC *NSW |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
1 | ||
| 90917-11024 |
3Y,4Y..YN57,63,65,67..ARL *NSW |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03152 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| 90925-03166 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03165 |
3Y..YN57..4FC..ARL *NSW |
1 | ||
| 23276B - HOSE(FOR VACUUM CONTROL VALVE) | ||||
| 90445-11019 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 90925-02077 |
1YC,3Y,4Y..YN55,57,63,67..ARL *NSW |
1 | ||
| 25820-37010 |
3Y..YN57,6#..ARL *NSW |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90467-13007 | ||||
| 90929-01116 | ||||
| 90929-01117 | ||||
| 90999-92002 | ||||
| 91616-40820 | ||||
| 91651-40814 | ||||
(8608-8708)3Y,4Y..YN57,6#..ARL ; (8608-8808)1Y,2Y,3Y..YN50,51,55,56,57..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05017 |
3Y..YN57,60,65..ARL *NSW |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1YC,3Y,4Y..YN55,57,6#..ARL *NSW |
1 | ||
| 90917-11024 |
3Y,4Y..YN57,63,65,67..ARL *NSW |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71011 |
1YC,3Y,4Y..YN55,57,6#..ARL |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90464-00080 | ||||
| 90464-00082 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06204 | ||||
| 90413-04008 | ||||
| 90445-08331 | ||||
| 90447-04027 | ||||
| 90447-04056 | ||||
| 90464-00369 | ||||
| 90929-01366 | ||||
| 90929-01386 | ||||
| 90999-92002 | ||||
| 91611-B0616 | ||||
| 91621-40812 | ||||
| 91622-61014 | ||||
| 95413-40033 | ||||
| 95413-49933 | ||||
| 95413-49936 | ||||

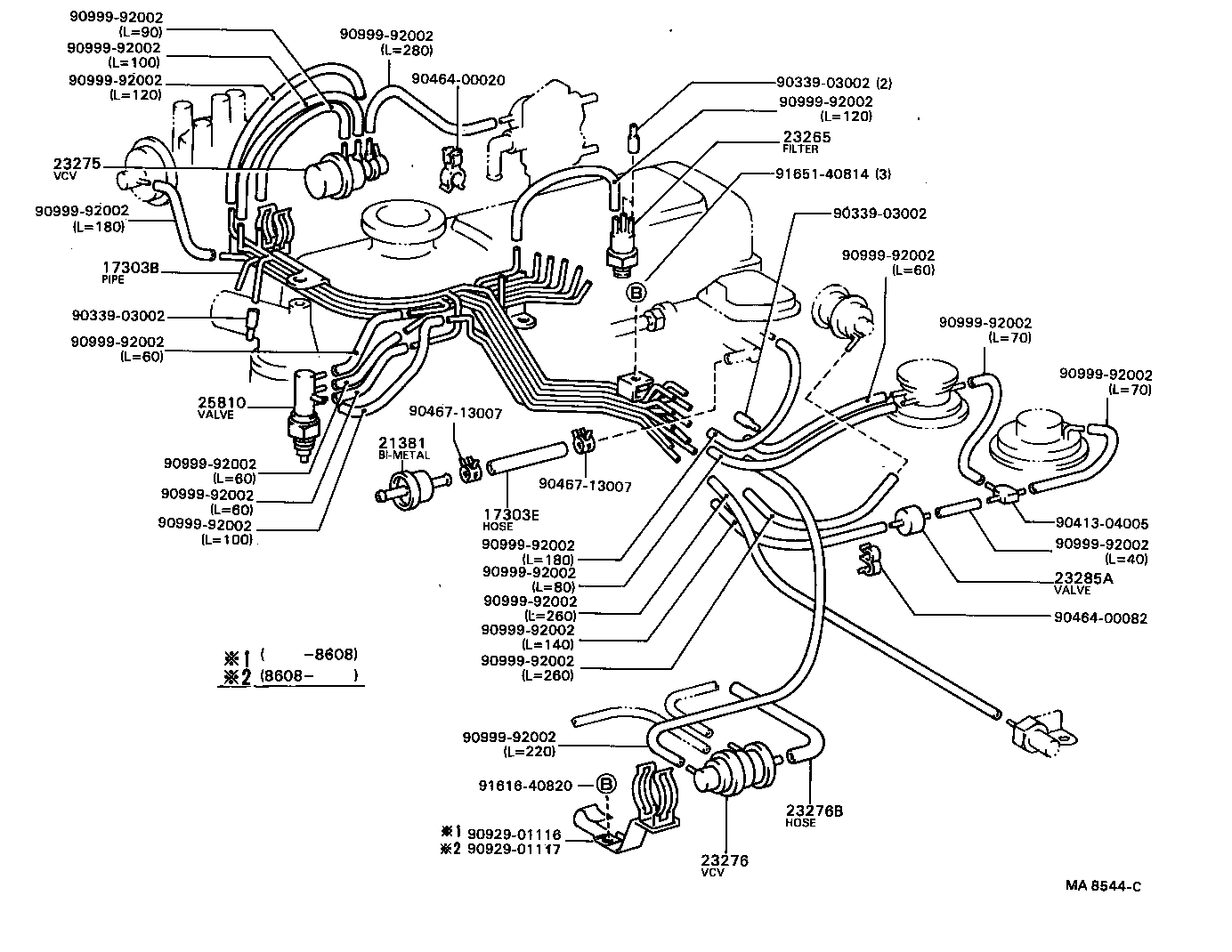

| Linked diagrams | ||||
| 2606 | ||||
| 4301 | ||||
