YN57R-PRQ3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1987
Engine 3Y 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8308- )LN56,YN57,58..4FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22030

LN56,YN57..4FC

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-40010

LN56,YN57,58..4FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

LN56,YN57,58,63..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

LN56,YN57..4FC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

LN56,YN57,58..4FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-26010

LN56,YN57,58..4FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

LN56,YN57,58,63..4FC

 1
35557 - PAWL, PARKING LOCK
35557-26010

LN56,YN57,58..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21001

LN56,YN57..4FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

LN56,YN57,58..4FC

 1
35585 - ROD, PARKING LOCK
35501-26020

LN56,YN57..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

LN56,YN57,58..4FC

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

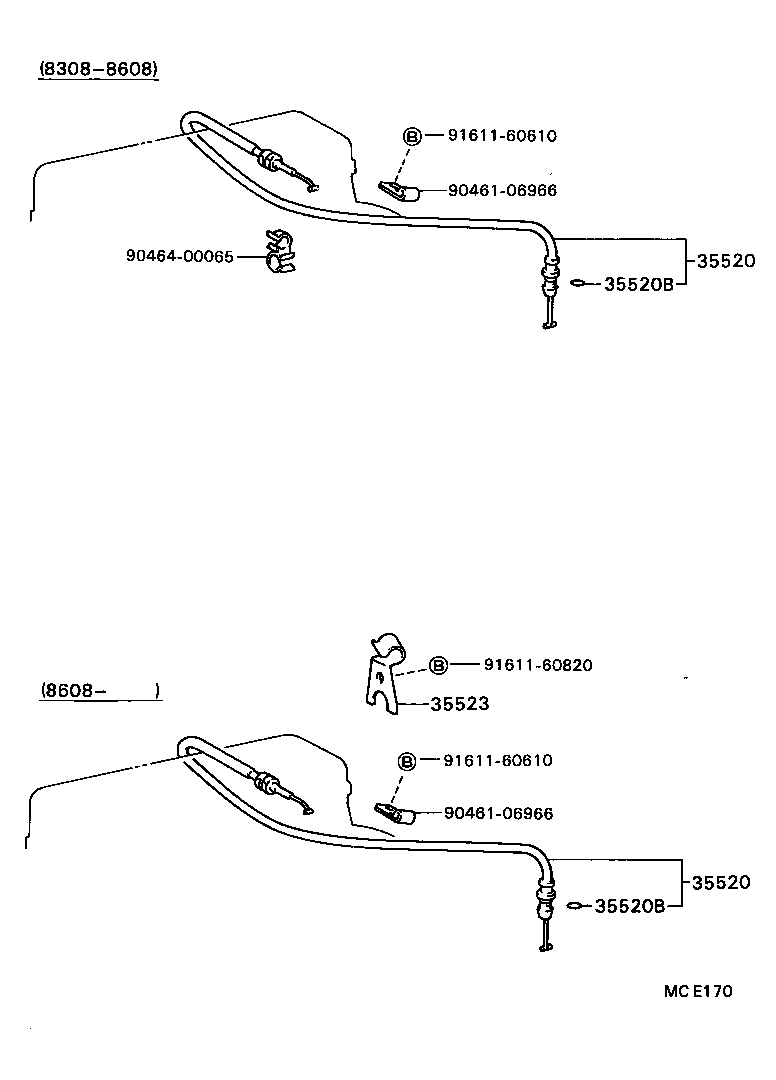

ILLUST NO. 2 OF 2(8308- )YN57,58..4FC

Click highlighted areas on diagram

diagram 35520 35520 35520B 35520B 35523 9046106966 9046106966 9046400065 9161160610 9161160610 9161160820
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-30030

YN57,58..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-30030

YN57,58..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09004

LN56,YN57,58,63..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09004

LN56,YN57,58,63..4FC

 1
Common parts
90461-06966
90464-00065
91611-60610
91611-60820
