YN57R-PRQ3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1987
Engine 3Y 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4FC

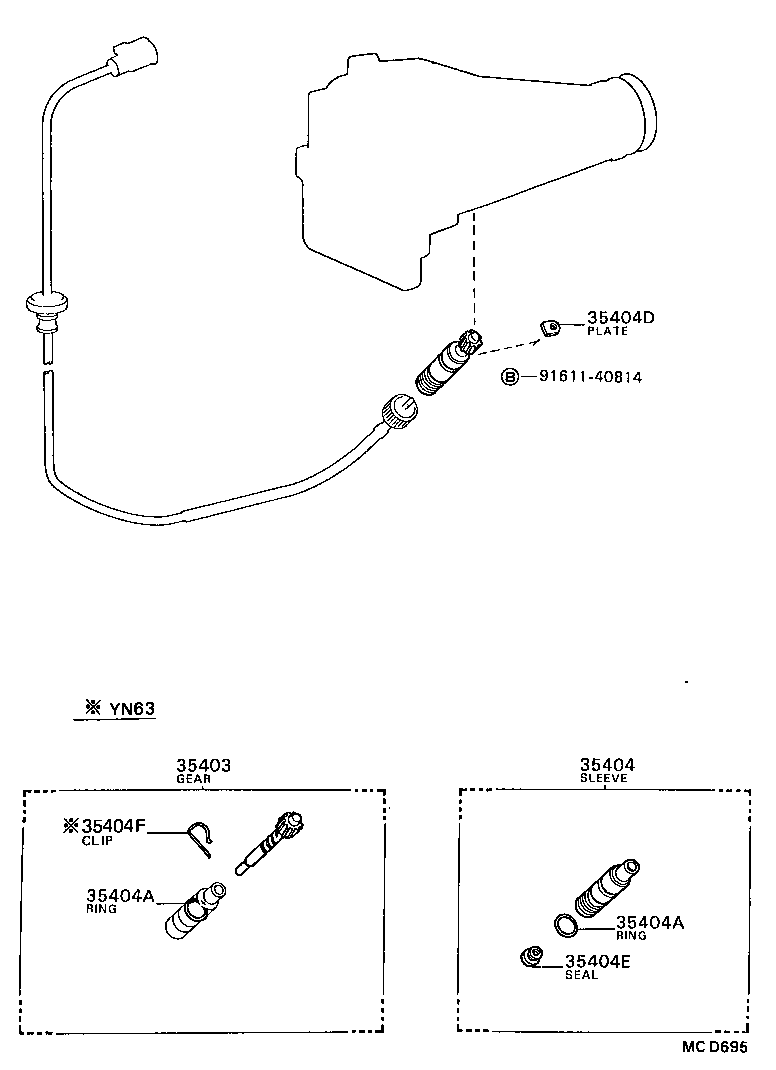

Click highlighted areas on diagram

diagram 35403 35404 35404A 35404A 35404D 35404E 35404F 9161140814
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39016

YN57,58..4FC..STD

N=18

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-30040

LN56,YN57,58..4FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN56,YN57..4FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN56,YN57..4FC

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

LN56,YN57,58,63..4FC

 1
35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LN56,YN57,58,63..4FC

 1
Common parts
91611-40814
