YN57R-MRQ (1983)

Toyota Hilux

Production Aug 1983 - Aug 1987
Engine 3Y 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)YN57..5F

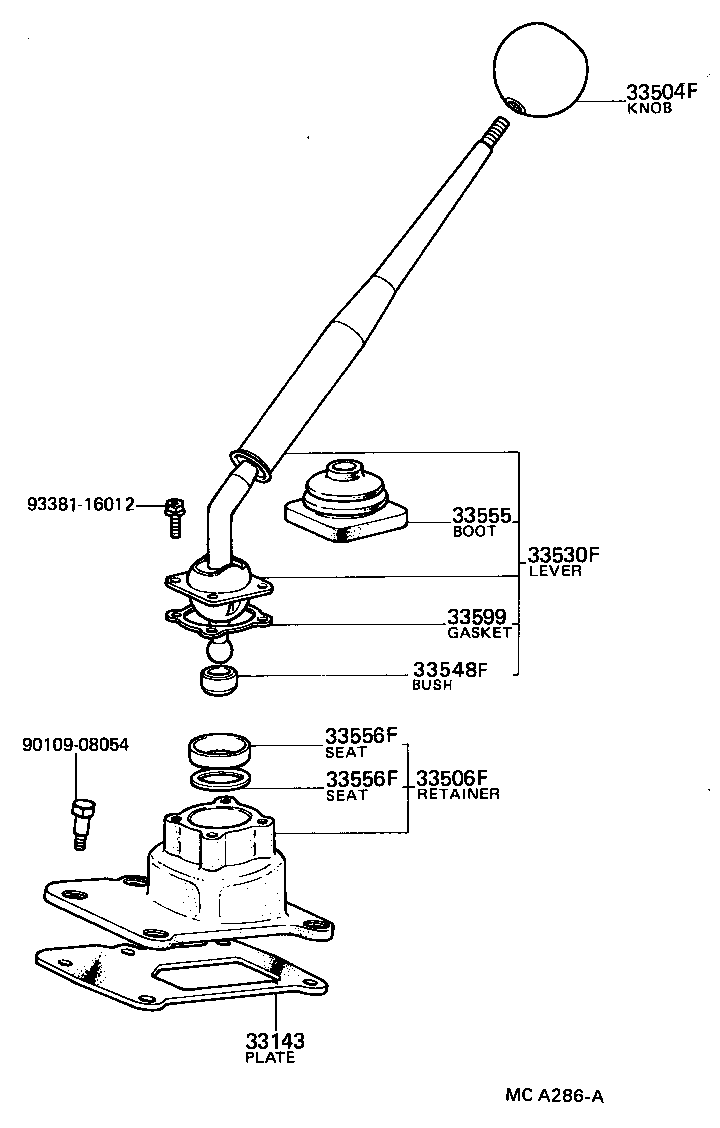

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555 33556F 33556F 33599 9010908054 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-20031

YN57..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005201

YN57..STD..ARL

URETHANE,BLACK

 1
33504-2005201

LN55..SR5;YN57..RHD..5F;LN55,YN56..EUR,SA

URETHANE,BLACK

 1
33504-2211101

LN5#,YN56,57..5F..(DLX,STD)..(ARL,EUR,GEN,SA)

BLACK

 1
33504-2005201

LN56,YN57..STD..ARL;LN56..LHD..RCB..EUR..CBU

URETHANE,BLACK

 1
33504-2211101

LN5#,YN56,57..5F..(DLX,STD)

BLACK

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-35010

YN57..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35030

YN57..RHD..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

LN6#,YN57,6#;LN50,55,YN56..5F

 1
33555 - BOOT, SHIFT LEVER
33555-31011

YN57..5F

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20010

YN57..5F

T=3.0

 1
33556-22010

YN57..5F

T=6.5

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20010

YN57..5F

T=3.0

 1
33556-22010

YN57..5F

T=6.5

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-31020

YN57..5F

 1
Common parts
90109-08054
93381-16012
