YN57R-MRQ (1983)
Toyota Hilux
(8308- )1Y#,2Y#,3Y,4Y,4YC

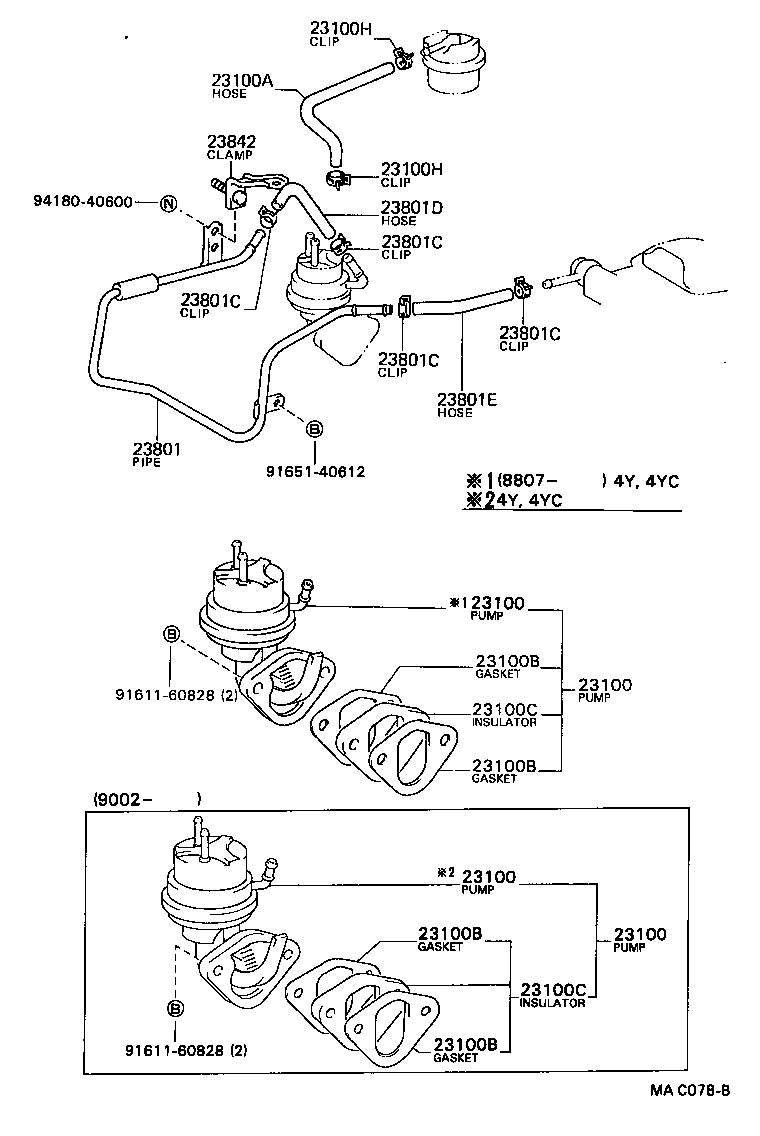

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-79025 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-79025 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-79025 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-79025 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95333-06030 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 90447-12023 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 95332-06030 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
1Y#,2Y,3Y,4Y..YN5#,6# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
1Y#,2Y,3Y,4Y..YN5#,6# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
1Y#,2Y,3Y,4Y..YN5#,6# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
1Y#,2Y,3Y,4Y..YN5#,6# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
1Y#,2Y,3Y,4Y..YN5#,6# |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
4 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95332-06010 |
1Y#,2Y,3Y,4Y..YN5#,6# *H,L=100 |
1 | ||
| 23801E - HOSE, FUEL PIPE, NO.2 | ||||
| 95332-06020 |
1Y#,2Y,3Y..YN5#,6# *H,L=120 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23841-71011 |
1Y#,2Y#,3Y,4Y,4YC..YN5#,6# |
1 | ||
| Common parts | ||||
| 91611-60828 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||
