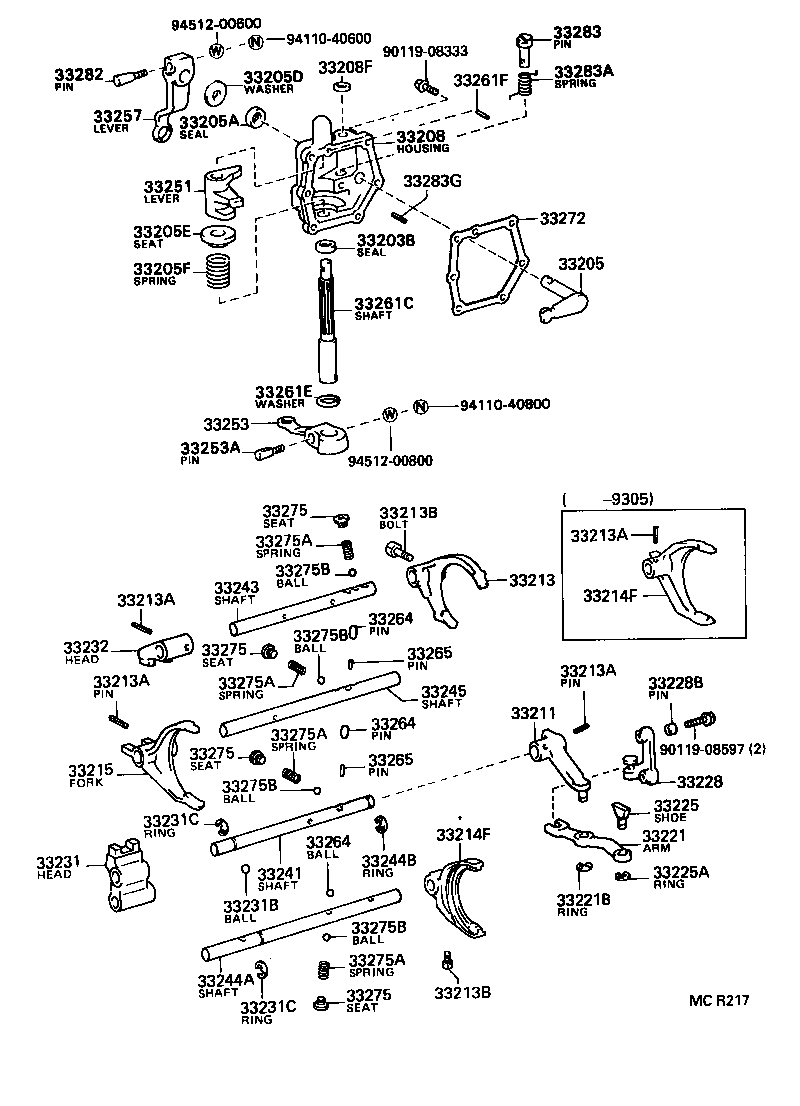

YN56R-QRN (1991)
Toyota Hilux
(9108- )YN51,56..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-28020 |
YN51,56..STD |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
YN51,56..STD |
1 | ||
| 90201-13029 |
YN51,56..STD OD=28 |
1 | ||
| 33205E - SEAT(FOR SELECT RETURN SPRING) | ||||
| 33276-28011 |
YN51,56..STD |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-18044 |
YN51,56..STD |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-35030 |
YN51,56..STD |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 90331-12002 |
YN51,56..STD |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-26030 |
YN51,56..STD |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN67,YN67;LN51,56,65,RN58,YN5#..RCB |
2 | ||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN67,YN67;LN51,56,65,RN58,YN5#..RCB |
2 | ||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN67,YN67;LN51,56,65,RN58,YN5#..RCB |
2 | ||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN67,YN67;LN51,56,65,RN58,YN5#..RCB |
2 | ||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
YN51,56..STD |
2 | ||
| 90105-06143 |
YN51,56..STD |
1 | ||
| 90105-06143 |
LN51,56,65,YN5#,67 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
YN51,56..STD |
2 | ||
| 90105-06143 |
YN51,56..STD |
1 | ||
| 90105-06143 |
LN51,56,65,YN5#,67 |
3 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-26020 |
YN51,56..STD |
1 | ||
| 33214-28010 |
YN51,56..STD |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-26020 |
YN51,56..STD |
1 | ||
| 33214-28010 |
YN51,56..STD |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-28011 |
YN51,56..STD |
1 | ||
| 33220-26030 |
YN51,56..STD |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-28020 |
YN51,56..STD |
1 | ||
| 33231-28010 |
YN51,56..STD |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
YN51,56..STD |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
YN51,56..STD |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-28010 |
YN51,56..STD |
1 | ||
| 33232-28020 |
YN51,56..STD |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
YN51,56..STD |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-26020 |
YN51,56..STD |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-26010 |
YN51,56..STD |
1 | ||
| 33245-28011 |
YN51,56..STD |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
YN51,56..STD |
2 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-35051 |
YN51,56..STD |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28030 |
YN51,56..STD |
1 | ||
| 33251-28012 |
YN51,56..STD |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-35070 |
YN51,56..STD |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-35070 |
YN51,56..STD |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35090 |
YN51,56..STD |
1 | ||
| 33261E - WASHER (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 94612-11800 |
YN51,56..STD |
1 | ||
| 33261F - PIN, STRAIGHT (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90250-05020 |
YN51,56..STD |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-28010 |
YN51,56..STD |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
YN51,56..STD L=20.2 |
1 | ||
| 90501-14132 |
YN51,56..STD L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
YN51,56..STD L=20.2 |
1 | ||
| 90501-14132 |
YN51,56..STD L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
YN51,56..STD L=20.2 |
1 | ||
| 90501-14132 |
YN51,56..STD L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
YN51,56..STD L=20.2 |
1 | ||
| 90501-14132 |
YN51,56..STD L=31 |
3 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
YN51,56..STD |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
YN51,56..STD |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10008 |
YN51,56..STD |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
YN51,56..STD |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-08597 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
