YN56R-MRW (1983)
Toyota Hilux
Production
Aug 1983
-
Aug 1988
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8608)2Y,3Y..YN56,65..EUR

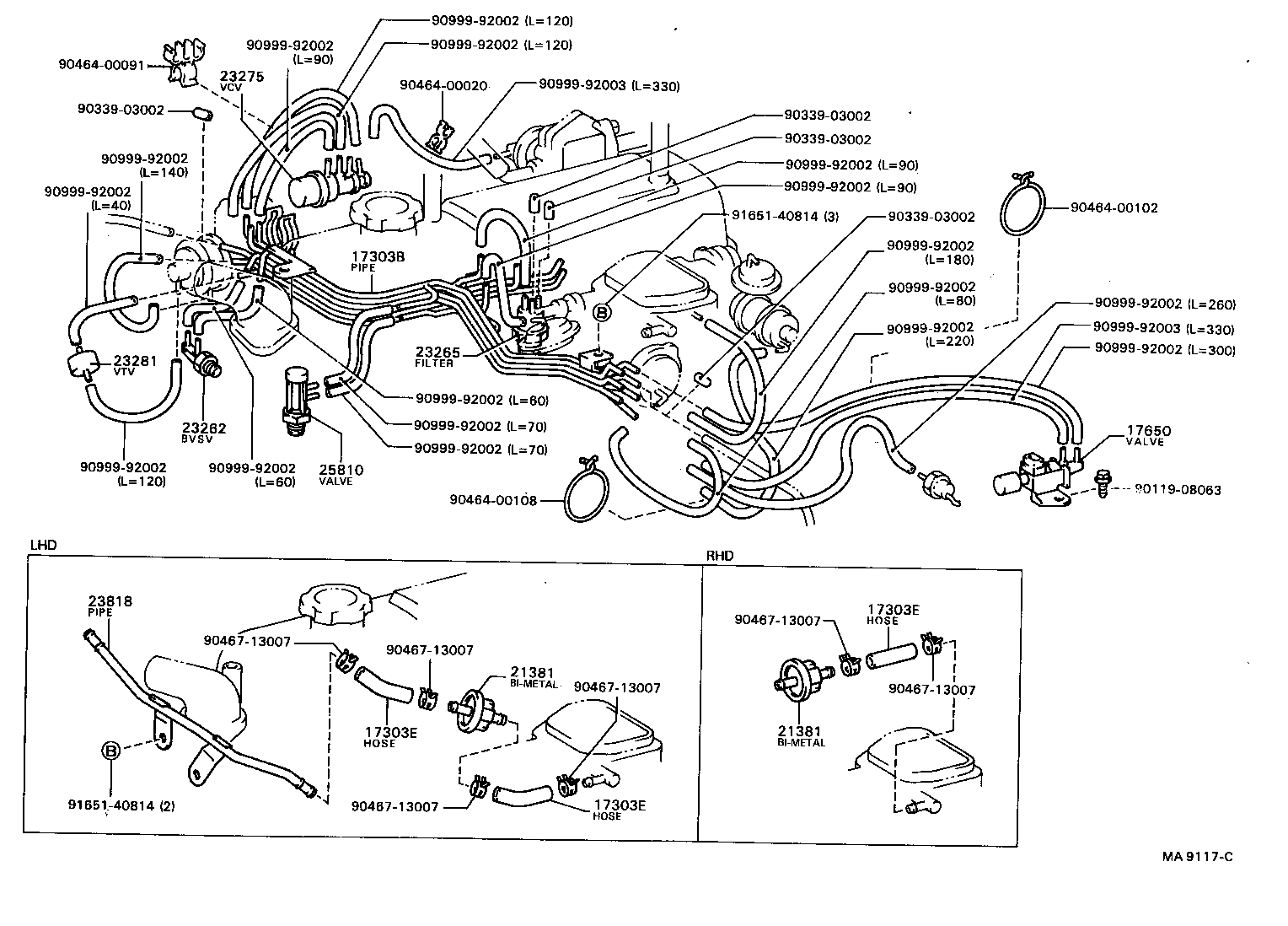

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-73030 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 17303-71070 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35180 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 89570-35200 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 90917-11024 |
2Y..YN56..EUR |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 90925-01014 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01021 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25820-37010 |
2Y,3Y,4Y..YN56,65,67..EUR |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8608-8808)2Y,4Y..YN56,67..EUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-73030 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 17303-71070 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35180 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 89570-35200 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05044 |
2Y..YN56..EUR |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 90917-11024 |
2Y..YN56..EUR |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03166 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2Y,3Y..YN56,65..EUR |
1 | ||
| 90925-01014 |
2Y,4Y..YN56,67..EUR |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25820-37010 |
2Y,3Y,4Y..YN56,65,67..EUR |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90464-00020 | ||||
| 90464-00091 | ||||
| 90464-00102 | ||||
| 90464-00108 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8308- )1Y#,2Y#,3Y,4Y#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06204 | ||||
| 90413-04008 | ||||
| 90445-08331 | ||||
| 90447-04027 | ||||
| 90447-04056 | ||||
| 90464-00369 | ||||
| 90929-01366 | ||||
| 90929-01386 | ||||
| 90999-92002 | ||||
| 91611-B0616 | ||||
| 91621-40812 | ||||
| 91622-61014 | ||||
| 95413-40033 | ||||
| 95413-49933 | ||||
| 95413-49936 | ||||
| Linked diagrams | ||||
| 2606 | ||||
| 4301 | ||||
