YN56R-JRN (1986)

Toyota Hilux

Production Aug 1986 - Aug 1991
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9108)4H

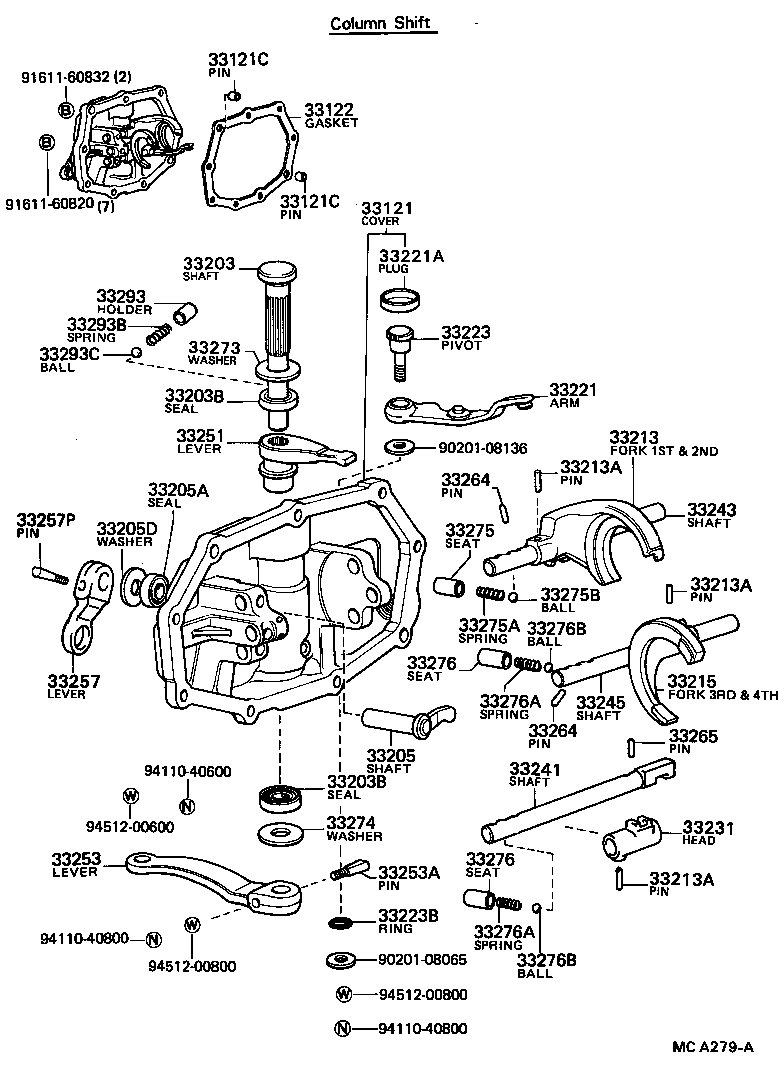

Click highlighted areas on diagram

diagram 33121 33121C 33121C 33122 33203 33203B 33203B 33205 33205A 33205D 33213 33213A 33213A 33213A 33215 33221 33221A 33223 33223B 33231 33241 33243 33245 33251 33253 33253A 33257 33257P 33264 33264 33265 33273 33274 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33293 33293B 33293C 9020108065 9020108136 9161160820 9161160832 9411040600 9411040800 9411040800 9451200600 9451200800 9451200800
Part # Description Qty Price
33121 - COVER, MANUAL TRANSMISSION CASE
33102-35040

YN50,51,55,56..4H

 1
33121C - PIN(FOR TRANSMISSION CASE COVER)
90253-11001

YN50,51,55,56..4H

L=11,OD=11

 2
33121C - PIN(FOR TRANSMISSION CASE COVER)
90253-11001

YN50,51,55,56..4H

L=11,OD=11

 2
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-30020

YN50,51,55,56..4H

 1
33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33261-30020

YN50,51,55,56..4H

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90312-15003

YN50,51,55,56..4H

LWR

 1
90311-13050

YN50,51,55,56..4H

UPR

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90312-15003

YN50,51,55,56..4H

LWR

 1
90311-13050

YN50,51,55,56..4H

UPR

 1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33262-26010

YN50,51,55,56..4H

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

YN50,51,55,56..4H

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
94612-11300

YN50,51,55,56..4H

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-28010

YN50,51,55,56..4H

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,6#,YN5#,6#..MTM

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,6#,YN5#,6#..MTM

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,6#,YN5#,6#..MTM

 5
33215 - FORK, 3RD & 4TH SHIFT
33213-26020

YN50,51,55,56..4H

 1
33221 - ARM, REVERSE SHIFT
33221-30010

YN50,51,55,56..4H

 1
33221A - PLUG, TIGHT(FOR REVERSE SHIFT ARM)
96411-12500

LN50,55,YN50,51,55,56..4F,4H

 1
96411-42500

YN50,51,55,56..4F,4H

 1
33223 - PIVOT, SHIFT ARM
33223-30011

YN50,51,55,56..4H

 1
33223B - RING, O(FOR SHIFT ARM PIVOT)
90301-08001

YN50,51,55,56..4H

 1
33231 - HEAD, REVERSE SHIFT
33231-26010

YN50,51,55,56..4H

 1
33241 - SHAFT, REVERSE SHIFT FORK
33241-26010

YN50,51,55,56..4H

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-26010

YN50,51,55,56..4H

 1
33251 - LEVER, SHIFT & SELECT
33251-26010

YN50,51,55,56..4H

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-35060

YN50,51,55,56..4H

 1
33257 - LEVER, SELECT OUTER
33257-35060

YN50,51,55,56..4H

 1
33257P - PIN, SELECT OUTER LEVER LOCK
33282-35010

YN50,51,55,56..4H

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010

LN50,55,YN50,51,55,56..4F,4H

OD=6,L=16

 2
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010

LN50,55,YN50,51,55,56..4F,4H

OD=6,L=16

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-30010

LN50,55,YN50,51,55,56..4F,4H

L=28.8,OD=6.0

 1
33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
90201-15137

YN50,51,55,56..4H

 1
33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
94612-11300

YN50,51,55,56..4H

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010

YN50,51,55,56..4H

 1
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,6#,YN50,52,55,57,6#..4F,4H

 5
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
33275-10010

YN50,51,55,56..4H

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
33275-10010

YN50,51,55,56..4H

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

LN50,55,YN50,51,55,56..4F,4H

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

LN50,55,YN50,51,55,56..4F,4H

 2
33293 - HOLDER, REVERSE RESTRICT BALL
33276-10010

YN50,51,55,56..4H

 1
33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
90501-14007

YN50,51,55,56..4H

 1
33293C - BALL (FOR REVERSE RESTRICT)
90360-10003

YN50,51,55,56..4H

 1
Common parts
90201-08065
90201-08136
91611-60820
91611-60832
94110-40600
94110-40800
94512-00600
94512-00800
