YN55R-KRB (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)T1,T3,TW..ARL,GEN,ME,SA ; (8403-8408)LN60,YN60..ARL ; (8408-8608)ARL,SA

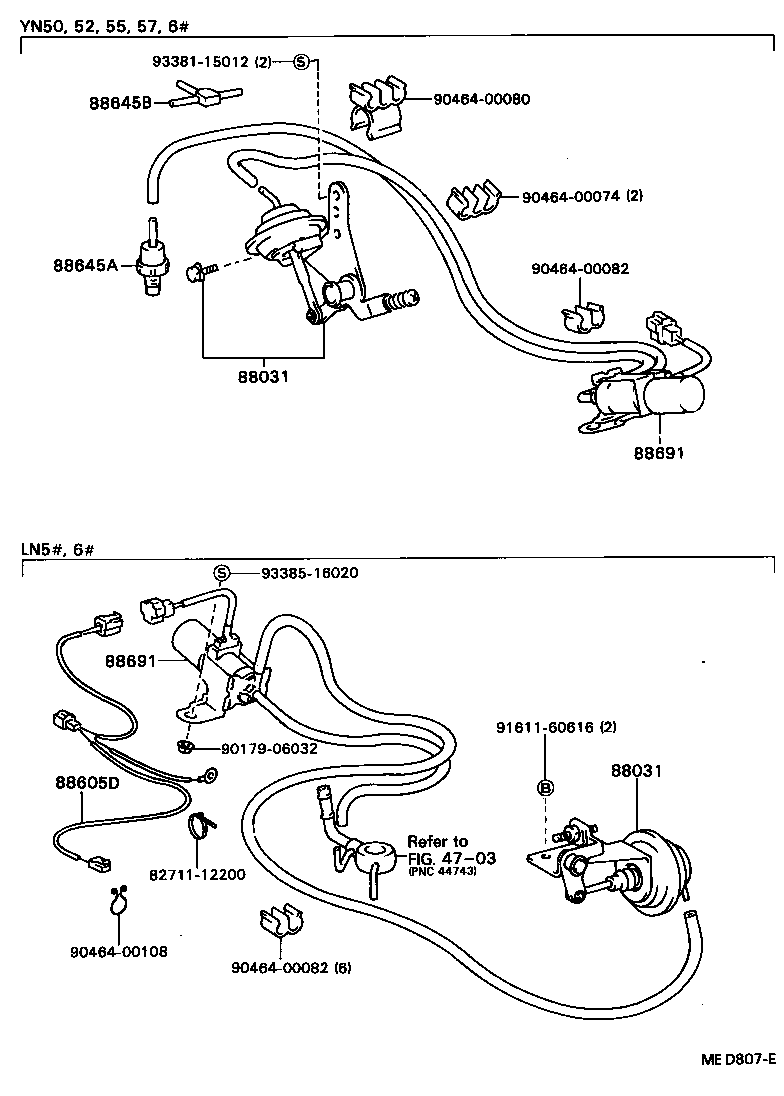

Click highlighted areas on diagram

diagram 4703 8271112200 88031 88031 88605D 88645A 88645B 88691 88691 9017906032 9046400074 9046400080 9046400082 9046400082 9046400108 9161160616 9338115012 9338516020
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88605D - WIRE, AIR CONDITIONER
88648-89114

LN50,51,55,56,60,61,65..ARL,GEN,SA

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

 1
90917-11022

YN50,52,55,57,6#..GEN,ME,SA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89117

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89117

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
Common parts
82711-12200
90179-06032
90464-00074
90464-00080
90464-00082
90464-00108
91611-60616
93381-15012
93385-16020
Linked diagrams
4703

(8403-8408)SR5..ME ; (8408- )GEN,ME ; (8708-8808)LN56,65,YN56,67..LHD..EUR

Click highlighted areas on diagram

diagram 4703 88031 88031 88605D 88645A 88645D 88645D 88645D 88645D 88691 88691 9011908063 9011908063 9046400074 9046400074 9046400080 9046400082 9046400082 9046400156 9161160616 9338115012
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-35070

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88605D - WIRE, AIR CONDITIONER
88648-89114

LN50,51,55,56,60,61,65..ARL,GEN,SA

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

 1
90917-11022

YN50,52,55,57,6#..GEN,ME,SA

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=540,MARK=#0

 1
95411-10760

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=510

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=540,MARK=#0

 1
95411-10760

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=510

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=540,MARK=#0

 1
95411-10760

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=510

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=540,MARK=#0

 1
95411-10760

YN60..4F..ME;YN60..LHD..(SR5,STD);YN50,52,55,57,62,63,65,67..GEN,ME

*H,L=510

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89117

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89117

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
Common parts
90119-08063
90464-00074
90464-00080
90464-00082
90464-00156
91611-60616
93381-15012
Linked diagrams
4703
