YN55R-KRB (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(8308- )GEN,ME

Click highlighted areas on diagram

diagram 87116 8712612050 88910 9009900968 9011906446 9331513008
Part # Description Qty Price
87116 - SPRING, HEATER CASE FASTENING
87116-14010

LN50,51,55,56,60,61,65,RN50,55,61,YN50,52,55,56,57,6#..4F,4FC,4H,5F

 1
88910 - VENTILATOR ASSY, BOOST
88910-89105

LN5#,60,65,YN50,55,57,65,67..RHD..GEN

 1
Common parts
87126-12050
90099-00968
90119-06446
93315-13008

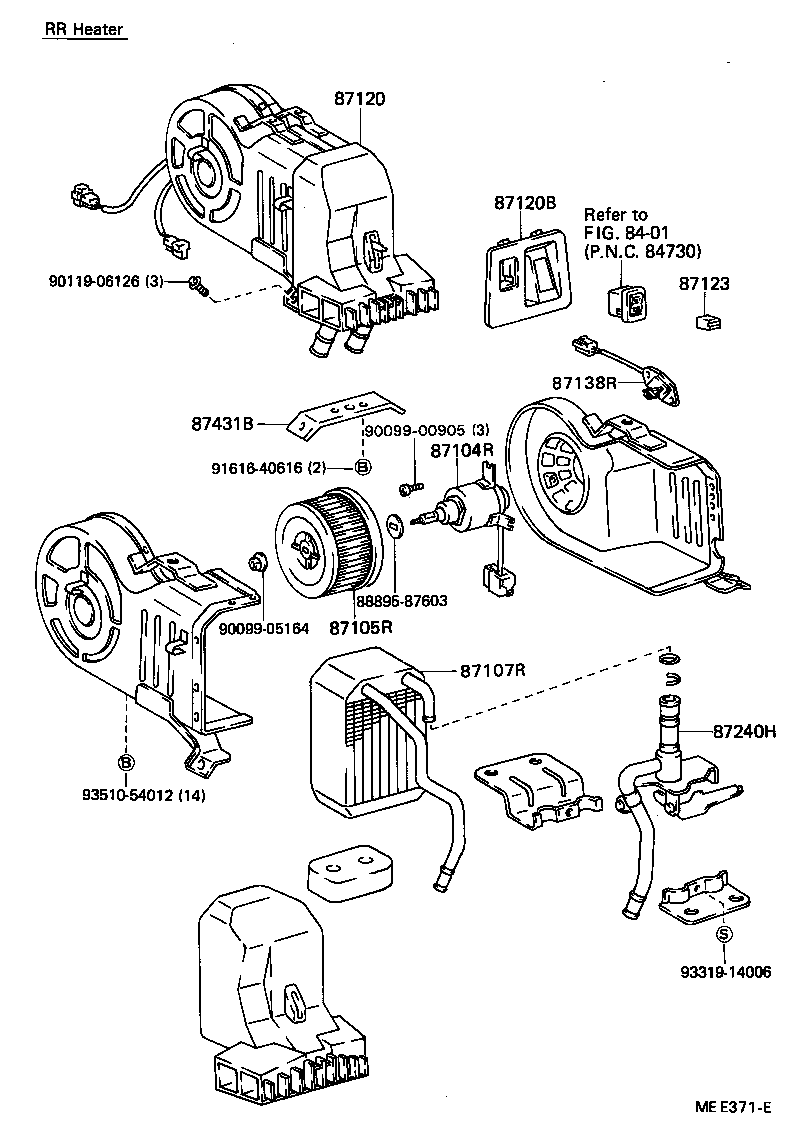

ILLUST NO. 4 OF 4(8712- )

Click highlighted areas on diagram

diagram 8401 87104R 87105R 87107R 87120 87120B 87123 87138R 87240H 87431B 8889587603 9009900905 9009905164 9011906126 9161640616 9331914006 9351054012
Part # Description Qty Price
Common parts
88895-87603
90099-00905
90099-05164
90119-06126
91616-40616
93319-14006
93510-54012
Linked diagrams
8401

ILLUST NO. 1 OF 4(8308- )

Click highlighted areas on diagram

diagram 87104 87105 8712612050 87130 87138 88540B 9009900947 9009902210 9009905164 9011906446 9017906026 9331513008 9354014010 9354014012 9354014012
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-89111

LN5#,60,65,RN5#,YN5#,60,62,65,67..T1,T3,TW

STD HEATER OR *BV ONLY

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30020

LN50,51,55,56,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)..(4F,4FC,4H,5F)

STD HEATER OR *BV ONLY

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-89105

LN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)

STD HEATER OR *BV ONLY

 1
87138 - RESISTOR, HEATER BLOWER
88635-89103

LN50,55,56,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA

W/COOLER

 1
87138-89104

LN50,51,55,56,60,65,RN50,55,YN50,52,55,56,57,60,62,65,67..(T1,T3,TW)..(4F,4FC,4H,5F)

STD HEATER OR *BV ONLY

 1
88540B - MOTOR ASSY, W/FAN
88540-89102

LN50,55,56,6#,YN50,55,57,65..RHD..(ARL,GEN,SA)

W/COOLER

 1
Common parts
87126-12050
90099-00947
90099-02210
90099-05164
90119-06446
90179-06026
93315-13008
93540-14010
93540-14012

ILLUST NO. 2 OF 4(8308- )

Click highlighted areas on diagram

diagram 87107 87107 87116 87116 8712410010 8712410010 8712612050 8712612050 8712689101 8712689101 87150 87150 87248E 87249E 8739889104 8739889104 8739889105 8739889105 9011906446 9011906446 9331513008 9331513008 9354015016 9354015016 9354015016 9676119016 9676119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89110

LN5#,60,65,RN5#,67,YN5#,60,62,65,67..T1,T3,TW

STD HEATER

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89110

LN5#,60,65,RN5#,67,YN5#,60,62,65,67..T1,T3,TW

STD HEATER

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

LN50,51,55,56,60,61,65,RN50,55,61,YN50,52,55,56,57,6#..4F,4FC,4H,5F

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

LN50,51,55,56,60,61,65,RN50,55,61,YN50,52,55,56,57,6#..4F,4FC,4H,5F

 1
87150 - RADIATOR ASSY, HEATER
87150-89111

LN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)..(ARL,EUR,GEN)

STD HEATER

 1
87150 - RADIATOR ASSY, HEATER
87150-89111

LN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)..(ARL,EUR,GEN)

STD HEATER

 1
Common parts
87124-10010
87126-12050
87126-89101
87398-89104
87398-89105
90119-06446
93315-13008
93540-15016
96761-19016
