YN55R-KRB (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9108)4H ; (8308- )LN50,55,YN50,55..4F

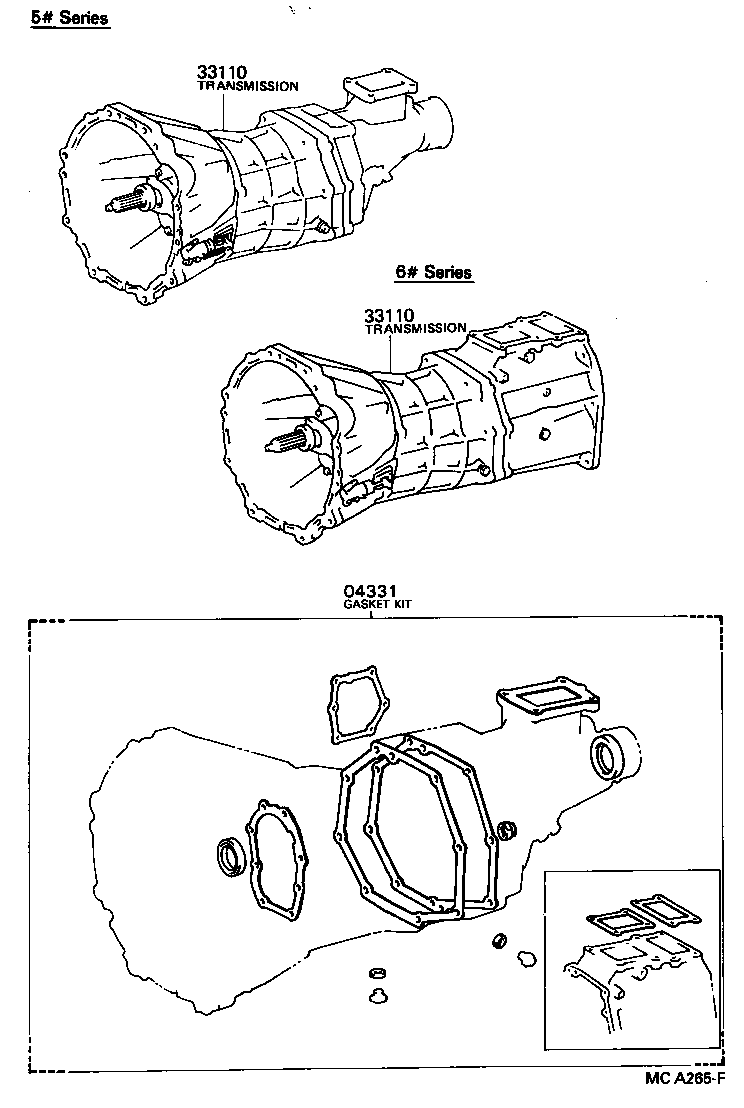

Click highlighted areas on diagram

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35090

LN50,55,YN50,55..4F

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-35300

LN50,55..4F..(ARL,GEN)

W/185R-14C-8 TIRE

 1
33030-35330

YN50,55..4F

 1

(8308-8508)YN57..4F ; (8308-8508)LN51,56..MTM ;(8308-8508)LN50,55,6#,YN56,6#..5F ;

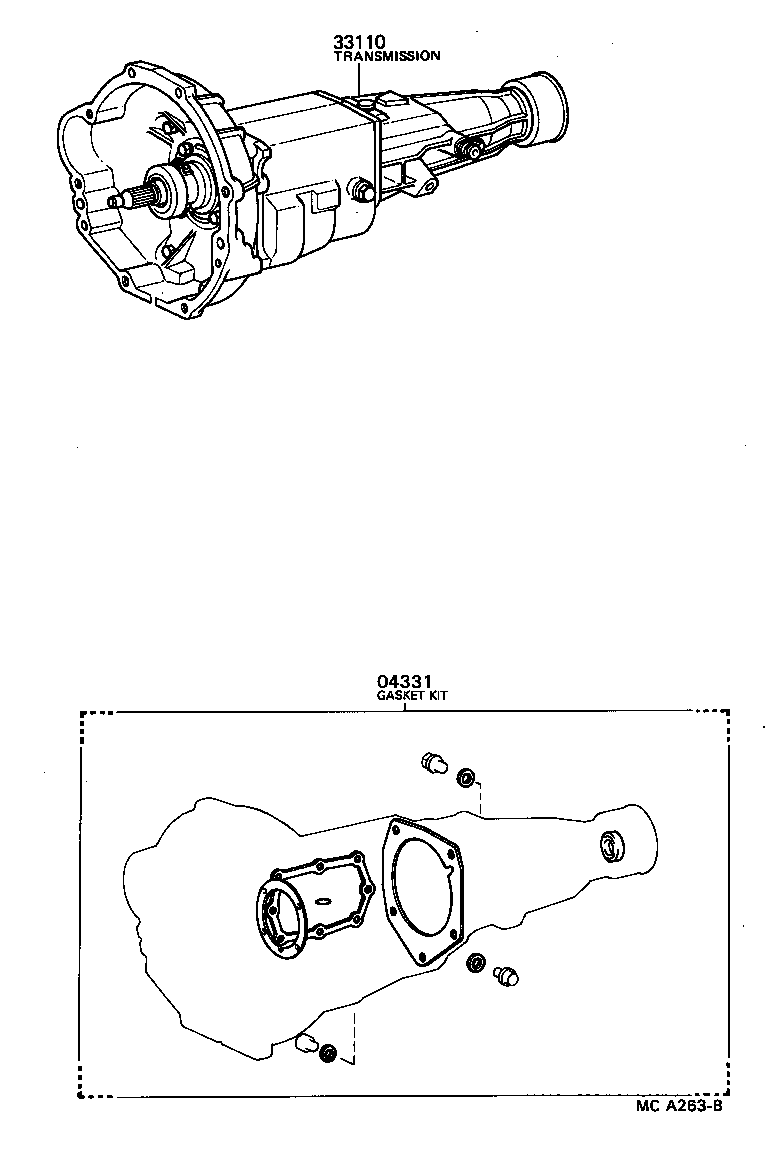

Click highlighted areas on diagram

(9407- )RN5#,6#,YN5#,LN5#,6#..5F

diagram 04331 33110 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35090

LN50,55,YN50,55..4F

 1
04331-35090

LN50,55,YN50,55..4F

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-35300

LN50,55..4F..(ARL,GEN)

W/185R-14C-8 TIRE

 1
33030-35300

LN50,55..4F..(ARL,GEN)

W/185R-14C-8 TIRE

 1
33030-35330

YN50,55..4F

 1
33030-35330

YN50,55..4F

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-35300

LN50,55..4F..(ARL,GEN)

W/185R-14C-8 TIRE

 1
33030-35300

LN50,55..4F..(ARL,GEN)

W/185R-14C-8 TIRE

 1
33030-35330

YN50,55..4F

 1
33030-35330

YN50,55..4F

 1
