YN55R-KRB (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1Y#,2Y#,3Y,4Y,4YC

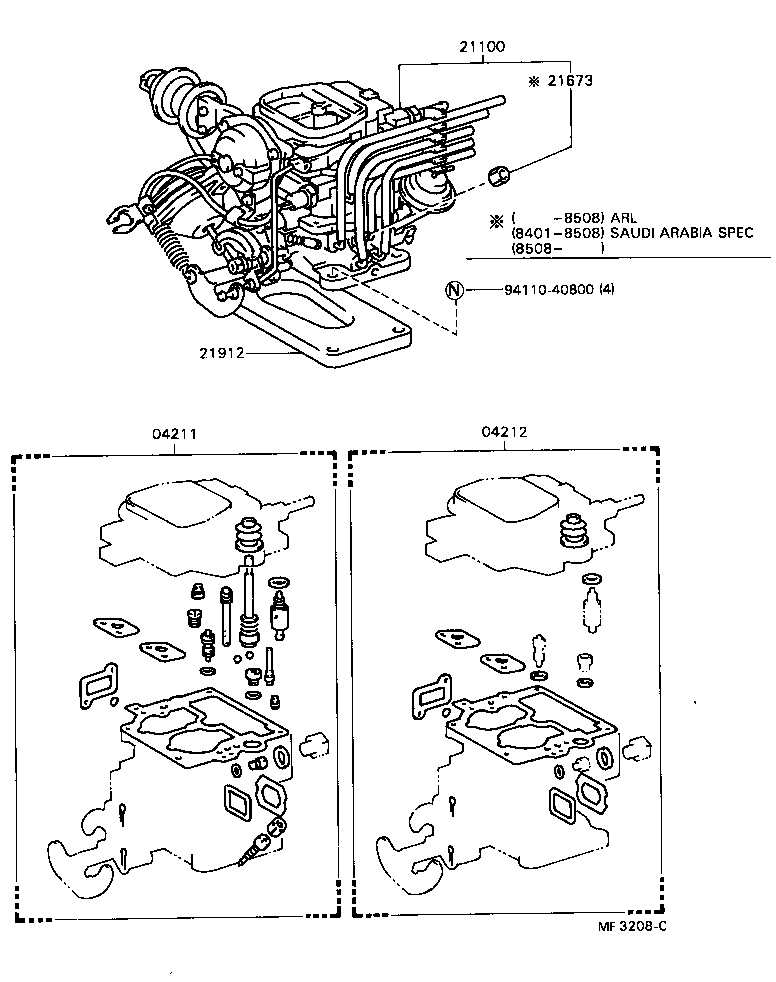

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-71030

1Y,3Y..YN50,52,55,57,60..GEN,ME,SA

 1
04211-71090

1Y,2Y..YN50,51,55,56..GEN,SA

 1
04211-71030

1Y,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
04211-71091

1Y,2Y..YN50,51,55,56..GEN,SA

 1
04211-71091

1Y..YN50,55

 1
04212 - GASKET KIT, CARBURETOR
04212-71040

1Y,2Y..YN50,51,55,56..GEN,SA

 1
04212-71030

1Y#,2Y,3Y,4Y..YN5#,6#

 1
04212-71041

1Y,2Y..YN50,51,55,56..GEN,SA

 1
04212-71041

1Y..YN50,55

 1
21100 - CARBURETOR ASSY
21100-71140

1Y,2Y..YN50,51,55,56..GEN,SA

 1
21100-71081

1Y,3Y..YN50,52,55,57,60..GEN,ME,SA

 1
21100-71070

1Y,3Y..YN50,52,55,57,6#..GEN,ME,SA

 1
21100-71140

1Y..YN50,55

 1
21673 - CAP, IDLE LIMIT
21673-71030

1Y,3Y..YN50,52,55,57,60..GEN,ME,SA

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-71020

1Y#,2Y,3Y,4Y..YN5#,6#

 1
Common parts
94110-40800
