YN55R-JRQ (1983)
Toyota Hilux
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-71010 |
1YC..YN55 |
1 | ||
| 17111-71020 |
4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54012 |
L..LN50,55..ARL,EUR,GEN |
1 | ||
| 17141-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17141-54040 |
L..LN50,55 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10088 |
L..LN50,55..ARL,EUR,GEN EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-10091 |
L..LN50,55 EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-10063 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
8 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10088 |
L..LN50,55..ARL,EUR,GEN EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-10091 |
L..LN50,55 EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-10063 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 12521-72010 |
1YC,3Y..YN55,57..ARL W/O HOT AIR INTAKE |
1 | ||
| 12521-72010 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| Common parts | ||||
| 90119-08689 | ||||
| 90119-08714 | ||||
| 90119-10237 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
(8308- )1Y#,2Y#,3Y,4Y,4YC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-71010 |
1YC..YN55 |
1 | ||
| 17111-71020 |
4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) | ||||
| 90250-08120 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54012 |
L..LN50,55..ARL,EUR,GEN |
1 | ||
| 17141-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17141-54040 |
L..LN50,55 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92122-40835 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10088 |
L..LN50,55..ARL,EUR,GEN EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-10091 |
L..LN50,55 EXHAUST MANIFOLD SIDE |
2 | ||
| 90116-10063 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
8 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 12521-72010 |
1YC,3Y..YN55,57..ARL W/O HOT AIR INTAKE |
1 | ||
| 12521-72010 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 17172-71011 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| Common parts | ||||
| 90110-08008 | ||||
| 90179-06194 | ||||
| 90179-10051 | ||||
| 91651-40612 | ||||
| 92122-40610 | ||||

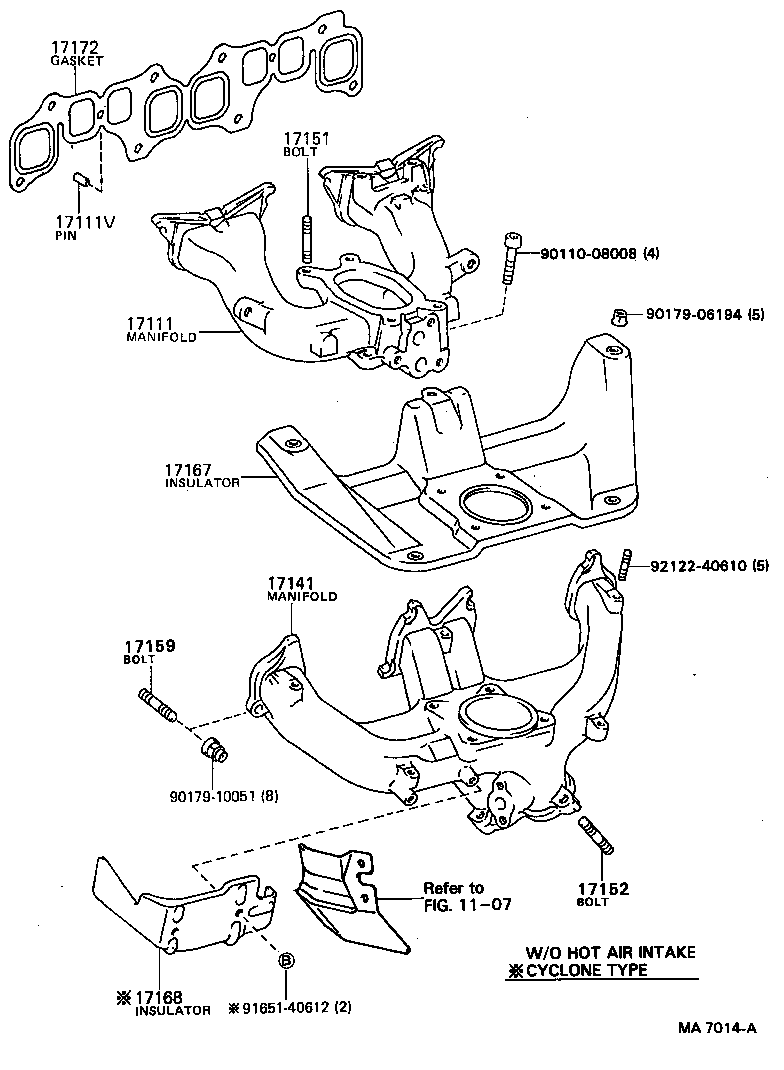

| Linked diagrams | ||||
| 1107 | ||||
