YN55L-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1988
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)YN57..4F ; (8308-8508)LN50,55,YN56..5F ; (8308-8508)LN51,56,YN52..MTM ;

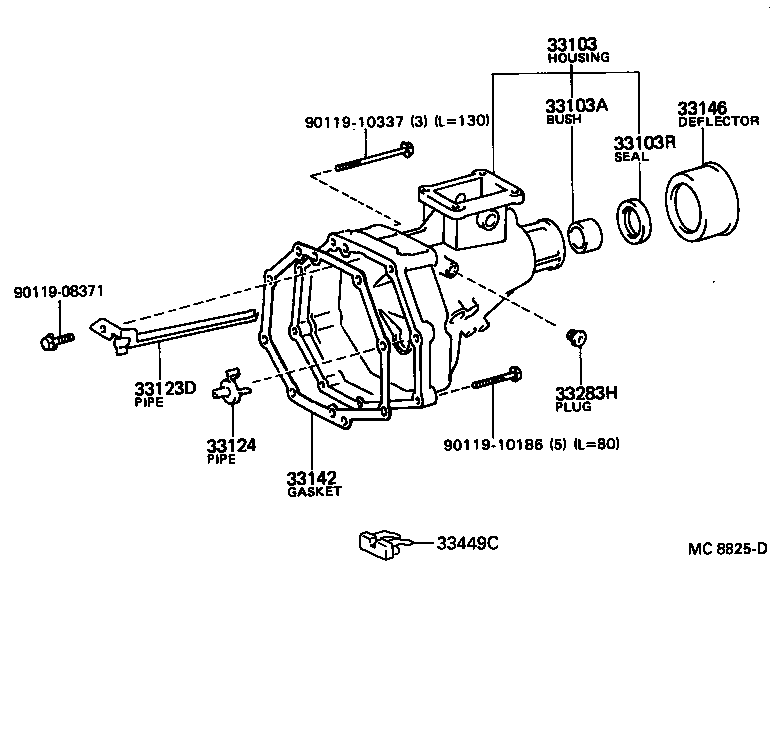

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33123D 33124 33142 33146 33283H 33449C 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35060

LN50,55,YN50,55..4F

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

YN58..4FC..IV;LN5#,RN5#,YN5#..MTM

 1
90999-72023

LN5#,YN50,52,55,57..4F,4H

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

LN5#,RN5#,YN5#..MTM

 1
90311-38043

LN5#,YN50,52,55,57..4F,4H

 1
90311-38043

LN5#,RN5#,YN5#..MTM

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-26010

LN50,55,YN50,55..4F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN5#,YN50,52,55,57..4F,4H

 1
Common parts
90119-08371
90119-10186
90119-10337
