YN55L-KR3 (1983)
Toyota Hilux
(8308- )LN5#,RN5#,YN5#..RCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH | ||||
| 51071-35020 |
LN55,56,57,65,RN55,58,YN55,56,57,58,65,67..RCB |
1 | ||
| 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH | ||||
| 51071-35020 |
LN55,56,57,65,RN55,58,YN55,56,57,58,65,67..RCB |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-35010 |
LN5#,60,65,RN5#,YN5#,60,62,65,67..RCB,XTR |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-35010 |
LN5#,60,65,RN5#,YN5#,60,62,65,67..RCB,XTR |
1 | ||
| 51100 - FRAME ASSY | ||||
| 51002-35260 |
YN55,57..LHD..RCB HEAVY DUTY |
1 | ||
| 51002-35250 |
YN55,56,57..LHD..RCB |
1 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01394 |
LN5#,6#,YN5#,6# |
4 | ||
| 90950-01394 |
LN5#,YN5# |
4 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LN5#,YN5# |
2 | ||
| 90950-01395 |
LN5#,6#,YN5#,6# |
2 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
2 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35130 |
LN50,55,YN50,52,55,57..(T1,TW)..(GEN,ME) HEAVY DUTY |
1 | ||
| 51201-35100 |
LN50,55,YN5#..(T1,TW)..(EUR,GEN,ME,SA) |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-35160 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-35250 |
LN50,51,55,56,RN50,55,YN50,52,55,56,57..LHD |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-35230 |
LN55,56,RN55,YN55,56,57,58..RCB,XTR |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-35120 |
LN5#,RN5#,YN5#..RCB,XTR |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51209-35090 |
LN50,55,YN50,52,55,57..T1..(GEN,ME) HEAVY DUTY |
1 | ||
| 51291-35080 |
LN50,55,YN5#..T1..(EUR,GEN,ME,SA) |
1 | ||
| 51291-35080 |
LN56..EUR..IV;LN56..LHD..T1..GEN;LN56..RHD..T1..(EUR,GEN,SA);LN51,YN5#..T1..(EUR,GEN,ME,SA) |
1 | ||
| 51209-35090 |
LN5#,YN50,52,55,57..T1..(GEN,ME) HEAVY DUTY |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-35180 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51401-35170 |
LN50,51,55,56,RN50,55 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-35180 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51402-35170 |
LN50,51,55,56,RN50,55 |
1 | ||
| 51435 - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-35070 |
LN50,55,YN50,55..4F,4H |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-35020 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-35020 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51575 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 | ||||
| 51573-35010 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
2 | ||
| 51576 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 | ||||
| 51576-35010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57..4F,4FC,4H,5F LH |
1 | ||
| 51575-35040 |
LN50,51,55,56,RN50,55 |
2 | ||
| 51575-35030 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57..4F,4FC,4H,5F RH |
1 | ||
| 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51632-35030 |
LN5#,RN5#,YN5# FR |
1 | ||
| 51631-35030 |
LN5#,RN5#,YN5# RR |
1 | ||
| 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51632-35030 |
LN5#,RN5#,YN5# FR |
1 | ||
| 51631-35030 |
LN5#,RN5#,YN5# RR |
1 | ||
| 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-35030 |
LN5#,RN5#,YN5# FR |
1 | ||
| 51632-35030 |
LN5#,RN5#,YN5# RR |
1 | ||
| 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-35030 |
LN5#,RN5#,YN5# FR |
1 | ||
| 51632-35030 |
LN5#,RN5#,YN5# RR |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35080 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-35070 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35040 |
LN5#,6#,YN5#,6# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35060 |
LN5#,6#,YN5#,6# |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
2 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
LN5#,6#,YN5#,6#..ARL,EUR,GEN,ME |
2 | ||
| 51741-35050 |
LN5#,6#,YN5#,6#..T1..(ARL,EUR,GEN,ME) |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
LN5#,6#,YN5#,6#..ARL,EUR,GEN,ME |
2 | ||
| 51741-35050 |
LN5#,6#,YN5#,6#..T1..(ARL,EUR,GEN,ME) |
2 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-35040 |
LN5#,RN5#,YN5# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-35040 |
LN5#,RN5#,YN5# |
1 | ||
| Common parts | ||||
| 90101-10273 | ||||
| 90119-10366 | ||||
| 90201-10068 | ||||
| 91656-61032 | ||||
| 94110-71000 | ||||

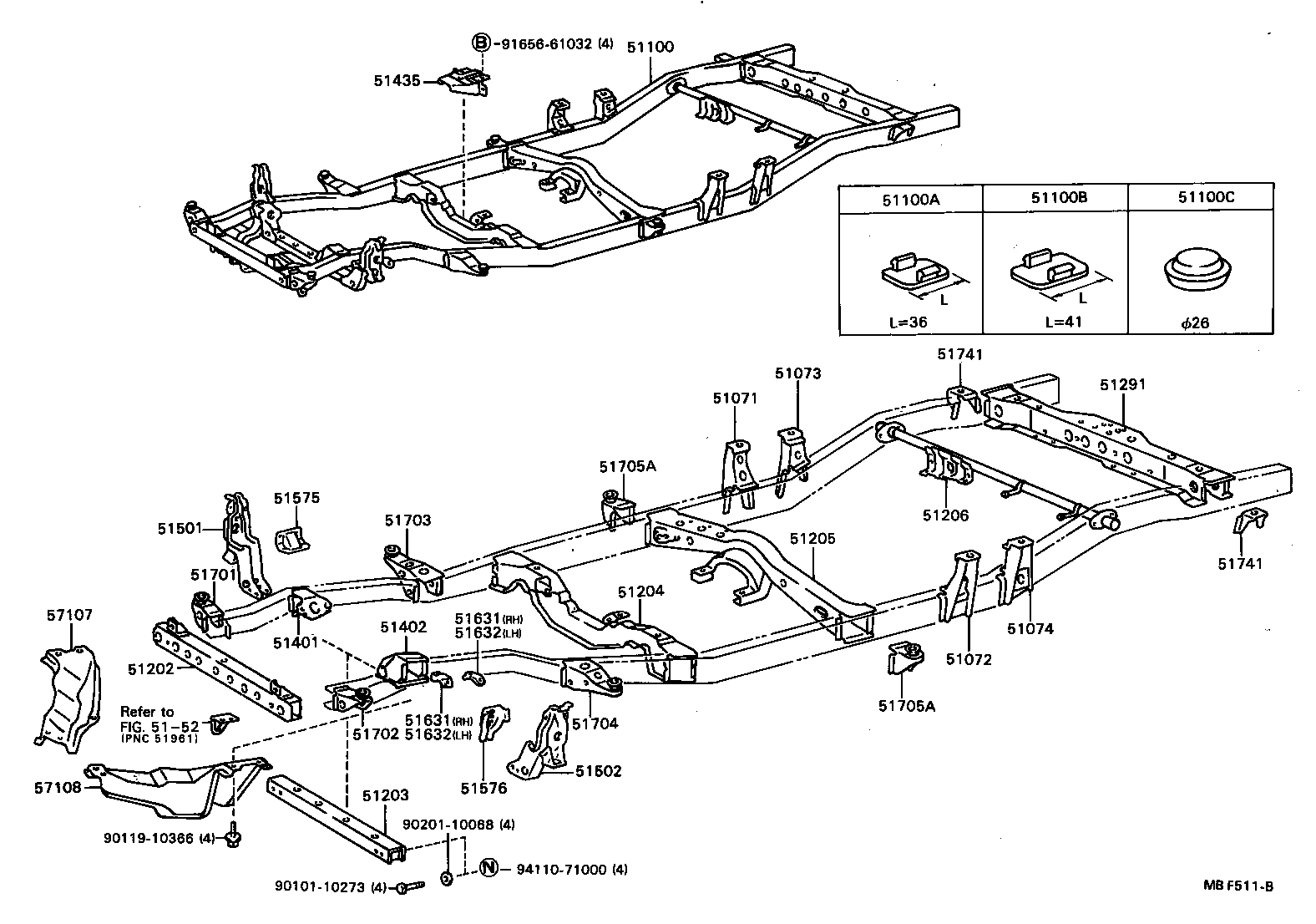

| Linked diagrams | ||||
| 5152 | ||||
