YN55L-KDPV (1983)

Toyota Hilux

Production Dec 1983 - Jan 1986
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

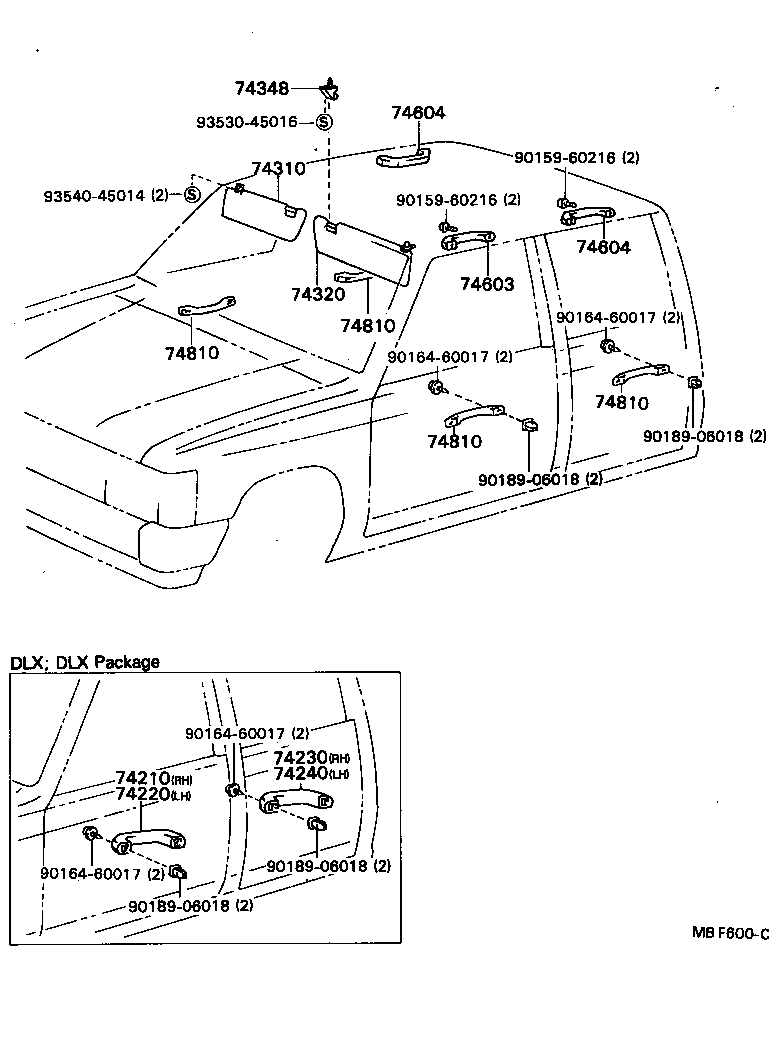

Click highlighted areas on diagram

diagram 74210 74220 74230 74240 74310 74320 74348 74603 74604 74604 74810 74810 74810 74810 9015960216 9015960216 9016460017 9016460017 9016460017 9016460017 9018906018 9018906018 9018906018 9018906018 9353045016 9354045014
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-8910106

LN55,56,61,RN5#,YN50,52,55,57,60,63,65,67..DLX

BROWN,BROWN,TRIM4#

 1
74210-8910124

LN55,56,61,RN5#,YN50,52,55,57,60,63,65,67..DLX

BLUE,BLUE,TRIM8#

 1
74210-8910113

LN55,56,61,RN5#,YN50,52,55,57,60,63,65,67..DLX

GRAY,GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910113

LN55,56,61,RN5#,YN50,52,55,57,60,63,65,67..DLX

GRAY,GRAY,TRIM1#

 1
74210-8910106

LN55,56,61,RN5#,YN50,52,55,57,60,63,65,67..DLX

BROWN,BROWN,TRIM4#

 1
74210-8910124

LN55,56,61,RN5#,YN50,52,55,57,60,63,65,67..DLX

BLUE,BLUE,TRIM8#

 1
74310 - VISOR ASSY, RH
74310-8911408

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..STD..(EUR,GEN,SA);LN50,51,55,RN5#,YN5#..(DLX,STD)..(EUR,GEN,ME,SA)

IVORY,IVORY,TRIM4#

 1
74310-8911403

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..STD..(EUR,GEN,SA);LN50,51,55,RN5#,YN5#..(DLX,STD)..(EUR,GEN,ME,SA)

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74320 - VISOR ASSY, LH
74310-8911403

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..STD..(EUR,GEN,SA);LN50,51,55,RN5#,YN5#..(DLX,STD)..(EUR,GEN,ME,SA)

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74310-8911408

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..STD..(EUR,GEN,SA);LN50,51,55,RN5#,YN5#..(DLX,STD)..(EUR,GEN,ME,SA)

IVORY,IVORY,TRIM4#

 1
74348 - HOLDER, VISOR
74348-1401018

LN5#,6#,RN5#,YN5#,6#

IVORY,IVORY,TRIM4#

 2
74348-1401023

LN5#,6#,YN5#,6#..ARL,EUR,GEN,ME

LIGHT GRAY,GRAY,TRIM1#,8#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74611-8910108

LN5#,60,65,RN5#,YN5#,60,62,65,67..T1,T3,TW

IVORY,IVORY,TRIM4#

 1
74611-8910123

LN5#,6#,YN5#,6#..ARL,EUR,GEN,ME

LIGHT GRAY,GRAY,TRIM1#,8#

 1
Common parts
90159-60216
90164-60017
90189-06018
93530-45016
93540-45014
