YN50L-KR3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1985
Engine 1Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN50,55,YN50,55..4F

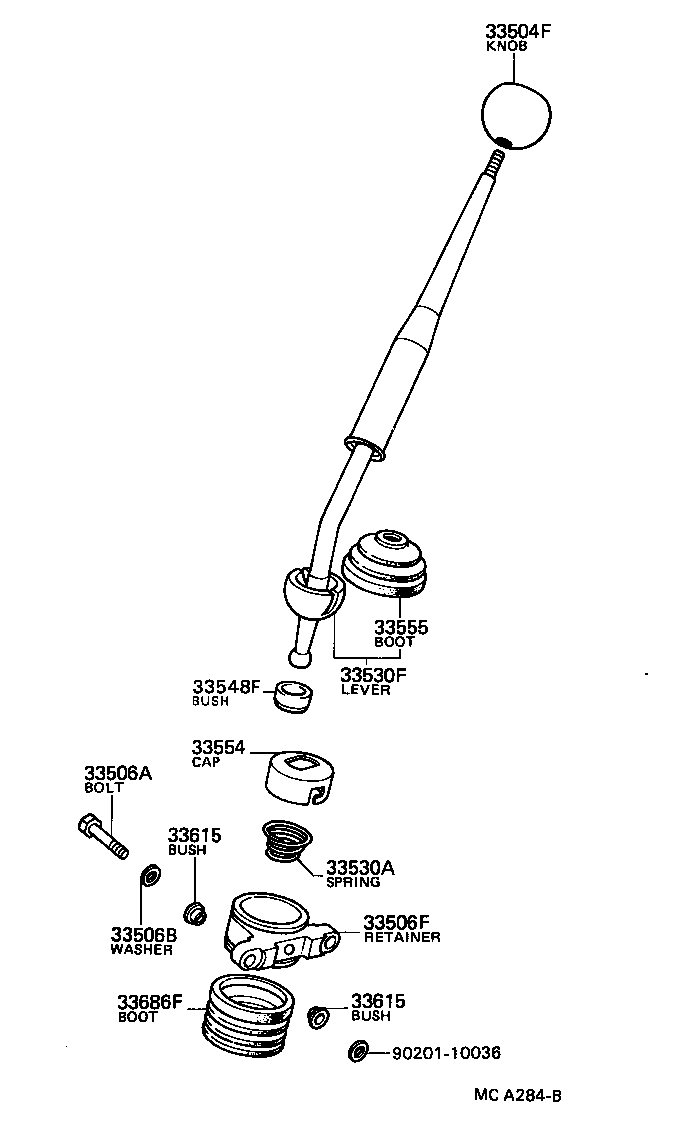

Click highlighted areas on diagram

diagram 33504F 33506A 33506B 33506F 33530A 33530F 33548F 33554 33555 33615 33615 33686F 9020110036
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2210101

LN5#,6#,YN50,55,57,6#..4F..(ARL,GEN,SA)

BLACK

 1
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90109-10042

LN50,55,YN50,55..4F

 2
33506B - WASHER, PLATE (FOR CONTROL SHIFT LEVER RETAINER)
90201-13012

LN50,55,YN50,55..4F

 2
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-20031

LN50,55,YN50,55..4F

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90502-26001

LN50,55,YN50,55..4F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33541-35063

LN50,55,YN50,55..LHD..4F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-30010

LN50,55,YN50,55..4F

 1
33554 - CAP, SHIFT LEVER
33554-30012

LN50,55,YN50,55..4F

 1
33555 - BOOT, SHIFT LEVER
33555-30030

LN50,55,YN50,55..4F

 1
33615 - BUSH, CONTROL SHIFT LEVER RETAINER
33615-20012

LN50,55,YN50,55..4F

 4
33615 - BUSH, CONTROL SHIFT LEVER RETAINER
33615-20012

LN50,55,YN50,55..4F

 4
33686F - BOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER)
33555-30020

LN50,55,YN50,55..4F

 1
Common parts
90201-10036
