VZN172R-CRPDEQ (2002)

Toyota Hilux

Production Aug 2002 - Feb 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )VZN167,172

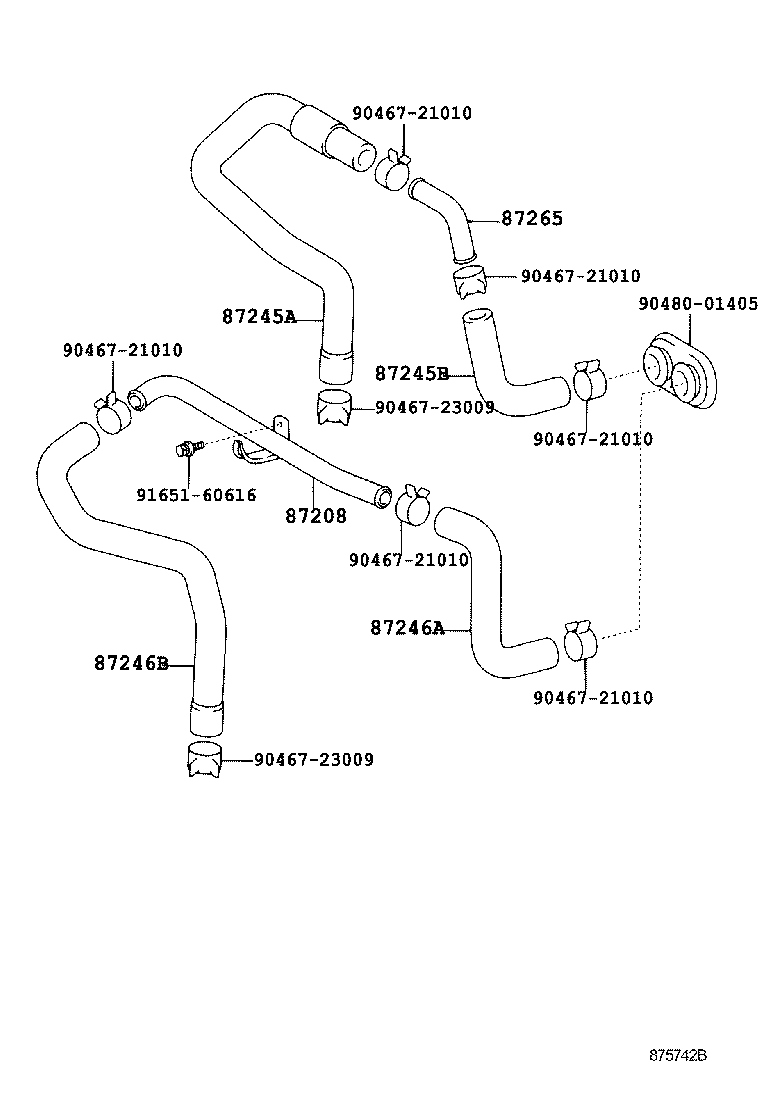

Click highlighted areas on diagram

diagram 87208 87245A 87245B 87246A 87246B 87265 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046723009 9046723009 9048001405 9165160616
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-35430

VZN167,172

 1
87208-35280

LN145,155..LHD..TH;LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35840

LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA)

 1
87245-3D400

VZN167,172

 1
87245B - HOSE, HEATER WATER, INLET B
87245-3D410

VZN167,172

 1
87246A - HOSE, HEATER WATER, OUTLET A
87246-35020

LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA)

 1
87245-3D360

VZN167,172

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-35100

VZN167,172

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35470

VZN167,172

 1
Common parts
90467-21010
90467-23009
90480-01405
91651-60616
