VZN172R-CRPDEQ (2002)
Toyota Hilux
Production
Aug 2002
-
Feb 2005
Engine
5VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0208- )KDN166,VZN167,172..ATM

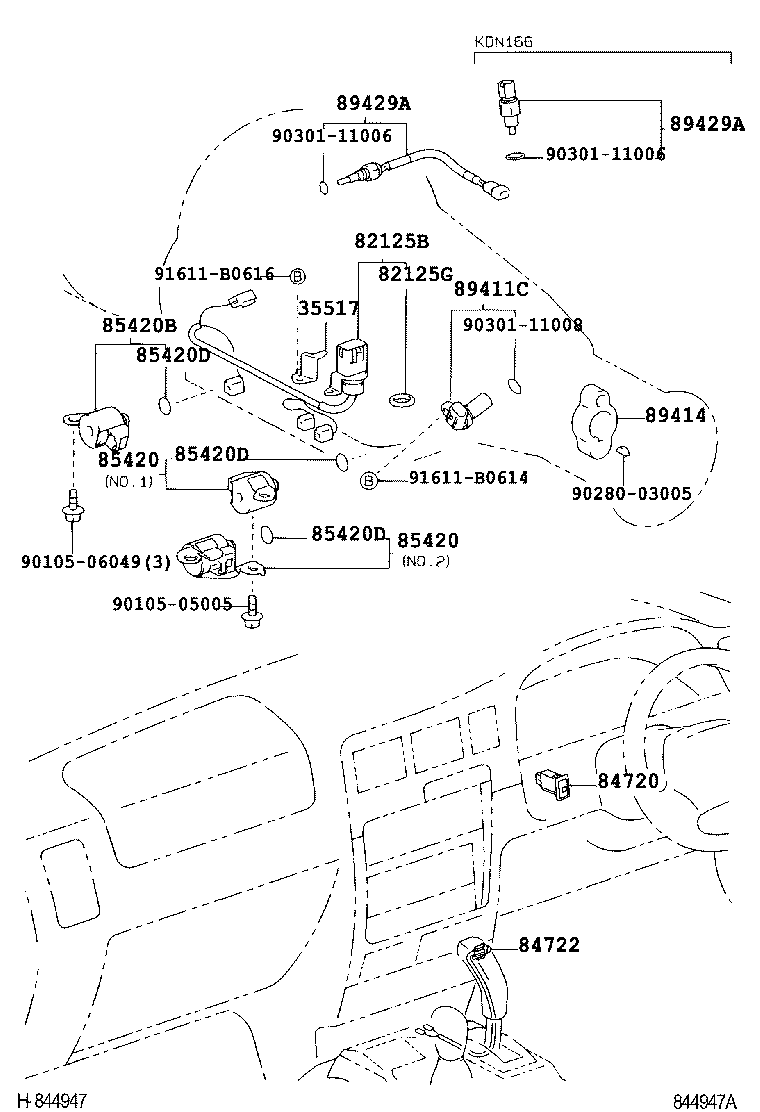

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-22240 |
VZN167,172..ATM |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
RZN149,154,VZN167,172..ATM..ARL |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-35150B0 |
VZN167,172..ATM MD.MOON MIST,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30050 |
VZN167,172..ATM NO.1 |
2 | ||
| 35250-30070 |
VZN167,172..ATM NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30050 |
VZN167,172..ATM NO.1 |
2 | ||
| 35250-30070 |
VZN167,172..ATM NO.2 |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
VZN167,172..ATM |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-35020 |
VZN167,172..ATM |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89429-35042 |
VZN167,172..ATM |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89429-35042 |
VZN167,172..ATM |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 90280-03005 | ||||
| 90301-11006 | ||||
| 90301-11008 | ||||
| 91611-B0614 | ||||
| 91611-B0616 | ||||
