Toyota Hilux VZN172 MANIFOLD - JDM Part Detective

VZN172R-CRMDEQ (2002)

Toyota Hilux

Production Aug 2002 - Feb 2005

Engine 5VZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0208-0502)5VZFE

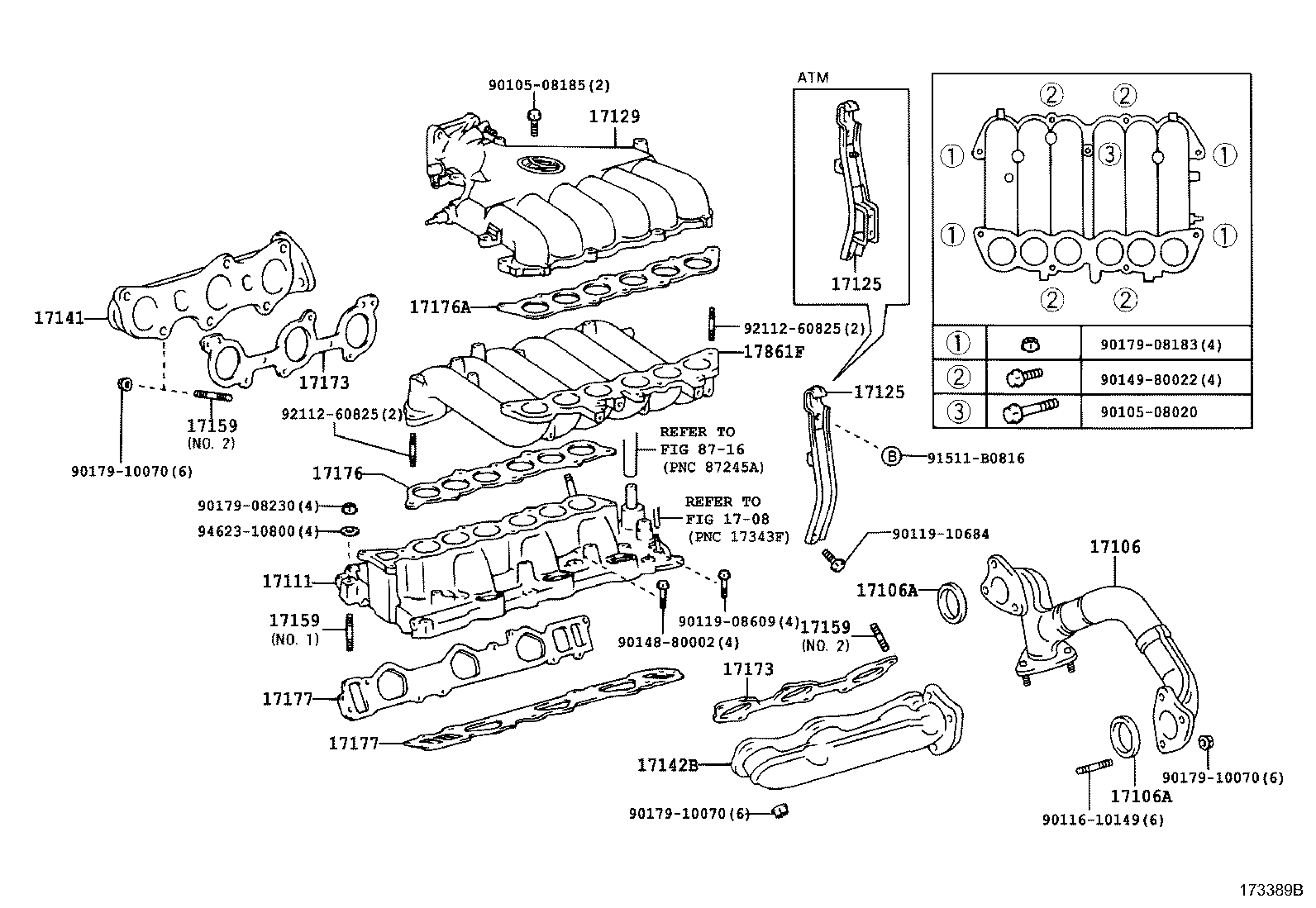

Click highlighted areas on diagram

Part #	Description	Period	Qty
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-62041	5VZFE..VZN167,172	04/2003 - 02/2005	1
17106-62040	5VZFE..VZN167,172	08/2002 - 04/2003	1
17106A - GASKET, EXHAUST PIPE
90917-06083	5VZFE..VZN167,172	08/2002 - 02/2005	2
17106A - GASKET, EXHAUST PIPE
90917-06083	5VZFE..VZN167,172	08/2002 - 02/2005	2
17111 - MANIFOLD, INTAKE
17101-62020	5VZFE..VZN167,172	08/2002 - 02/2005	1
17125 - STAY, SURGE TANK, NO.1
17125-62041	5VZFE..VZN167,172..MTM	08/2002 - 02/2005	1
17125 - STAY, SURGE TANK, NO.1
17125-62041	5VZFE..VZN167,172..MTM	08/2002 - 02/2005	1
17129 - TANK, INTAKE AIR SURGE
17109-62090	5VZFE..VZN167,172	08/2002 - 02/2005	1
17141 - MANIFOLD, EXHAUST
17141-62110	5VZFE..VZN167,172	08/2002 - 02/2005	1
17142B - MANIFOLD, EXHAUST, LH
17142-62110	5VZFE..VZN167,172	08/2002 - 02/2005	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251	5VZFE..VZN167,172 NO.1	08/2002 - 02/2005	4
90116-10150	5VZFE..VZN167,172 NO.2	08/2002 - 02/2005	12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251	5VZFE..VZN167,172 NO.1	08/2002 - 02/2005	4
90116-10150	5VZFE..VZN167,172 NO.2	08/2002 - 02/2005	12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251	5VZFE..VZN167,172 NO.1	08/2002 - 02/2005	4
90116-10150	5VZFE..VZN167,172 NO.2	08/2002 - 02/2005	12
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62060	5VZFE..VZN167,172	08/2002 - 02/2005	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62060	5VZFE..VZN167,172	08/2002 - 02/2005	2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62040	5VZFE..VZN167,172	08/2002 - 02/2005	1
17176A - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD, NO.2
17176-62040	5VZFE..VZN167,172	08/2002 - 02/2005	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060	5VZFE..VZN167,172	08/2002 - 02/2005	2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060	5VZFE..VZN167,172	08/2002 - 02/2005	2
17861F - CONNECTOR, INTAKE AIR
17861-62012	5VZFE..VZN167,172	08/2002 - 02/2005	1
Common parts
90105-08020
90105-08185
90116-10149
90119-08609
90119-10684
90148-80002
90149-80022
90179-08183
90179-08230
90179-10070
91511-B0816
92112-60825
94623-10800
