VZN172R-CRMDEQ (2002)

Toyota Hilux

Production Aug 2002 - Feb 2005
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0502)5VZFE

Click highlighted areas on diagram

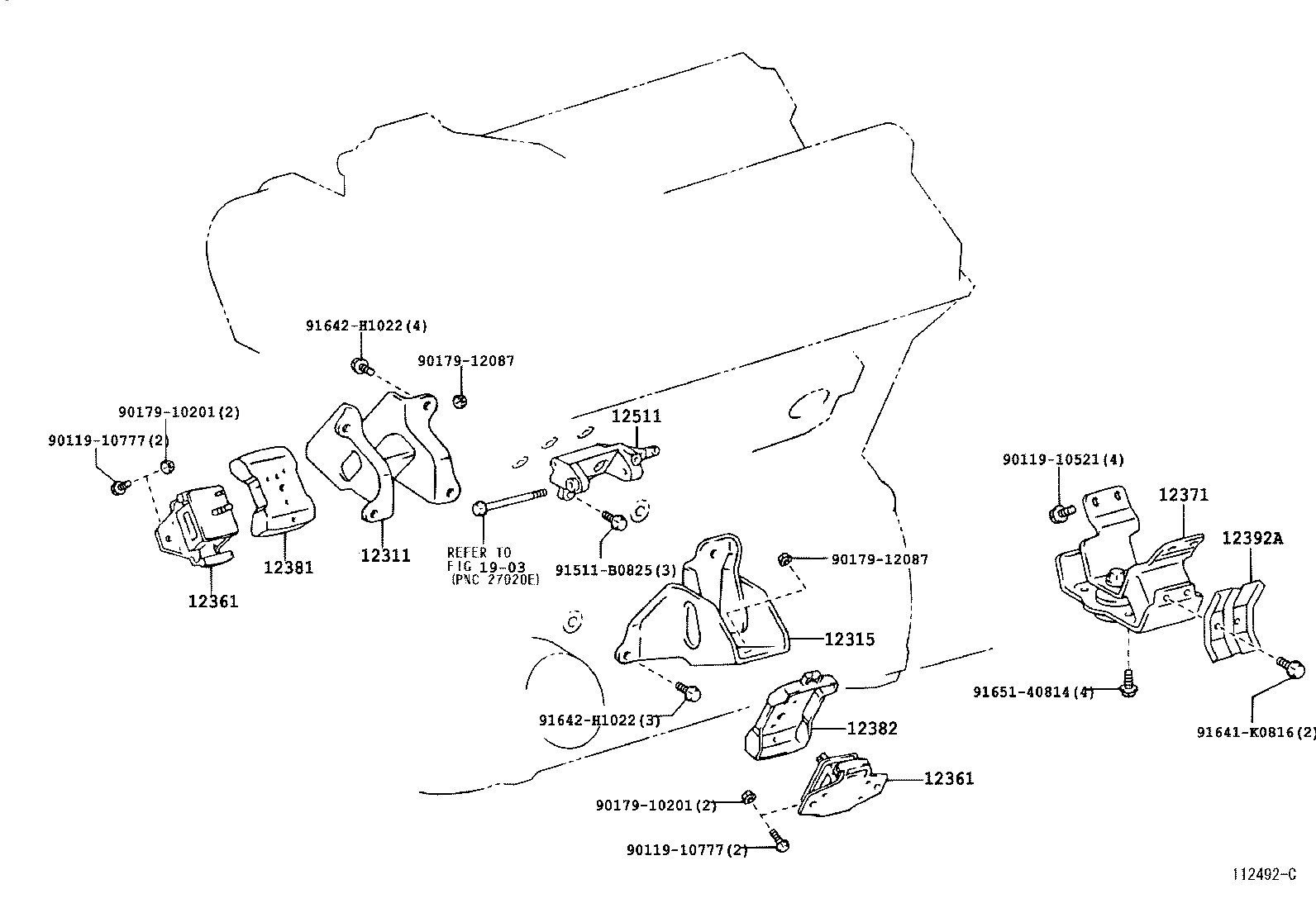

diagram 12311 12315 12361 12361 12371 12381 12382 12392A 12511 1903 9011910521 9011910777 9011910777 9017910201 9017910201 9017912087 9017912087 91511B0825 91641K0816 91642H1022 91642H1022 9165140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62070

5VZFE..VZN167,172

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62080

5VZFE..VZN167,172

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62150

5VZFE..VZN167,172

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62150

5VZFE..VZN167,172

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62190

5VZFE..VZN167,172..MTM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-62020

5VZFE..VZN167,172

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-62010

5VZFE..VZN167,172

 1
12392A - INSULATOR, ENGINE MOUNTING HEAT, REAR
12392-62040

5VZFE..VZN167,172

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VZN167,172

 1
Common parts
90119-10521
90119-10777
90179-10201
90179-12087
91511-B0825
91641-K0816
91642-H1022
91651-40814
Linked diagrams
1903
