VZN167R-PRPSEQ (2002)

Toyota Hilux

Production Aug 2002 - Feb 2005
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0502)5VZFE

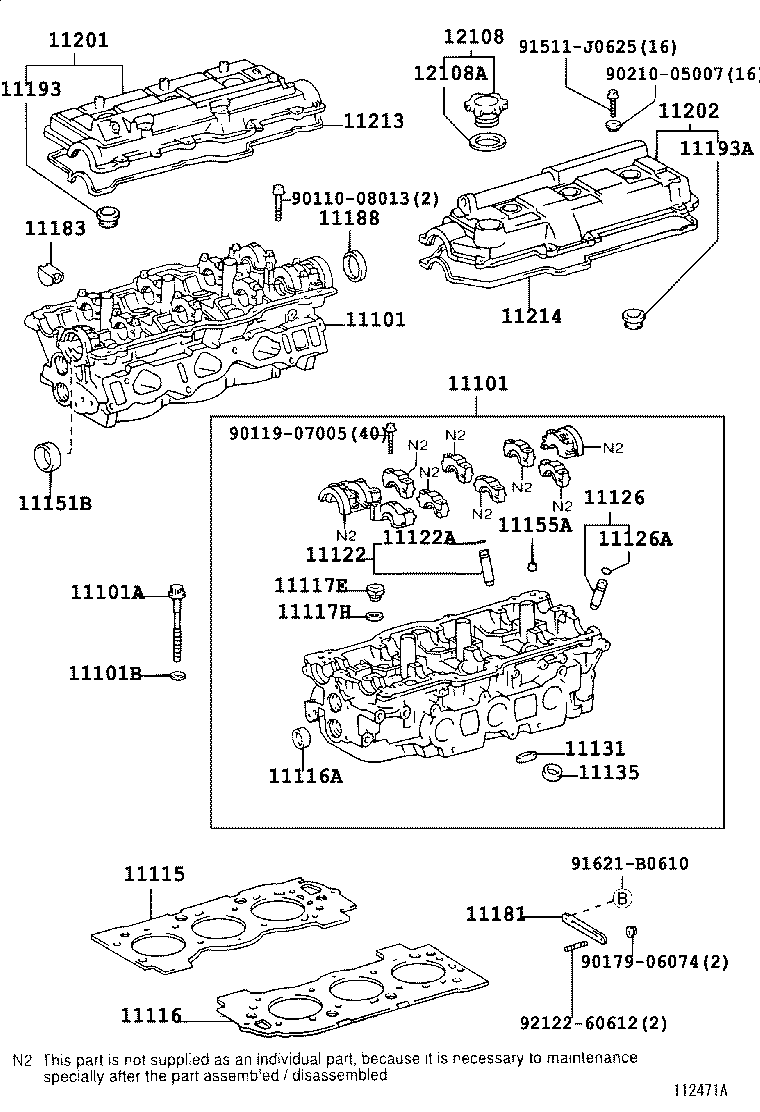

Click highlighted areas on diagram

diagram 11101 11101 11101A 11101B 11115 11116 11116A 11117E 11117H 11122 11122A 11126 11126A 11131 11135 11151B 11155A 11181 11183 11188 11193 11193A 11201 11202 11213 11214 12108 12108A 9011008013 9011907005 9017906074 9021005007 91511J0625 91621B0610 9212260612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-69136

5VZFE..VZN167,172

 2
11101 - HEAD SUB-ASSY, CYLINDER
11101-69136

5VZFE..VZN167,172

 2
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02077

5VZFE..VZN167,172

 16
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11028

5VZFE..VZN167,172

 16
11115 - GASKET, CYLINDER HEAD
11115-62080

5VZFE..VZN167,172

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-62080

5VZFE..VZN167,172

 1
11116A - PLUG, TIGHT, NO.1
96411-43000

5VZFE..VZN167,172

 8
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-24011

5VZFE..VZN167,172

 4
11117H - GASKET(FOR WATER HOLE)
90430-24013

5VZFE..VZN167,172

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-16010

5VZFE..VZN167,172

STD

 12
11123-16010

5VZFE..VZN167,172

O/S 0.05

 12
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10004

5VZFE..VZN167,172

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-16010

5VZFE..VZN167,172

STD

 12
11123-16010

5VZFE..VZN167,172

O/S 0.05

 12
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10004

5VZFE..VZN167,172

 12
11131 - SEAT, INTAKE VALVE
11132-62050

5VZFE..VZN167,172

O/S 0.03

 12
11131-62050

5VZFE..VZN167,172

STD

 12
11135 - SEAT, EXHAUST VALVE
11136-20040

5VZFE..VZN167,172

O/S 0.03

 12
11135-20040

5VZFE..VZN167,172

STD

 12
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-38051

5VZFE..VZN167,172

 2
11155A - PIN, RING W/HEAD
90253-10004

5VZFE..VZN167,172

 16
11181 - PLATE, CYLINDER HEAD, REAR
11181-62031

5VZFE..VZN167,172

 1
11183 - PLUG, SEMICIRCULAR
11183-20010

5VZFE..VZN167,172

 4
11188 - PLUG, CAMSHAFT HOUSING
11188-62010

5VZFE..VZN167,172

 2
11193 - GASKET, SPARK PLUG TUBE
11193-70010

5VZFE..VZN167,172

 3
11193A - GASKET, SPARK PLUG TUBE, LH
11193-70010

5VZFE..VZN167,172

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-62040

5VZFE..VZN167,172

 1
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-62050

5VZFE..VZN167,172

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-62020

5VZFE..VZN167,172

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-62020

5VZFE..VZN167,172

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

5VZFE..VZN167,172

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

5VZFE..VZN167,172

 1
Common parts
90110-08013
90119-07005
90179-06074
90210-05007
91511-J0625
91621-B0610
92122-60612
