VZN167R-PRMDEQ (2002)

Toyota Hilux

Production Aug 2002 - Feb 2005
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0502)5VZFE

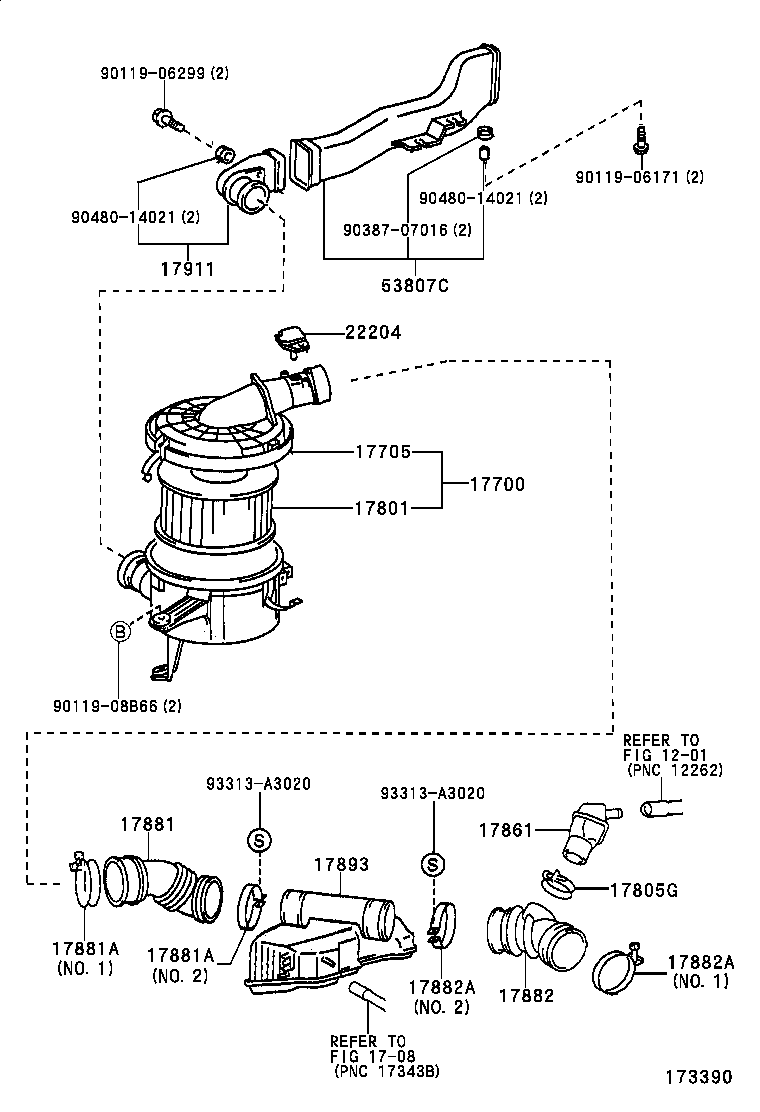

Click highlighted areas on diagram

diagram 1201 1708 17700 17705 17801 17805G 17861 17881 17881A 17881A 17882 17882A 17882A 17893 17911 22204 53807C 9011906171 9011906299 9011908B66 9038707016 9048014021 9048014021 93313A3020 93313A3020
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-62130

5VZFE..VZN167,172

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-62100

5VZFE..VZN167,172

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-62010

5VZFE..VZN167,172

 1
17805G - CLAMP, HOSE(FOR AIR CONNECTOR)
96111-10500

5VZFE..VZN167,172

 1
17861 - CONNECTOR, INTAKE AIR
17659-62010

5VZFE..VZN167,172

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-62190

5VZFE..VZN167,172

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

5VZFE..VZN167,172

NO.1

 1
90460-73002

5VZFE..VZN167,172

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

5VZFE..VZN167,172

NO.1

 1
90460-73002

5VZFE..VZN167,172

NO.2

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-62020

5VZFE..VZN167,172

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5VZFE..VZN167,172

NO.1

 1
90460-73002

5VZFE..VZN167,172

NO.2

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5VZFE..VZN167,172

NO.1

 1
90460-73002

5VZFE..VZN167,172

NO.2

 1
17893 - RESONATOR, INTAKE AIR
17893-62080

5VZFE..VZN167,172

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35010

5VZFE..VZN167,172

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010

5VZFE..VZN167,172

 1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-35050

VZN167,172

 1
Common parts
90119-06171
90119-06299
90119-08B66
90387-07016
90480-14021
93313-A3020
Linked diagrams
1201
1708
