TGN26R-PRPSKT (2005)

Toyota Hilux

Production Jan 2005 - Aug 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )TGN16,26,36..4FC

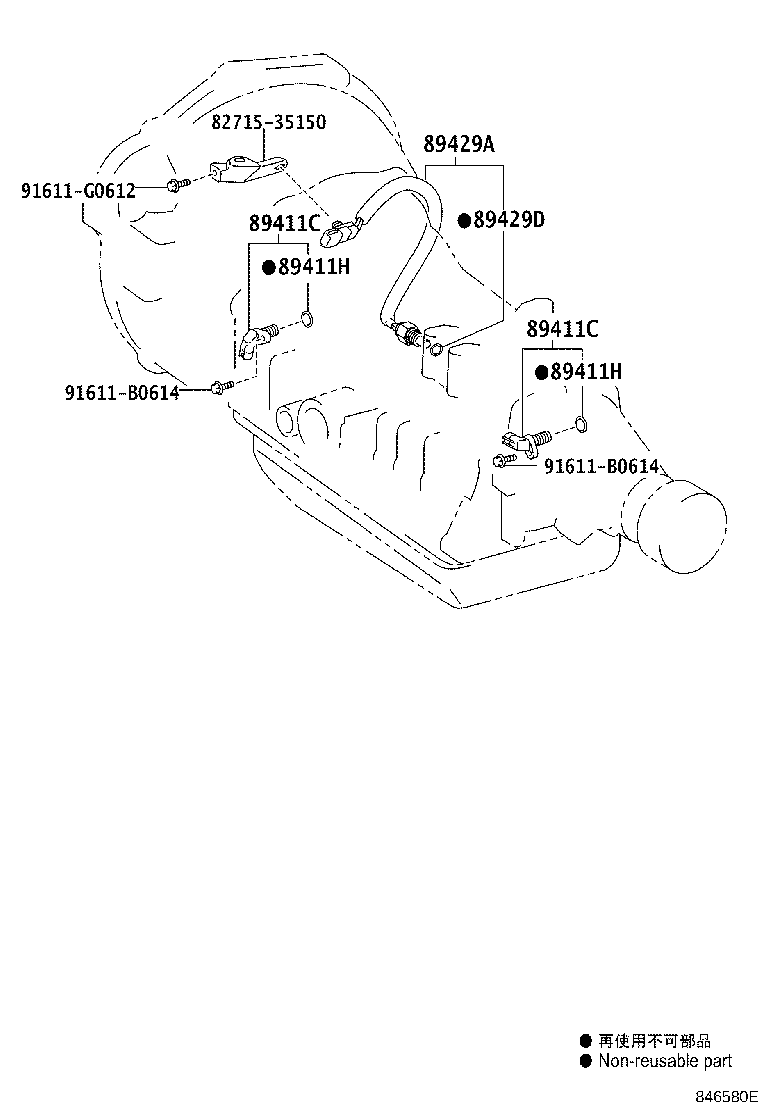

Click highlighted areas on diagram

diagram 8271535150 89411C 89411C 89411H 89411H 89429A 89429D 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
89411C - SENSOR, SPEED
89411-50010

TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)

 2
89411C - SENSOR, SPEED
89411-50010

TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)

 2
89411H - RING, O
90301-11008

TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)

 2
89411H - RING, O
90301-11008

TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)

 2
89429A - SENSOR, TEMPERATURE
89429-34010

KUN16,2#..4FC

 1
89429D - RING, O(FOR TEMPERATURE SENSOR)
90301-11006

TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)

 1
Common parts
82715-35150
91611-B0614
91611-G0612
