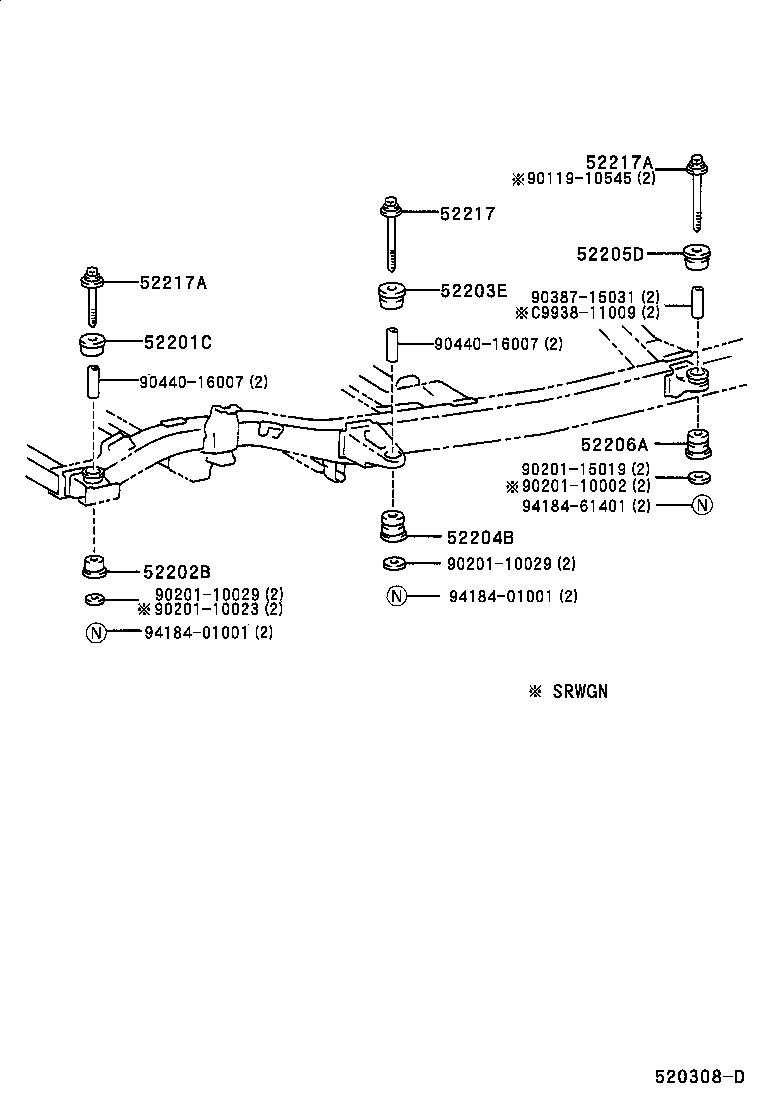

Toyota Hilux TGN15 CAB MOUNTING & BODY MOUNTING

Part #	Description	Period	Qty
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52205-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)	07/2011 - 09/2016	2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52205-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)	07/2011 - 09/2016	2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52205-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)	07/2011 - 09/2016	2
52206A - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER
52206-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)	07/2011 - 09/2016	2
52217 - BOLT, BODY MOUNTING
52217-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	2
52217A - BOLT, BODY MOUNTING
52217-0K020	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	2
52217B - BOLT, BODY MOUNTING
52217-0K020	GGN15,25..DCB,SCB;GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(DCB,SADCB,SCB,THDCB,THSCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	2
52217B - BOLT, BODY MOUNTING
52217-0K020	GGN15,25..DCB,SCB;GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(DCB,SADCB,SCB,THDCB,THSCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	2
52217B - BOLT, BODY MOUNTING
52217-0K020	GGN15,25..DCB,SCB;GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(DCB,SADCB,SCB,THDCB,THSCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52219-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB NO.3	07/2011 - 09/2016	2
52219-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH NO.2	07/2011 - 12/2999	2
52218-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH NO.1	07/2011 - 12/2999	2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52219-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB NO.3	07/2011 - 09/2016	2
52219-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH NO.2	07/2011 - 12/2999	2
52218-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH NO.1	07/2011 - 12/2999	2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52219-0K010	GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB NO.3	07/2011 - 09/2016	2
52219-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH NO.2	07/2011 - 12/2999	2
52218-0K010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH NO.1	07/2011 - 12/2999	2
Common parts
90119-T0193
94188-01201

Part #	Description	Period	Qty	Price
Common parts
90119-10545
90201-10002
90201-10023
90201-10029
90201-15019
90387-15031
90440-16007
94184-01001
94184-61401
C9938-11009

TGN15R-TRMDKN (2011)

(9708- )SCB,SRWGN,THSCB

(0408- )

(1107- )

(1505- )

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
