TGN15R-TRMDKN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN145,15#,LN14#,15#,RZN14#,154,YN140

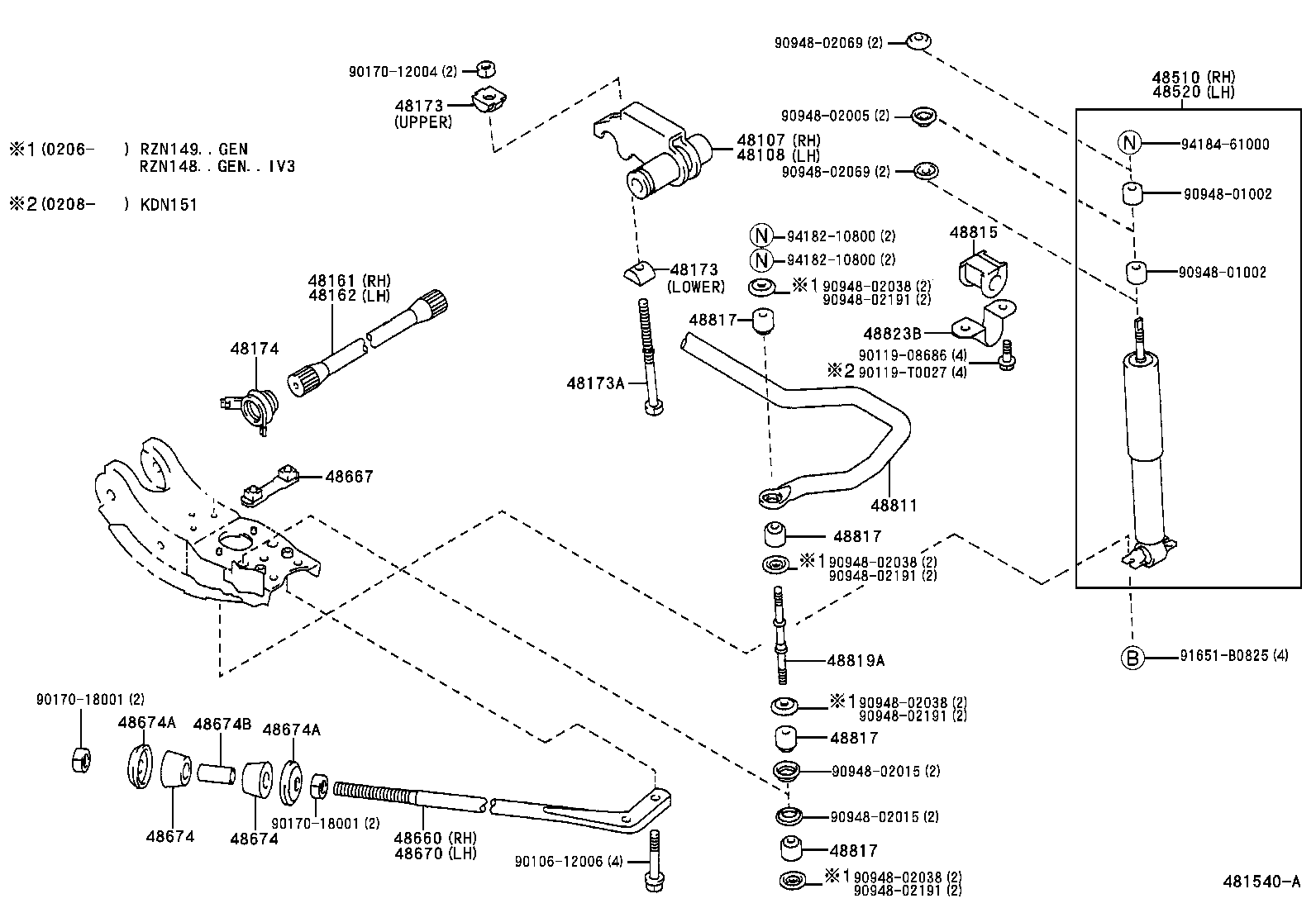

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48173 48173 48173A 48174 48510 48520 48660 48667 48670 48674 48674 48674A 48674A 48674B 48811 48815 48817 48817 48817 48817 48819A 48823B 9010612006 9011908686 90119T0027 9017012004 9017018001 9017018001 9094801002 9094801002 9094802005 9094802015 9094802015 9094802038 9094802038 9094802038 9094802038 9094802069 9094802069 9094802191 9094802191 9094802191 9094802191 91651B0825 9418210800 9418210800 9418461000
Part # Description Qty Price
Common parts
90106-12006
90119-08686
90119-T0027
90170-12004
90170-18001
90948-01002
90948-02005
90948-02015
90948-02038
90948-02069
90948-02191
91651-B0825
94182-10800
94184-61000

(0408- )GGN15,KUN1#,LAN15,TGN1#

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48304 48510 48510 48510B 48510J 48510Q 48520 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48817 48817 48817A 48817A 48820B 48824 90119T0242 90119T0245 90178T0041 9418461001
Part # Description Qty Price
Common parts
90119-T0242
90119-T0245
90178-T0041
94184-61001

(1107- )GGN15,KUN1#,LAN15,TGN1#

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48304 48510 48510 48510B 48510J 48510Q 48520 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48817 48817 48817A 48817A 48820B 48824 90119T0242 90119T0245 90178T0041 9418461001
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-0K040

KUN15,TGN15,16..(SCB,XTR)..(HDCR,HTWC)..SA

 1
48132 - SPRING, FRONT COIL, LH
48131-0K040

KUN15,TGN15,16..(SCB,XTR)..(HDCR,HTWC)..SA

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-0K010

GGN15,KUN1#,LAN15,TGN1#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09J80

KUN15,LAN15,TGN15..SCB..SA

MARK 48510-0K040,ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
48510-0K530

KUN15,LAN15,TGN15..SCB..SA

MARK 48510-0K530

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09J80

KUN15,LAN15,TGN15..SCB..SA

MARK 48510-0K040,ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
48510-0K530

KUN15,LAN15,TGN15..SCB..SA

MARK 48510-0K530

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2003

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-T1001

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-T2004

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-09D30

KUN15,LAN15,TGN15..SCB..SA

MARK 48520-0K040,ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
48520-0K530

KUN15,LAN15,TGN15..SCB..SA

MARK 48520-0K530

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-09D30

KUN15,LAN15,TGN15..SCB..SA

MARK 48520-0K040,ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
48520-0K530

KUN15,LAN15,TGN15..SCB..SA

MARK 48520-0K530

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-T0050

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 6
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90178-T0048

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90178-T0048

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94188-01241

KUN26..ARL,GEN,PHL,SA,TH;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36

 2
94188-01241

KUN26..SCB..5FC;KUN26..5F..ARL..IV3;KUN26..THDCB..(4FC,5F);KUN35..DCB,SCB,SMT,THDCB;KUN26..(DCB,SADCB,SCB,SMT,XTR)..(ARL,GEN,PHL,SA,TH)..CBU;GGN15,25,35,KUN1#,25,36,LAN15,25,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

(J)

 2
90177-T0015

KUN26..SCB..5FC;KUN26..5F..ARL..IV3;KUN26..THDCB..(4FC,5F);KUN35..DCB,SCB,SMT,THDCB;KUN26..(DCB,SADCB,SCB,SMT,XTR)..(ARL,GEN,PHL,SA,TH)..CBU;GGN15,25,35,KUN1#,25,36,LAN15,25,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

(L)

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
48811 - BAR, STABILIZER, FRONT
48811-0K021

KUN15,LAN15,TGN15,16..(SCB,XTR)..SA

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-0K070

KUN15..SMT..DLX;TGN16..SCB,SMT,XTR;GGN15,KUN1#,LAN15,TGN10,11,15..SCB,XTR

 2
48817 - CUSHION, FRONT STABILIZER
90948-T1002

GGN15,KUN1#,LAN15,TGN1#

 4
48817 - CUSHION, FRONT STABILIZER
90948-T1002

GGN15,KUN1#,LAN15,TGN1#

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-T2002

GGN15,KUN1#,LAN15,TGN1#

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-T2002

GGN15,KUN1#,LAN15,TGN1#

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-0K010

GGN15,KUN1#,LAN15,TGN1#

 1
48824 - BRACKET, STABILIZER, FRONT
48824-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
Common parts
90119-T0242
90119-T0245
90178-T0041
94184-61001
