TGN15R-TRMDKN (2011)
Toyota Hilux
ILLUST NO. 3 OF 3(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC102 | ||||
| 90016-AC103 | ||||
| 90016-AX201 | ||||
| 90080-10258 | ||||
| 90080-56074 | ||||
| 90119-08B11 | ||||
| 90119-T0126 | ||||
| 90119-T0200 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
(1107- )KUN15,LAN15,TGN15..RHD..DLX..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K020 |
KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10252 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 90412-10251 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10252 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 90412-10251 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K030 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA |
1 | ||
| 47313-0K010 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2005 |
GGN15,KUN1#,LAN15,TGN1# LH |
1 | ||
| 90947-T2004 |
GGN15,KUN1#,LAN15,TGN1# RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2005 |
GGN15,KUN1#,LAN15,TGN1# LH |
1 | ||
| 90947-T2004 |
GGN15,KUN1#,LAN15,TGN1# RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KUN15,TGN16..CNG,HDCR,HTWC;GGN15,KUN1#,LAN15,TGN10,11,15..(DCR,DEFI,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,SA) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KUN15,TGN16..CNG,HDCR,HTWC;GGN15,KUN1#,LAN15,TGN10,11,15..(DCR,DEFI,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,SA) |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90414-10055 |
KUN35..IV3;KUN25..SCB..SA;TGN16..4FC..SR;KUN25..CO,GCC,GEN;TGN26..LHD..DLX..HTWC;KUN35..DCB..DLX..(CO,SA);KUN25..LHD..DCB..DLX..SA;KUN15,35..(THDCB,XTR)..GEN;TGN16..DCB..DLX..(GCC,GEN);TGN16,36..SCB..HTWC..(ANCOM,GCC,GEN,LA);KUN1#,26,LAN15,25,35,TGN10,11,15..(DCB,SCB,SMT,THDCB,XTR)..DLX..(DCR,DEFI,HTWC)..(GCC,GEN,SA,TH) |
1 | ||
| 90413-10309 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN15,KUN1#,LAN15,TGN1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN15,KUN1#,LAN15,TGN1# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K020 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K030 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA |
1 | ||
| 47315-0K010 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K020 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0K050 |
KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0K020 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2011 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10311 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K030 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA |
1 | ||
| 47323-0K010 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K020 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-0K011 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K011 |
GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K011 |
GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47353-0K010 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47354-0K010 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1014 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1008 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1009 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-T0007 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1 |
1 | ||
| 90949-T1006 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.2 |
5 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-T0007 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1 |
1 | ||
| 90949-T1006 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.2 |
5 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0244 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

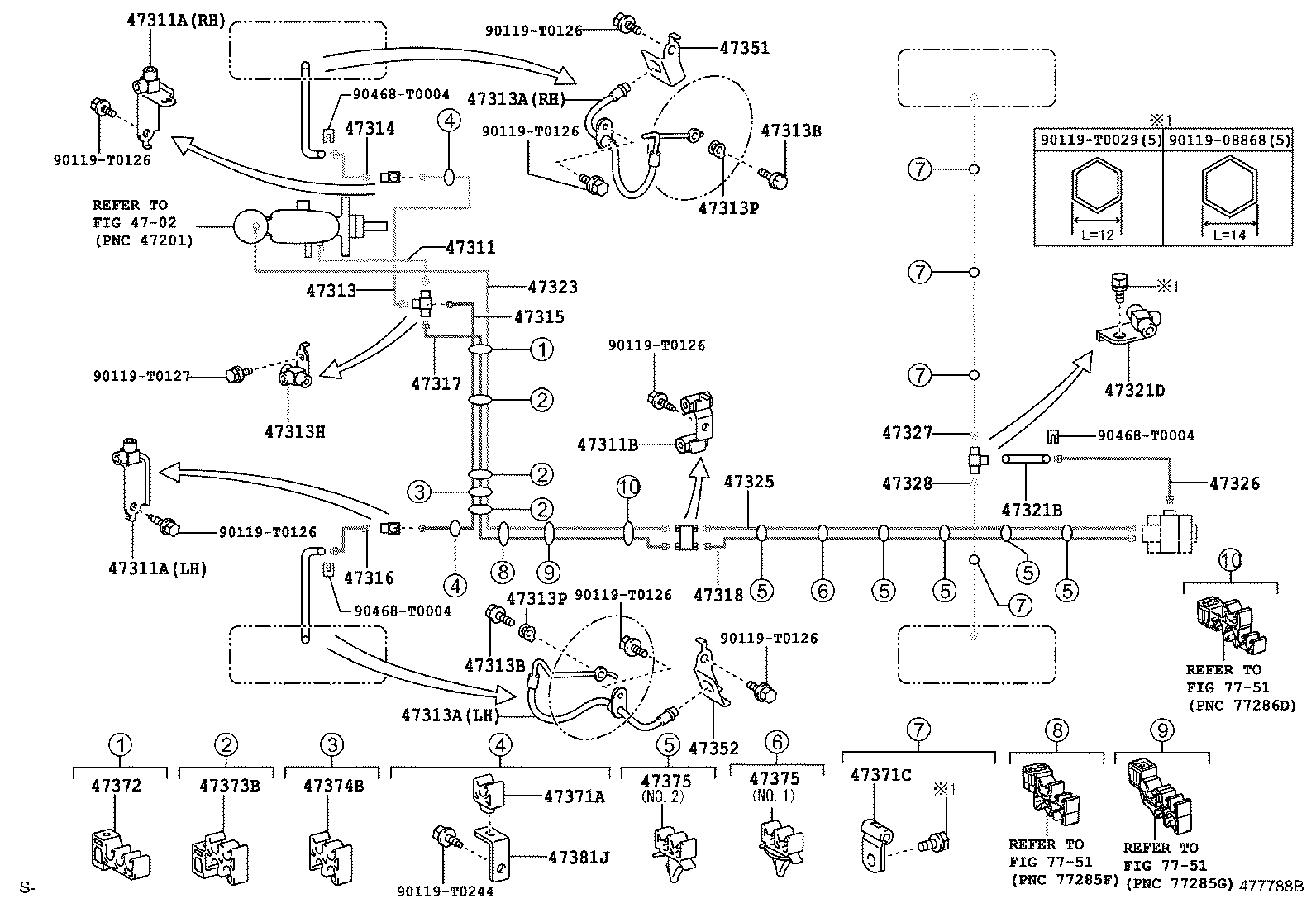

ILLUST NO. 1 OF 3(1108- )KUN15,LAN15,TGN15..RHD..SA
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K020 |
KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10252 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 90412-10251 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10252 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 90412-10251 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0K020 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K030 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA |
1 | ||
| 47313-0K010 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2005 |
GGN15,KUN1#,LAN15,TGN1# LH |
1 | ||
| 90947-T2004 |
GGN15,KUN1#,LAN15,TGN1# RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2005 |
GGN15,KUN1#,LAN15,TGN1# LH |
1 | ||
| 90947-T2004 |
GGN15,KUN1#,LAN15,TGN1# RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KUN15,TGN16..CNG,HDCR,HTWC;GGN15,KUN1#,LAN15,TGN10,11,15..(DCR,DEFI,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,SA) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KUN15,TGN16..CNG,HDCR,HTWC;GGN15,KUN1#,LAN15,TGN10,11,15..(DCR,DEFI,HTWC)..(ARL,GCC,GEN,IDN,PHL,PKN,SA) |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90414-10055 |
KUN35..IV3;KUN25..SCB..SA;TGN16..4FC..SR;KUN25..CO,GCC,GEN;TGN26..LHD..DLX..HTWC;KUN35..DCB..DLX..(CO,SA);KUN25..LHD..DCB..DLX..SA;KUN15,35..(THDCB,XTR)..GEN;TGN16..DCB..DLX..(GCC,GEN);TGN16,36..SCB..HTWC..(ANCOM,GCC,GEN,LA);KUN1#,26,LAN15,25,35,TGN10,11,15..(DCB,SCB,SMT,THDCB,XTR)..DLX..(DCR,DEFI,HTWC)..(GCC,GEN,SA,TH) |
1 | ||
| 90413-10309 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN15,KUN1#,LAN15,TGN1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GGN15,KUN1#,LAN15,TGN1# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K020 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K030 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA |
1 | ||
| 47315-0K010 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K020 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0K050 |
KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0K020 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0K020 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2011 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10311 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K030 |
KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA |
1 | ||
| 47323-0K010 |
KUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K020 |
GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-0K011 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K011 |
GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K011 |
GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47353-0K010 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47354-0K010 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1014 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1008 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1009 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-T0007 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1 |
1 | ||
| 90949-T1006 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.2 |
5 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90469-T0007 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1 |
1 | ||
| 90949-T1006 |
KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.2 |
5 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0244 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 3 OF 3(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-04010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-0D040 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-0K011 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-0K010 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-0K010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90016-AX201 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90016-AX201 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90080-46308 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90016-AH101 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90016-AH101 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-04010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-04010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-0K010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-04010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-04010 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-04010 |
GGN25..5F;KUN36..RHD;KUN26..IART;GGN25..5FC..DLX;KUN26,36..DLX..DCR..LA;KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);GGN25,KUN26..(5F,5FC)..(ANCOM,CO,GEN,PHL,SA,TH);GGN15,KUN1#,25,35,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90016-AC102 | ||||
| 90016-AC103 | ||||
| 90016-AX201 | ||||
| 90080-10258 | ||||
| 90080-56074 | ||||
| 90119-T0126 | ||||
| 90119-T0200 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
ILLUST NO. 2 OF 2(1505- )RHD
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 44521-0D010 | ||||
| 44521-12050 | ||||
| 90119-T0199 | ||||
| 90179-08200 | ||||
| 90182-T0036 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
