TGN15R-TRMDKN (2011)
Toyota Hilux

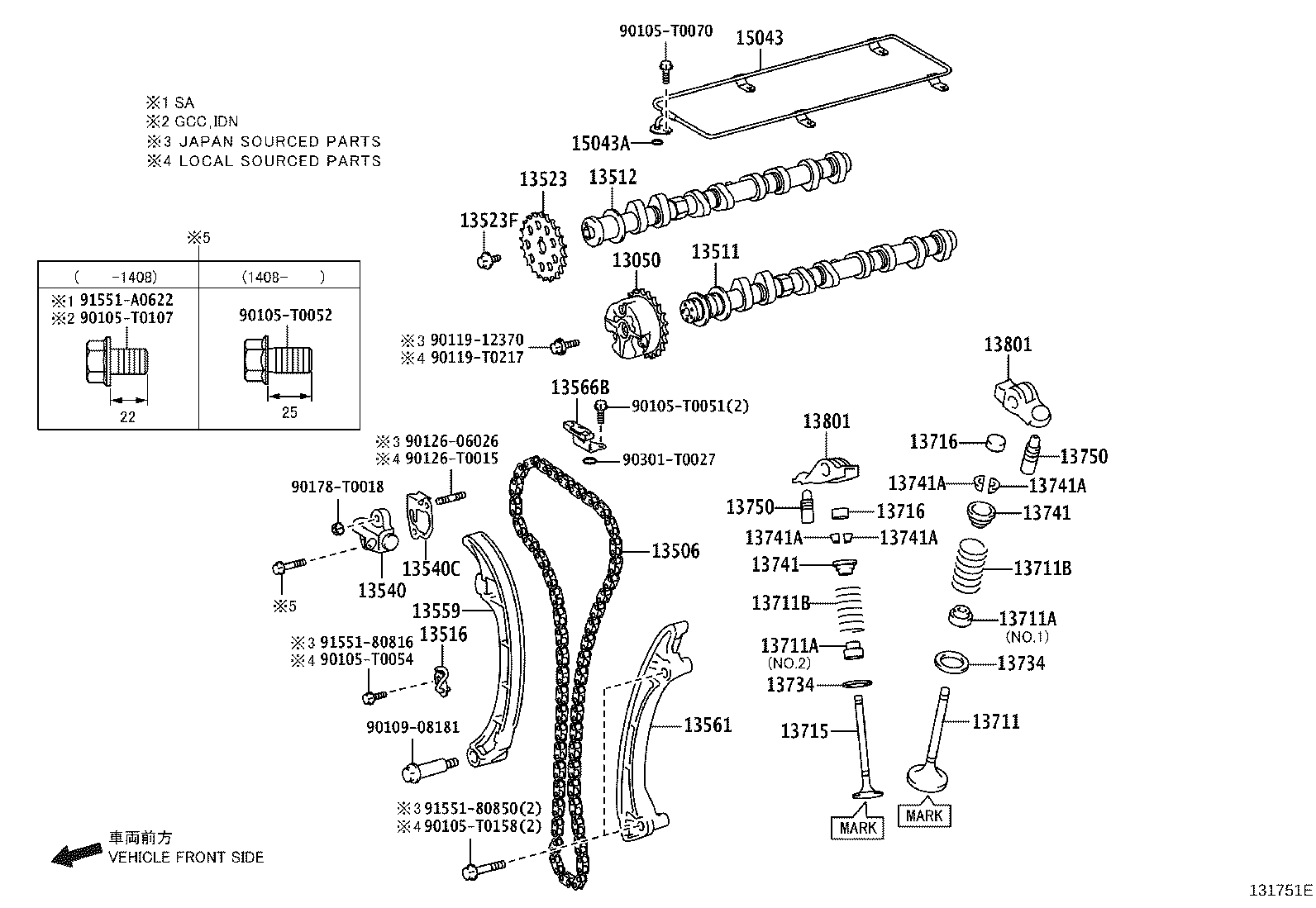

(1107- )1TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-75010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13050-75030 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-75060 |
1TRFE..TGN15..SA (J) |
1 | ||
| 13506-0C030 |
1TRFE..TGN15..SA (L) |
1 | ||
| 13506-0C010 |
1TRFE..TGN15..SA |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0C010 |
2TRFE..TGN16,26..ANCOM,CO,LA,SA;1TRFE,2TRFE..TGN10,15,36..DCB,SCB |
1 | ||
| 13501-0C011 |
2TRFE..TGN16,26..ANCOM,CO,LA,SA;1TRFE,2TRFE..TGN10,15,36..DCB,SCB |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0C010 |
2TRFE..TGN16,26..ANCOM,CO,LA,SA;1TRFE,2TRFE..TGN10,15,36..DCB,SCB |
1 | ||
| 13516 - JET, OIL | ||||
| 13516-75040 |
1TRFE..TGN15..SA (J) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90105-12149 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-75040 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13540-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13540-0C011 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13540-0C021 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13540-0C020 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13540-75041 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13552-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13552-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13552-75030 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0C010 |
1TRFE..TGN15..SA |
1 | ||
| 13559-75050 |
1TRFE..TGN15..SA (J) |
1 | ||
| 13559-0C030 |
1TRFE..TGN15..SA (L) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0C010 |
1TRFE..TGN15..SA |
1 | ||
| 13561-75050 |
1TRFE..TGN15..SA (J) |
1 | ||
| 13561-0C030 |
1TRFE..TGN15..SA (L) |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-0C020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
1 | ||
| 13566-75020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J) |
1 | ||
| 13566-0C010 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0C010 |
1TRFE..TGN15..SA |
8 | ||
| 13711-75100 |
1TRFE..TGN15..SA (J) |
8 | ||
| 13711-0C010 |
1TRFE..TGN15..SA (L) |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31084 |
1TRFE,2TRFE..TGN1#,26,36 NO.2 |
8 | ||
| 90080-31085 |
1TRFE,2TRFE..TGN1#,26,36 NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31084 |
1TRFE,2TRFE..TGN1#,26,36 NO.2 |
8 | ||
| 90080-31085 |
1TRFE,2TRFE..TGN1#,26,36 NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-T0016 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
16 | ||
| 90501-T0038 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L),MADE IN IDN |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-T0016 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
16 | ||
| 90501-T0038 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L),MADE IN IDN |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0C010 |
1TRFE..TGN15..SA |
8 | ||
| 13715-75090 |
1TRFE..TGN15..SA (J) |
8 | ||
| 13715-0C010 |
1TRFE..TGN15..SA (L) |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
16 | ||
| 13716-75020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
16 | ||
| 13716-75020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
16 | ||
| 13734-62020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
16 | ||
| 13734-62020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0C020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA MADE IN THAILAND |
16 | ||
| 13741-0C030 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA MADE IN THAILAND |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA MADE IN JAPAN |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0C020 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA MADE IN THAILAND |
16 | ||
| 13741-0C030 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA MADE IN THAILAND |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA MADE IN JAPAN |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13750-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-0C040 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13750-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-0C040 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13801-0C030 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13801-0C030 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
16 | ||
| 15043 - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY | ||||
| 15043-0C010 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
1 | ||
| 15043A - RING, O(FOR CAMSHAFT OIL DELIVERY PIPE) | ||||
| 90301-T0026 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0052 | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90105-T0107 | ||||
| 90105-T0158 | ||||
| 90109-08181 | ||||
| 90119-12370 | ||||
| 90119-T0217 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90301-T0027 | ||||
| 91551-80816 | ||||
| 91551-80850 | ||||
| 91551-A0622 | ||||

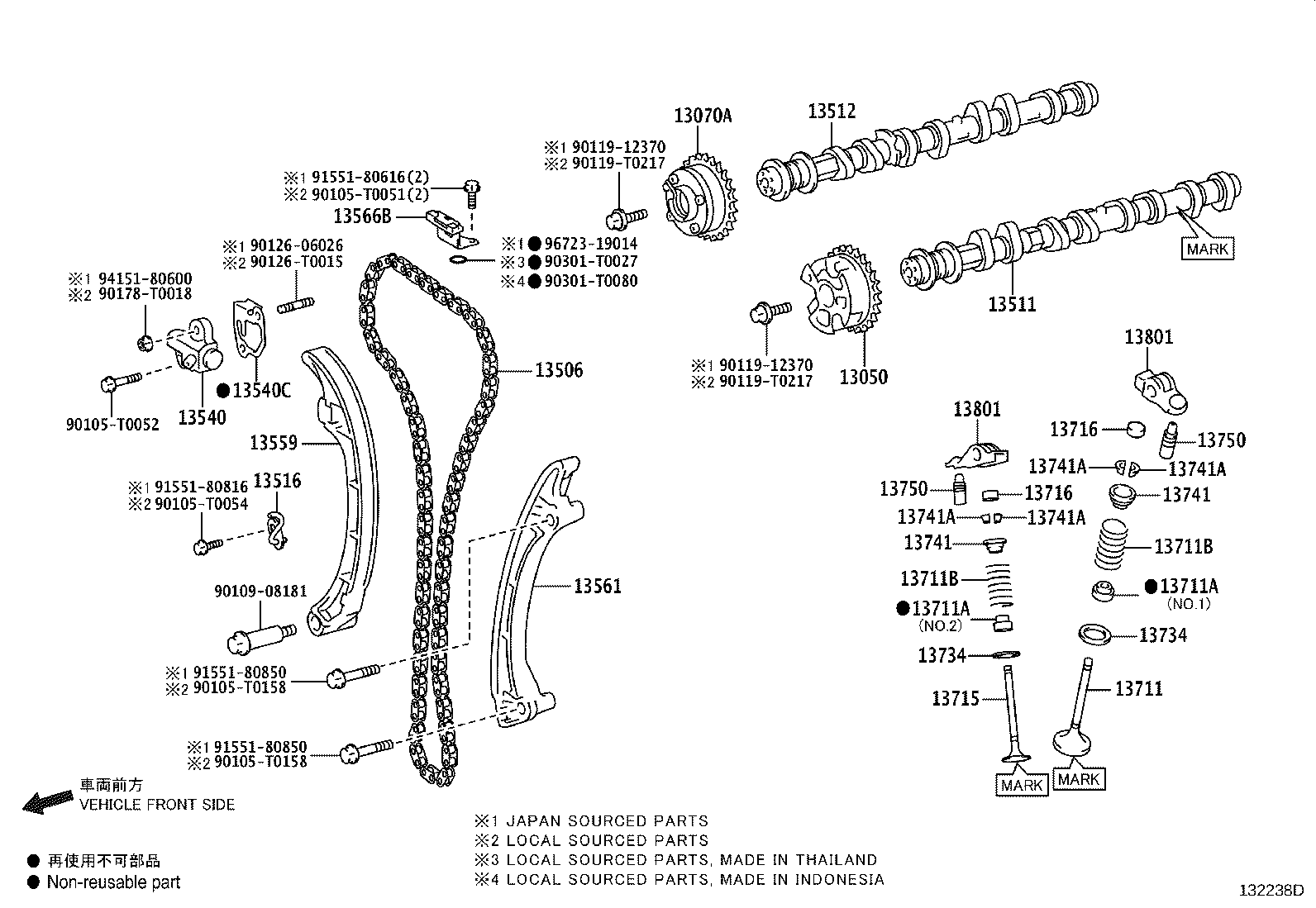

(1505- )1TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0052 | ||||
| 90105-T0054 | ||||
| 90105-T0158 | ||||
| 90109-08181 | ||||
| 90119-12370 | ||||
| 90119-T0217 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90301-T0027 | ||||
| 90301-T0080 | ||||
| 91551-80616 | ||||
| 91551-80816 | ||||
| 91551-80850 | ||||
| 94151-80600 | ||||
| 96723-19014 | ||||

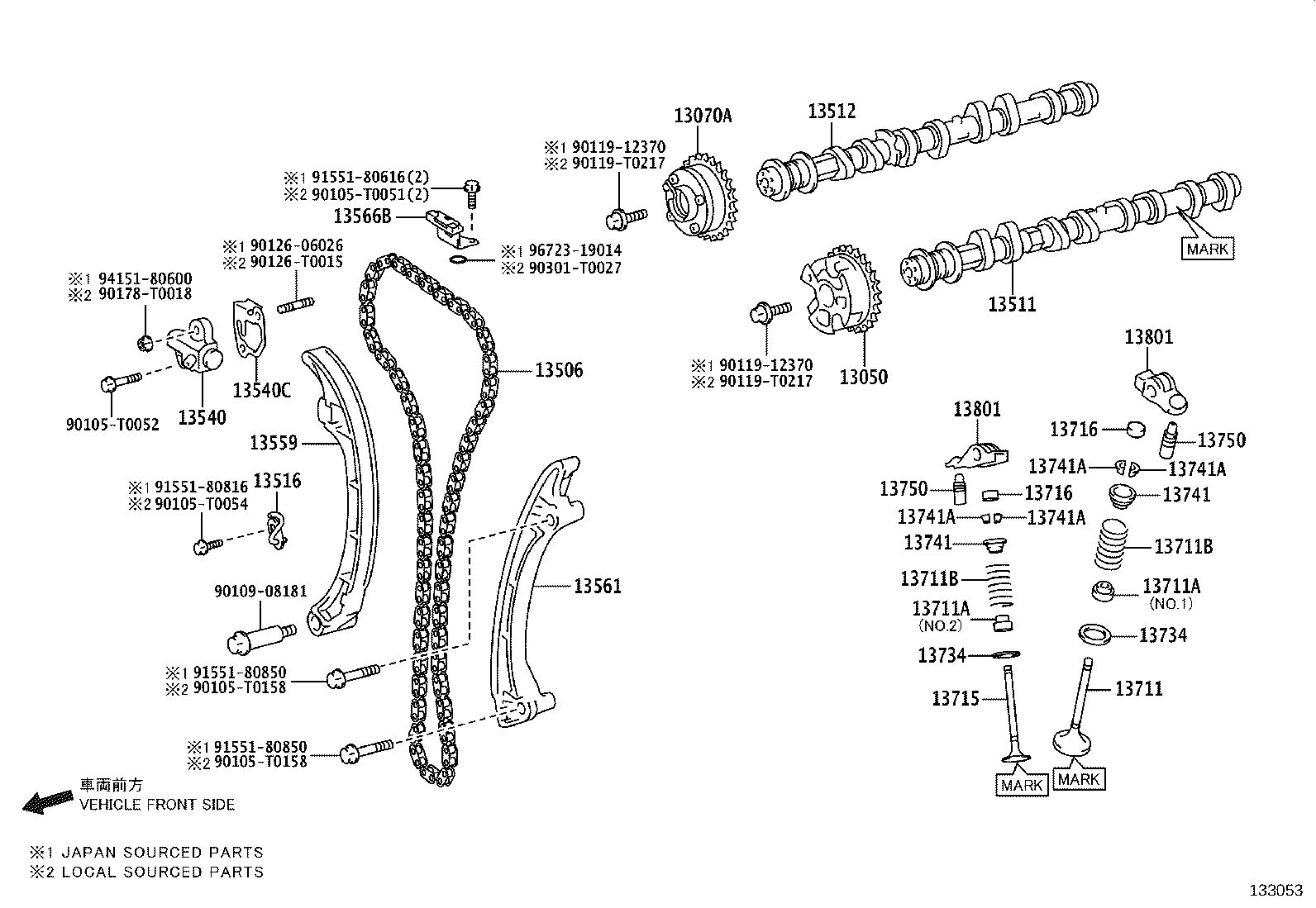

(2006- )1TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0052 | ||||
| 90105-T0054 | ||||
| 90105-T0158 | ||||
| 90109-08181 | ||||
| 90119-12370 | ||||
| 90119-T0217 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90301-T0027 | ||||
| 91551-80616 | ||||
| 91551-80816 | ||||
| 91551-80850 | ||||
| 94151-80600 | ||||
| 96723-19014 | ||||
