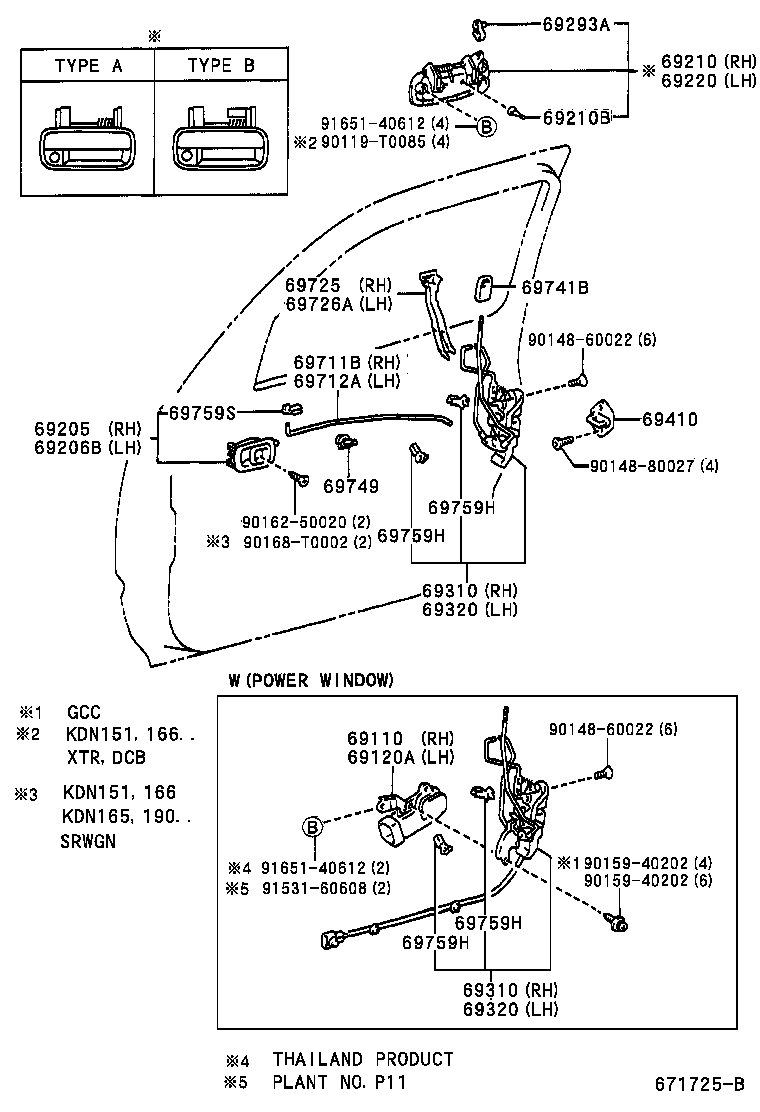

TGN15R-TRMDKN (2005)
Toyota Hilux
(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0085 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50020 | ||||
| 90168-T0002 | ||||
| 91531-60608 | ||||
| 91651-40612 | ||||
(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-02050 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-02030 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-0D070B3 |
KUN25..DCB..SR;KUN25..SCB..MA;KUN26..XTR..ARL;KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(DCB,SCB)..(GEN,SA,TH);KUN15,16,26,TGN36..(DCB,SCB,THDCB)..(ARL,GEN,PHL,SA,TH);GGN15,25,KUN25,3#,LAN15,25,35,TGN10,15,16..(5F,5FC)..(ARL,GEN,IDN,SA) GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-0D070B3 |
KUN25..DCB..SR;KUN25..SCB..MA;KUN26..XTR..ARL;KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(DCB,SCB)..(GEN,SA,TH);KUN15,16,26,TGN36..(DCB,SCB,THDCB)..(ARL,GEN,PHL,SA,TH);GGN15,25,KUN25,3#,LAN15,25,35,TGN10,15,16..(5F,5FC)..(ARL,GEN,IDN,SA) GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-02150 |
KUN15,25,35,LAN15,25,35,TGN15,16,26..SA NO PAINT REQ. |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-02100 |
KUN15,25,35,LAN15,25,35,TGN15,16,26..SA BLACK |
2 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-02150 |
KUN15,25,35,LAN15,25,35,TGN15,16,26..SA NO PAINT REQ. |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-02060 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-02060 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-0K060 |
KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA |
1 | ||
| 69030-0K060 |
KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA POWER DOOR LOCK-WITH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-0K060 |
KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA |
1 | ||
| 69030-0K060 |
KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA POWER DOOR LOCK-WITH |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0K060 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0K060 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
TGN16..XTR;KUN15..SMT..DCR;KUN25,35..DCB..LA;KUN15..LHD..(GCC,GEN);TGN16..DLX..(ARL,GCC,SA,TH);TGN26..DCB..DLX..(ANCOM,LA);TGN26..LHD..DLX..(GCC,GEN,SA);KUN15,TGN10..RHD..DLX..(GEN,IDN,SA);KUN15,LAN15,25,TGN36..DCB..DLX..(ANCOM,LA,SA);KUN25,35..(DCB,SCB,THDCB)..DLX..(GCC,GEN,PKN,SA);KUN10,26,36,LAN35,TGN11,15..DLX..(GCC,GEN,LA,SA)..CBU POWER DOOR LOCK-WITH |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-0K060 |
KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA |
1 | ||
| 69040-0K060 |
KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA POWER DOOR LOCK-WITH |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-0K060 |
KUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA |
1 | ||
| 69040-0K060 |
KUN35..SCB..SA;KUN15,25,TGN15,26..RHD..SA POWER DOOR LOCK-WITH |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0K040 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0K050 |
KUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0K050 |
KUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| 69749-32040 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0K050 |
KUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-0K050 |
KUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0010 | ||||
| 90148-T0015 | ||||
| 90541-04027 | ||||
| Linked diagrams | ||||
| 6751 | ||||
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0015 | ||||
| Linked diagrams | ||||
| 6751 | ||||
(1505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90167-T0027 | ||||
| 90189-T0005 | ||||
(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90167-T0027 | ||||
| 90189-T0005 | ||||
