TGN15R-TRMDKN (2005)
Toyota Hilux
(0408-0808)TGN15..SA ; (0408-0808)KUN10,15,LAN15,35..DCR,DEFI ; (0502-0808)TGN10,15

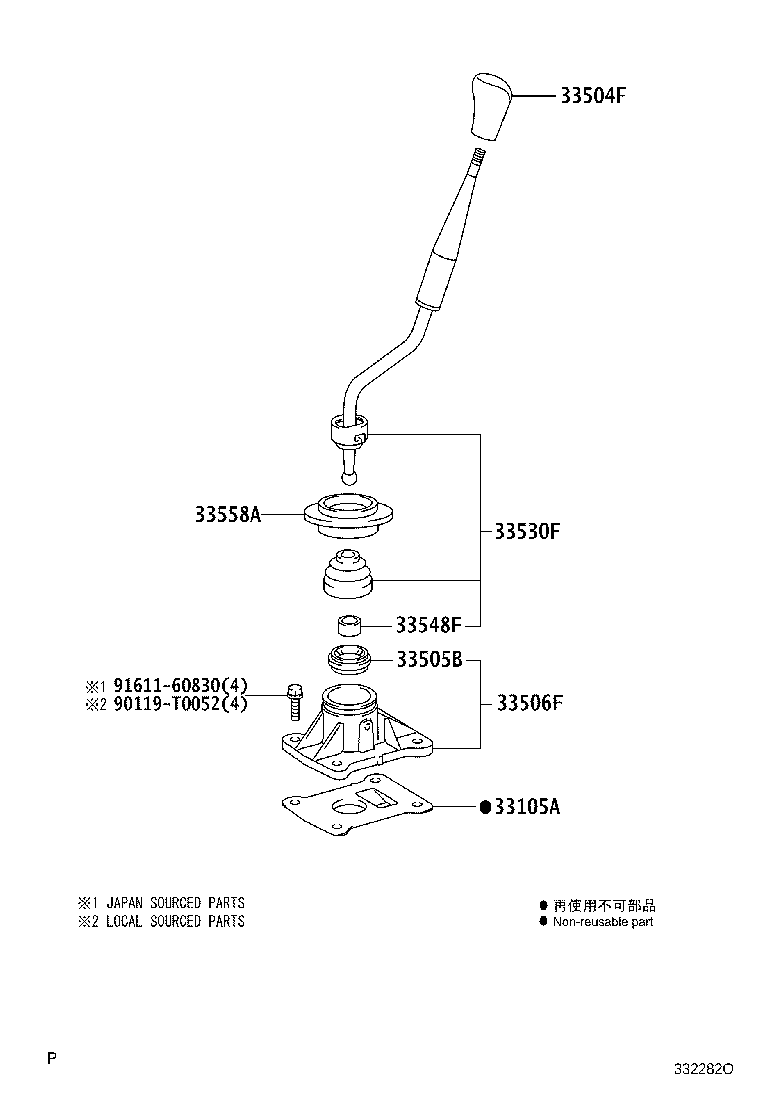

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-35060 |
TGN15;KUN10,LAN15,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-02070B0 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..5F..SA DK.GRAY,TRIM1# |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-35020 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-27071 |
KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K010 |
TGN10,15..RHD |
1 | ||
| 33530-0K012 |
TGN10,15..RHD |
1 | ||
| 33530-0K013 |
TGN15..SA |
1 | ||
| 33530-0K330 |
TGN15..SA |
1 | ||
| 33530-0K280 |
TGN15..SA |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 33548-04010 |
GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-71010 |
TGN36..DCB..SA;KUN15..XTR..DLX;KUN15..PHL..CBU;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10,36..(SCB,XTR)..(DLX,SR)..(HDCR,HTWC);GGN15,KUN1#,LAN15,35,TGN11,15..(DCB,SCB)..5F..(ARL,GCC,GEN,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-T0052 | ||||
| 91611-60830 | ||||
(0808- )LAN15,TGN10,15 ; (0808- )KUN15,LAN35..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-35060 |
TGN15;KUN10,LAN15,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-02070B0 |
GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..5F..SA DK.GRAY,TRIM1# |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-35020 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-27071 |
KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K010 |
TGN10,15..RHD |
1 | ||
| 33530-0K012 |
TGN10,15..RHD |
1 | ||
| 33530-0K013 |
TGN15..SA |
1 | ||
| 33530-0K330 |
TGN15..SA |
1 | ||
| 33530-0K280 |
TGN15..SA |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 33548-04010 |
GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-71010 |
TGN36..DCB..SA;KUN15..XTR..DLX;KUN15..PHL..CBU;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10,36..(SCB,XTR)..(DLX,SR)..(HDCR,HTWC);GGN15,KUN1#,LAN15,35,TGN11,15..(DCB,SCB)..5F..(ARL,GCC,GEN,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-T0052 | ||||
| 91611-60830 | ||||
| Linked diagrams | ||||
| 3302 | ||||
