Toyota Hilux TGN15 STARTER - JDM Part Detective

TGN15L-PRMDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 1TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

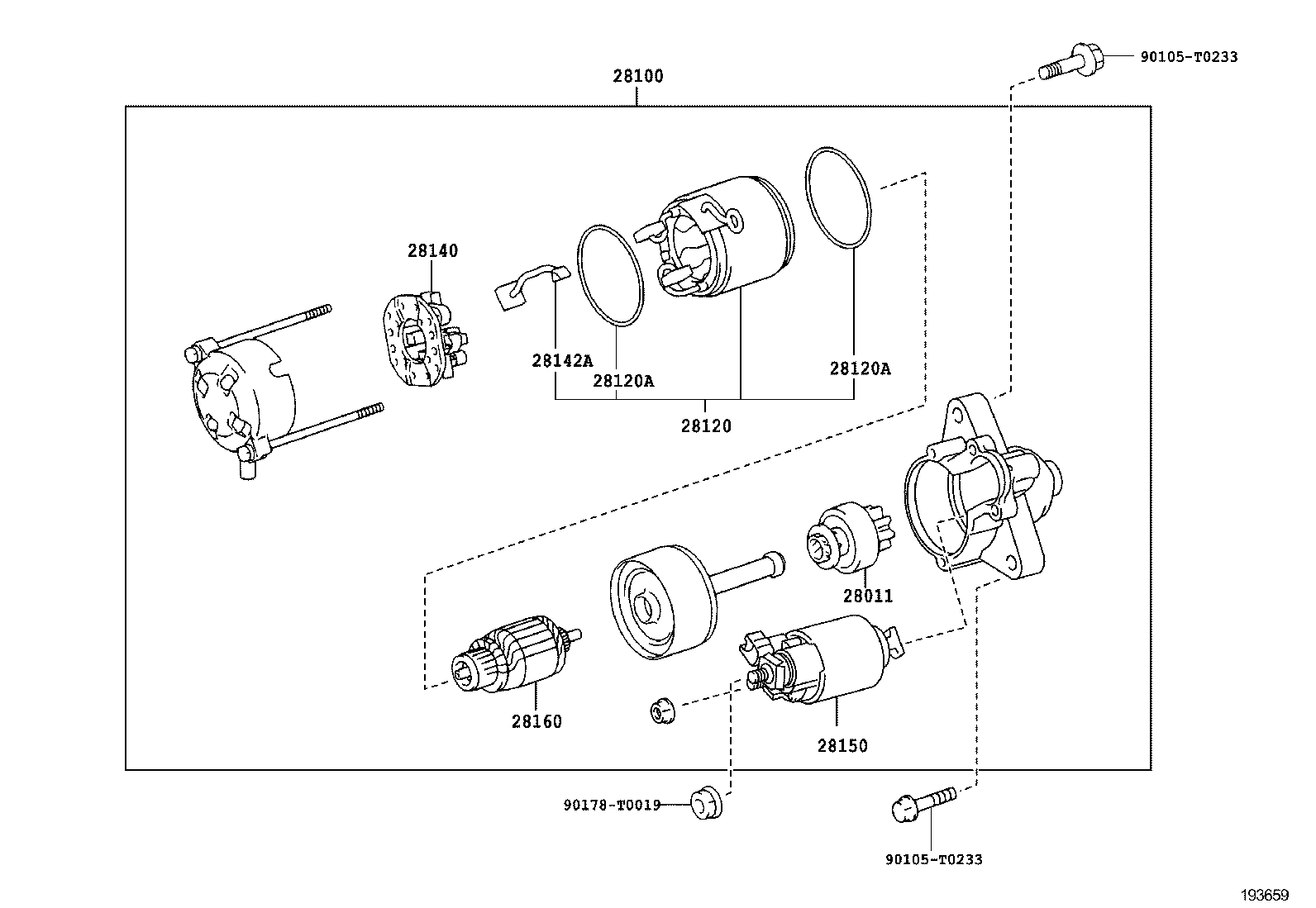

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020	1TRFE..TGN10,15..GCC,IDN	07/2011 - 03/2012	1
28011-0T070	1TRFE..TGN10,15..GCC,IDN	03/2012 - 04/2015	1
28100 - STARTER ASSY
28100-0C031	1TRFE..TGN10,15..GCC,IDN 12V 1.0KW	07/2011 - 04/2015	1
28120 - YOKE ASSY, STARTER
28120-0C030	1TRFE..TGN10,15..GCC,IDN	07/2011 - 04/2015	1
28120A - RING, O(FOR STARTER YOKE)
90068-14029	1TRFE..TGN10,15..GCC,IDN	03/2012 - 04/2015	2
90099-14092	1TRFE..TGN10,15..GCC,IDN	07/2011 - 03/2012	2
28120A - RING, O(FOR STARTER YOKE)
90068-14029	1TRFE..TGN10,15..GCC,IDN	03/2012 - 04/2015	2
90099-14092	1TRFE..TGN10,15..GCC,IDN	07/2011 - 03/2012	2
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020	1TRFE..TGN10,15..GCC,IDN	07/2011 - 03/2012	1
28140-0T070	1TRFE..TGN10,15..GCC,IDN	03/2012 - 04/2015	1
28142A - STARTER KIT
28142-70020	1TRFE..TGN10,15..GCC,IDN	07/2011 - 04/2015	2
28150 - SWITCH ASSY, MAGNET STARTER
28150-75150	1TRFE..TGN10,15..GCC,IDN	07/2011 - 03/2012	1
28150-0C030	1TRFE..TGN10,15..GCC,IDN	03/2012 - 04/2015	1
28160 - ARMATURE ASSY, STARTER
28160-70050	1TRFE..TGN10,15..GCC,IDN	07/2011 - 03/2012	1
28160-0T070	1TRFE..TGN10,15..GCC,IDN	03/2012 - 04/2015	1
Common parts
90105-T0233
90178-T0019

Click highlighted areas on diagram

12V 2.2KW
