TGN138L-DGTMGG (2016)

Toyota Hilux

Production Jul 2016 - Oct 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

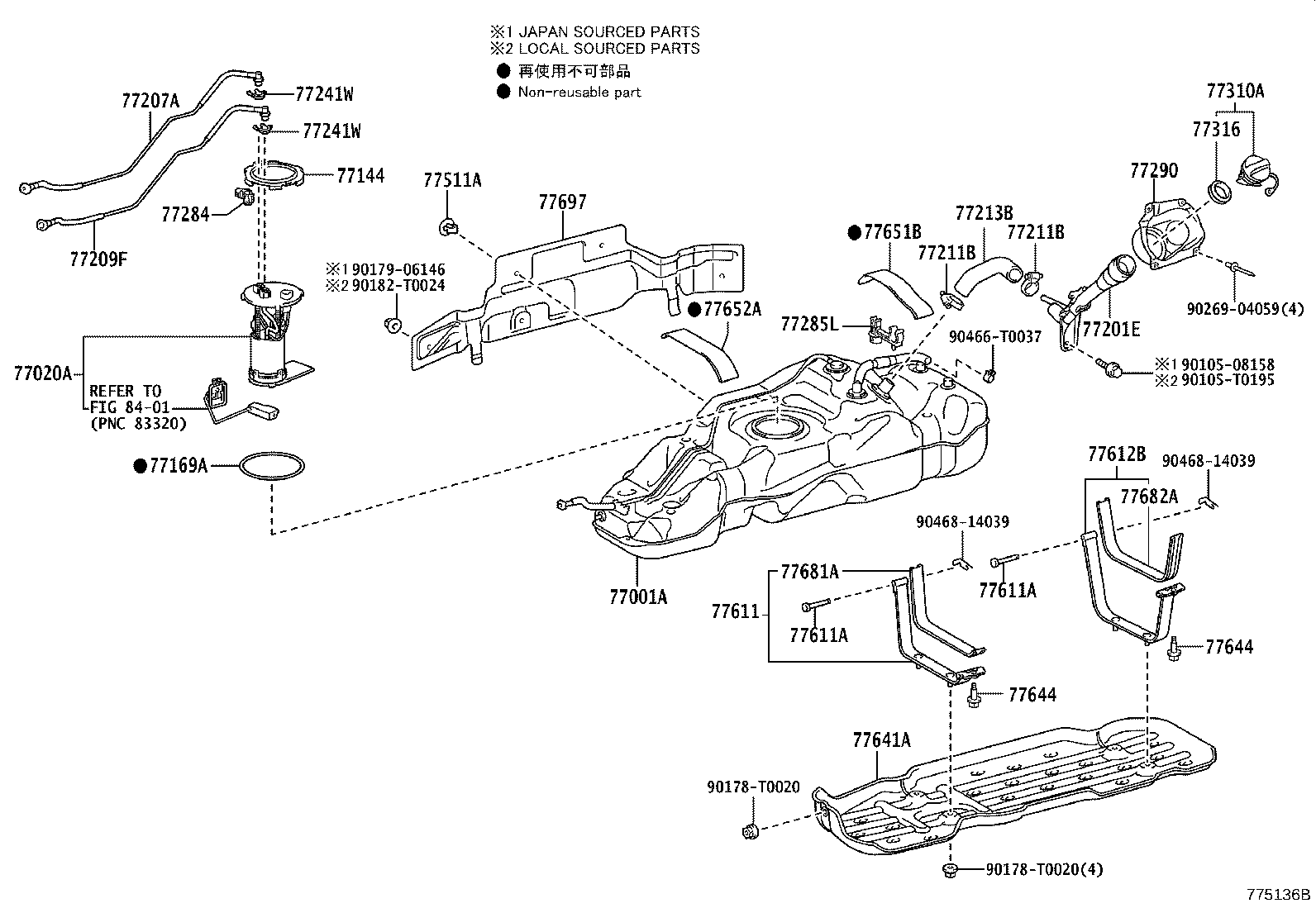

ILLUST NO. 1 OF 3(1607- )TGN128,138

Click highlighted areas on diagram

FUEL TANK

diagram 77001A 77020A 77144 77169A 77201E 77207A 77209F 77211B 77211B 77213B 77241W 77241W 77284 77285L 77290 77310A 77316 77511A 77611 77611A 77611A 77612B 77641A 77644 77644 77651B 77652A 77681A 77682A 77697 8401 90105T0195 90178T0020 90178T0020 9017906146 90182T0024 9026904059 90466T0037 9046814039 9046814039
Part # Description Qty Price
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0K400

TGN128,138

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0K040

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0K040

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77169-0K030

TGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,SA,TH

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-KK070

GUN125,126,13#..(ADC,ASC)..CBU

 1
77201-KK260

TGN126..ASC;TGN126..ADC..S;TGN126,128,13#..BZAGT

 1
77201-KK270

GUN125,126,13#..(ADC,ASC)..CBU

 1
77201-KK250

TGN126..ASC;TGN126,128,13#..(L,M,S)..BZAGT

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77204-0K130

TGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN120,121..ARL,GCC,GEN,LA,SA,TH

 1
77204-0K140

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0K190

TGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN120,121..ARL,GCC,GEN,LA,SA,TH

 1
77209-0K200

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN120,122,123,126,136,KUN12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-46005

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77241W - CLIP, TUBE JOINT
77241-0K010

TGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,SA,TH

 2
77241-0K010

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77241W - CLIP, TUBE JOINT
77241-0K010

TGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,SA,TH

 2
77241-0K010

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77284 - CLAMP, FUEL TUBE
77289-0K050

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GUN126,136,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-0K250

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77310A - CAP ASSY, FUEL TANK
77300-0K010

TGN126,128,13#..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,135,TGN11#,120,121..(ARL,GCC,GEN,IDN,LA,SA,TH)..CBU

 1
77300-0K020

KUN122..RHD..CBU;GUN125..6FC..ARL..CBU;KUN122..LHD..(SDC,TDC,TSC,TXT)..CBU;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN112,120,122,123,126,136,KUN112,125,126,13#,LAN125..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU

 1
77316 - GASKET, FUEL TANK CAP
77316-0K020

GUN125..6FC..ARL..CBU;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN)..CBU;GUN125..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN)..CBU;GUN126,136,TGN126,128,138..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..CBU;GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..(ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN)..CBU

 1
77511A - BRACKET, FUEL TANK
77644-0K010

TGN136..ADC,ASC,SDC;GUN125..TDC..6FC..ARL;TGN121,126..ADC,ASC,SDC,SSC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN125,135,GUN120,KUN126,13#,LAN125,TGN120..GEN,LA,PKN,SA,TH,VN;GUN122,123,126,136,KUN122,125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
77611 - BAND, FUEL TANK
77601-KK050

GUN135..L..MA;TGN126..L..GEN;GUN125..TDC..6FC..ARL;TGN126..BZAGT,GCC,LA,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN122,KUN122,TGN120,121..(H,L,M,S)..(ARL,GCC,LA,PKN,SA);GUN126,13#,KUN125,126,13#,LAN125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,TGN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,13#,KUN112,TGN110,128,138..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,TGN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,13#,KUN112,TGN110,128,138..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77612B - BAND, FUEL TANK, NO.2
77602-KK030

GUN135..L..MA;TGN126..L..GEN;GUN125..TDC..6FC..ARL;TGN126..BZAGT,GCC,LA,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN122,KUN122,TGN120,121..(H,L,M,S)..(ARL,GCC,LA,PKN,SA);GUN126,13#,KUN125,126,13#,LAN125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-KK010

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN122,KUN122,TGN120,121..(H,L,M,S)..(ARL,GCC,LA,PKN);GUN126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT

 1
77644 - BOLT, FUEL TANK
77644-35030

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77644 - BOLT, FUEL TANK
77644-35030

GUN135..L..MA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-0K140

TGN136..ADC,ASC,SDC;GUN125..TDC..6FC..ARL;TGN121,126..ADC,ASC,SDC,SSC;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135..ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN;GGN125,135,GUN120,KUN126,13#,LAN125,TGN120..GEN,LA,PKN,SA,TH,VN;GUN122,123,126,136,KUN122,125,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
77681A - SEAT, FUEL TANK BAND
77681-KK020

GUN135..L..MA;TGN126..L..GEN;GUN125..TDC..6FC..ARL;TGN126..BZAGT,GCC,LA,SA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,13#,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77682A - SEAT, FUEL TANK BAND, NO.2
77682-KK010

GUN135..L..MA;TGN126..L..GEN;GUN125..TDC..6FC..ARL;TGN126..BZAGT,GCC,LA,SA;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;KUN112,TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(M,S,X);GUN112,13#,TGN110,128,138..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77697 - INSULATOR, FUEL TANK HEAT, NO.1
77697-0K270

GGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
Common parts
90105-T0195
90178-T0020
90179-06146
90182-T0024
90269-04059
90466-T0037
90468-14039
Linked diagrams
8401

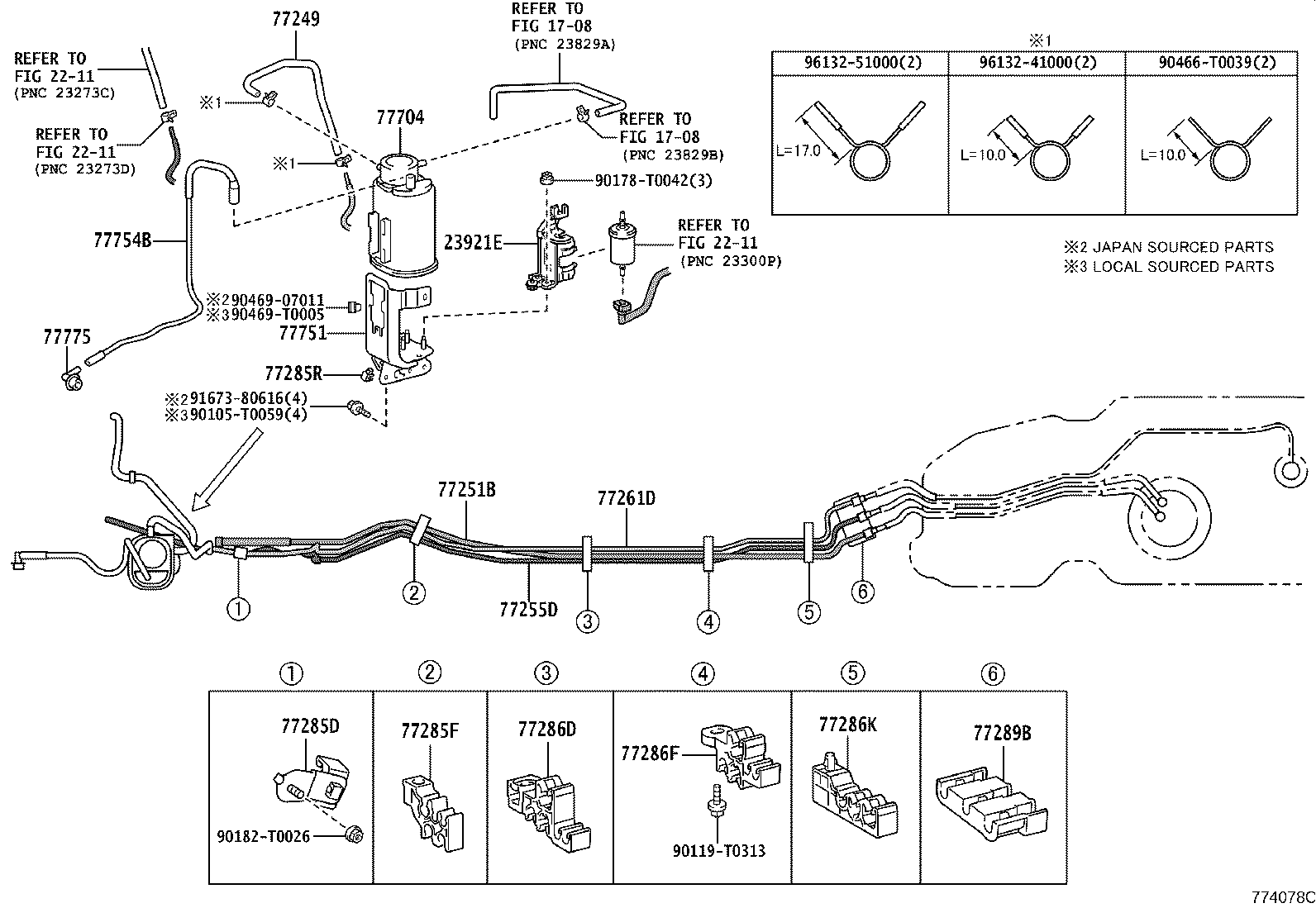

ILLUST NO. 2 OF 3(1607- )TGN128,138

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 2211 23921E 77249 77251B 77255D 77261D 77285D 77285F 77285R 77286D 77286F 77286K 77289B 77704 77751 77754B 77775 90105T0059 90119T0313 90178T0042 90182T0026 90466T0039 9046907011 90469T0005 9167380616 9613241000 9613251000
Part # Description Qty Price
23921E - SUPPORT, FUEL FILTER
23921-75040

2TRFE..TGN128,138

 1
77249 - HOSE, FUEL EMISSION
77249-KK030

TGN128,138

 1
77251B - TUBE, FUEL MAIN
77205-KK040

TGN128,138

 1
77251-KK090

KUN125,126,13#,LAN125

 1
77255D - TUBE, FUEL RETURN
77255-KK110

GGN125,135..ARL,GCC,LA,SA;TGN126,128,13#..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-KK020

GGN12#,135,TGN120,121..ARL,GCC,GEN,LA,SA,TH;TGN126,128,13#..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0K130

TGN126,128,13#..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,SA,TH

 1
77285-0K240

KUN112,12#,13#,LAN125

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0K230

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77285R - CLAMP, FUEL TUBE, NO.1
77285-0K340

GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0K170

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN112,120,122,123,KUN112,12#,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-0K150

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77286K - CLAMP, FUEL TUBE, NO.2
77286-0K220

GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;TGN126,136..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GUN126,TGN128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-0K040

TGN126,128,13#..(ADC,ASC,SDC,TDC,TSC,TXT)..CBU;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,SA,TH

 1
77704 - CANISTER SUB-ASSY, CHARCOAL
77704-0K010

GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-KK010

GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-0K010

GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
77775 - GUIDE, CHARCOAL CANISTER OUTLET
77775-0K010

GGN12#,135,TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
Common parts
90105-T0059
90119-T0313
90178-T0042
90182-T0026
90466-T0039
90469-07011
90469-T0005
91673-80616
96132-41000
96132-51000
Linked diagrams
1708
2211

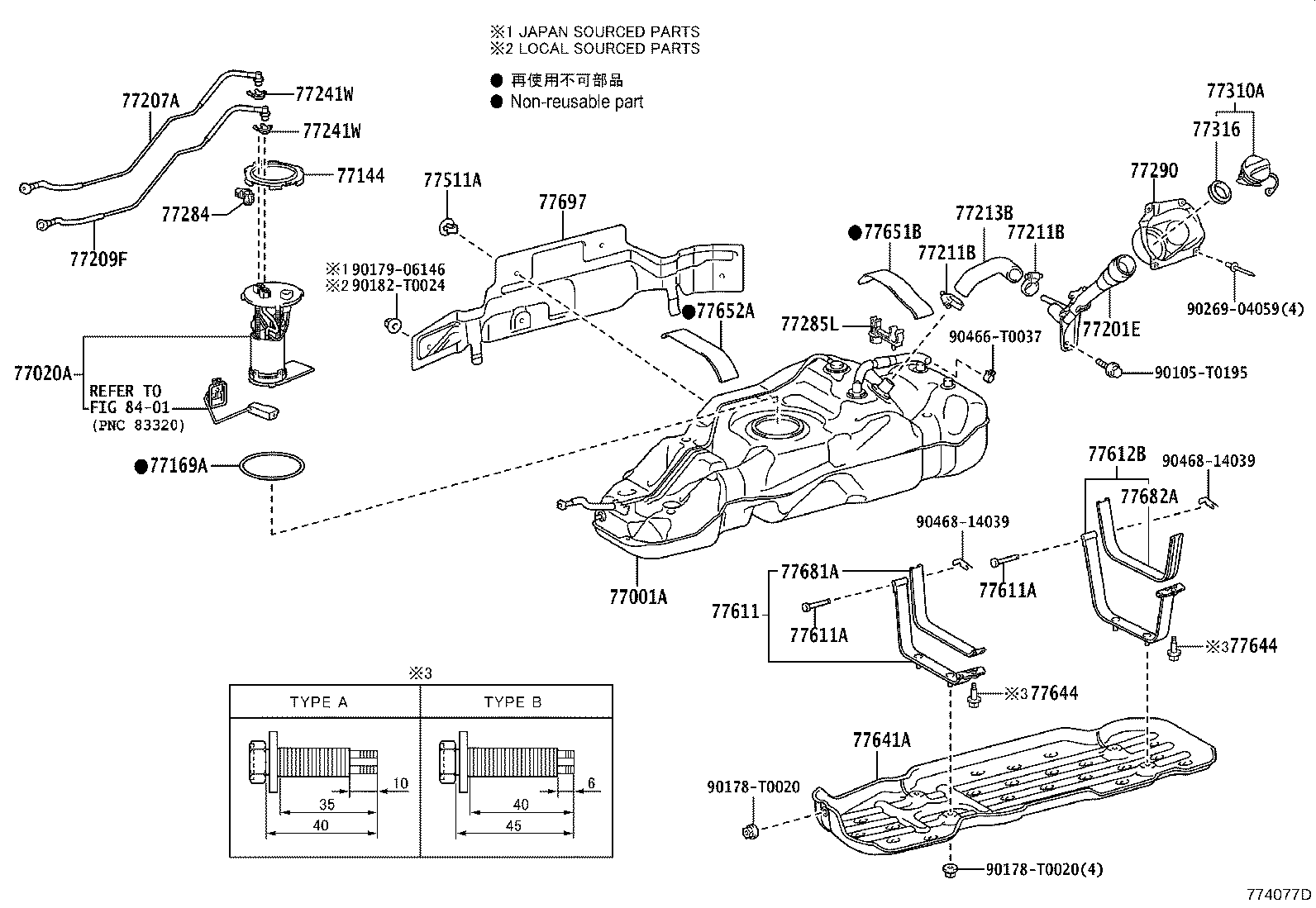

ILLUST NO. 1 OF 3(2007- )TGN128,138

Click highlighted areas on diagram

FUEL TANK

diagram 77001A 77020A 77144 77169A 77201E 77207A 77209F 77211B 77211B 77213B 77241W 77241W 77284 77285L 77290 77310A 77316 77511A 77611 77611A 77611A 77612B 77641A 77644 77644 77651B 77652A 77681A 77682A 77697 8401 9010508158 90105T0195 90178T0020 90178T0020 9017906146 90182T0024 9026904059 90466T0037 9046814039 9046814039
Part # Description Qty Price
Common parts
90105-08158
90105-T0195
90178-T0020
90179-06146
90182-T0024
90269-04059
90466-T0037
90468-14039
Linked diagrams
8401

ILLUST NO. 2 OF 3(2006- )GUN12#,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 2202 2202 77251B 77255D 77259D 77278E 77285D 77285F 77286D 77286F 77286K 90119T0313 90182T0026 90466T0038 90466T0038 90466T0041 90466T0041
Part # Description Qty Price
Common parts
90119-T0313
90182-T0026
90466-T0038
90466-T0041
Linked diagrams
2202

ILLUST NO. 2 OF 3(2007- )TGN128,138

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 2211 23921E 77249 77251B 77255D 77261D 77285D 77285F 77285R 77286D 77286F 77286K 77289B 77704 77751 77754B 77775 90105T0059 90119T0313 90178T0042 90182T0026 90466T0039 9046907011 90469T0005 9167380616 9613241000 9613251000
Part # Description Qty Price
Common parts
90105-T0059
90119-T0313
90178-T0042
90182-T0026
90466-T0039
90469-07011
90469-T0005
91673-80616
96132-41000
96132-51000
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(2006- )AD,KD,MD,MMD,PD,SD,TD

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77285G 77285G 77306 77306 77350 77360A 77377 77377 827111A750 827111A750 9008054035 9026906017 90469T0003 90469T0003 9092901382 9092901382 90959T1001 90959T1001
Part # Description Qty Price
Common parts
82711-1A750
90080-54035
90269-06017
90469-T0003
90929-01382
90959-T1001
