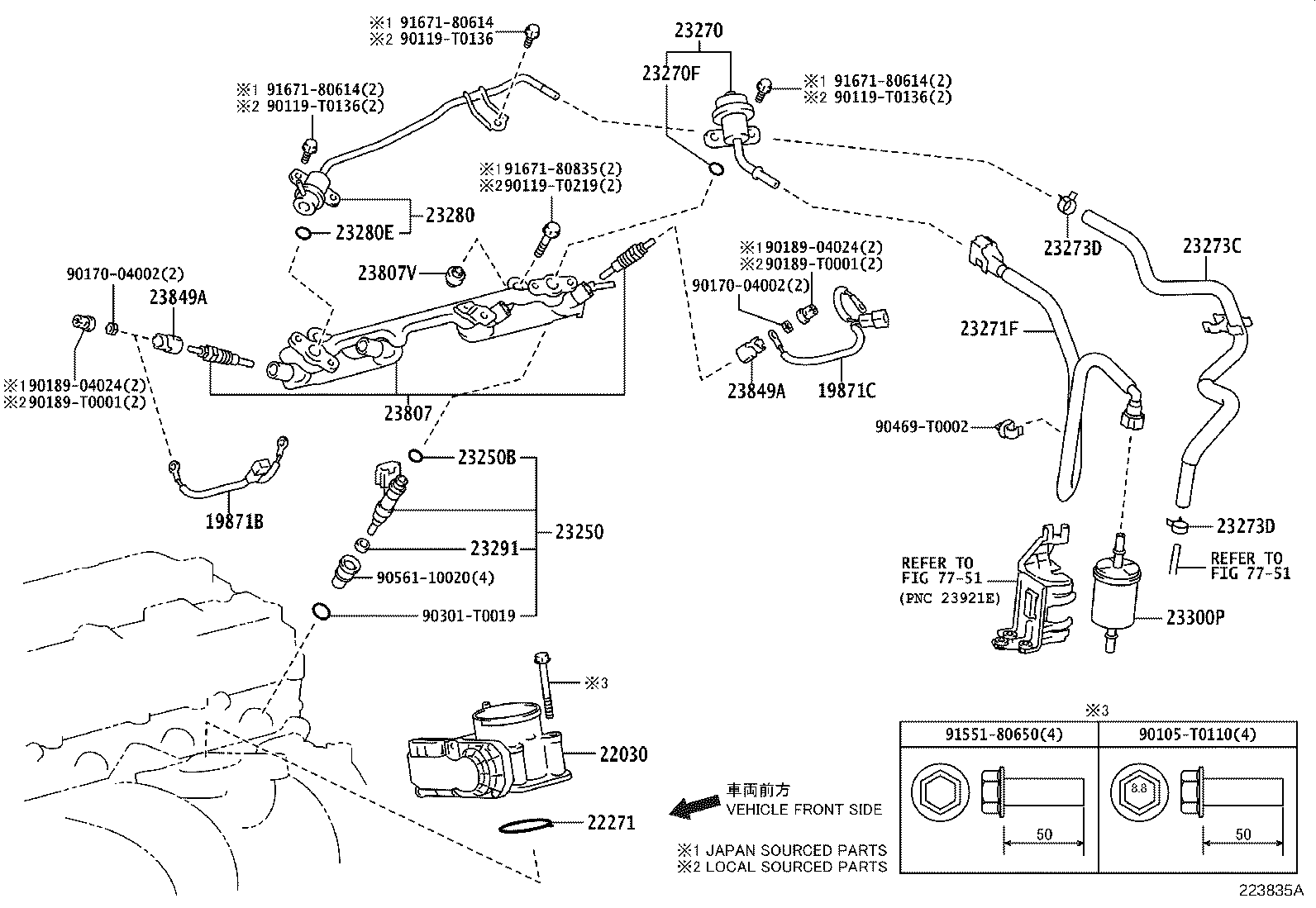

TGN138L-DGTMGG (2016)
Toyota Hilux
(1607- )2TRFE..TGN128,138
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19871B - CONNECTOR, GLOW PLUG NO.1 | ||||
| 19871-0C010 |
2TRFE..TGN128,138 |
1 | ||
| 19871C - CONNECTOR, GLOW PLUG NO.2 | ||||
| 19871-0C020 |
2TRFE..TGN128,138 |
1 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0C030 |
2TRFE..TGN111,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA (L) |
1 | ||
| 22030-75040 |
2TRFE..TGN111,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA (J) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75060 |
2TRFE..TGN128,138 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-09180 |
2TRFE..TGN128,138 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2TRFE..TGN128,138 (J) |
4 | ||
| 90301-T0051 |
2TRFE..TGN128,138 (L) |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-75080 |
2TRFE..TGN128,138 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-0C080 |
2TRFE..TGN128,138 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-0C171 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 23273-0C170 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 90466-T0040 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 90466-T0040 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75120 |
2TRFE..TGN128,138 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07037 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0C020 |
2TRFE..TGN126..6FC..(GEN,SA);2TRFE..TGN121,126..5F..(GCC,GEN,LA,SA,TH);1TRFE,2TRFE..TGN11#,120,128,13#..BZAGT,GCC,LA,SA IDN SOURCED PARTS |
4 | ||
| 23291-0C010 |
2TRFE..TGN126..S..SA;2TRFE..TGN126..ADC,ASC;2TRFE..TGN126..(M,X)..(GEN,SA);1TRFE,2TRFE..TGN120,121,128,13#..(ADC,ASC,SDC,SSC)..CBU THA SOURCED PARTS |
4 | ||
| 23291-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-0D100 |
2TRFE..TGN128,138 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-75120 |
2TRFE..TGN128,138 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-75020 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-0C010 |
2TRFE..TGN128,138 |
4 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-0C010 |
2TRFE..TGN128,138 |
4 | ||
| Common parts | ||||
| 90105-T0110 | ||||
| 90119-T0136 | ||||
| 90170-04002 | ||||
| 90189-04024 | ||||
| 90189-T0001 | ||||
| 90301-T0019 | ||||
| 90469-T0002 | ||||
| 90561-10020 | ||||
| 91551-80650 | ||||
| 91671-80614 | ||||
| 91671-K0835 | ||||
| Linked diagrams | ||||
| 7751 | ||||
(2007- )2TRFE..TGN128,138
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0110 | ||||
| 90119-T0136 | ||||
| 90119-T0219 | ||||
| 90170-04002 | ||||
| 90189-04024 | ||||
| 90189-T0001 | ||||
| 90301-T0019 | ||||
| 90469-T0002 | ||||
| 90561-10020 | ||||
| 91551-80650 | ||||
| 91671-80614 | ||||
| 91671-80835 | ||||
| Linked diagrams | ||||
| 7751 | ||||
