TGN138L-DGMSGG (2017)

Toyota Hilux

Production Oct 2017 - Oct 2020
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

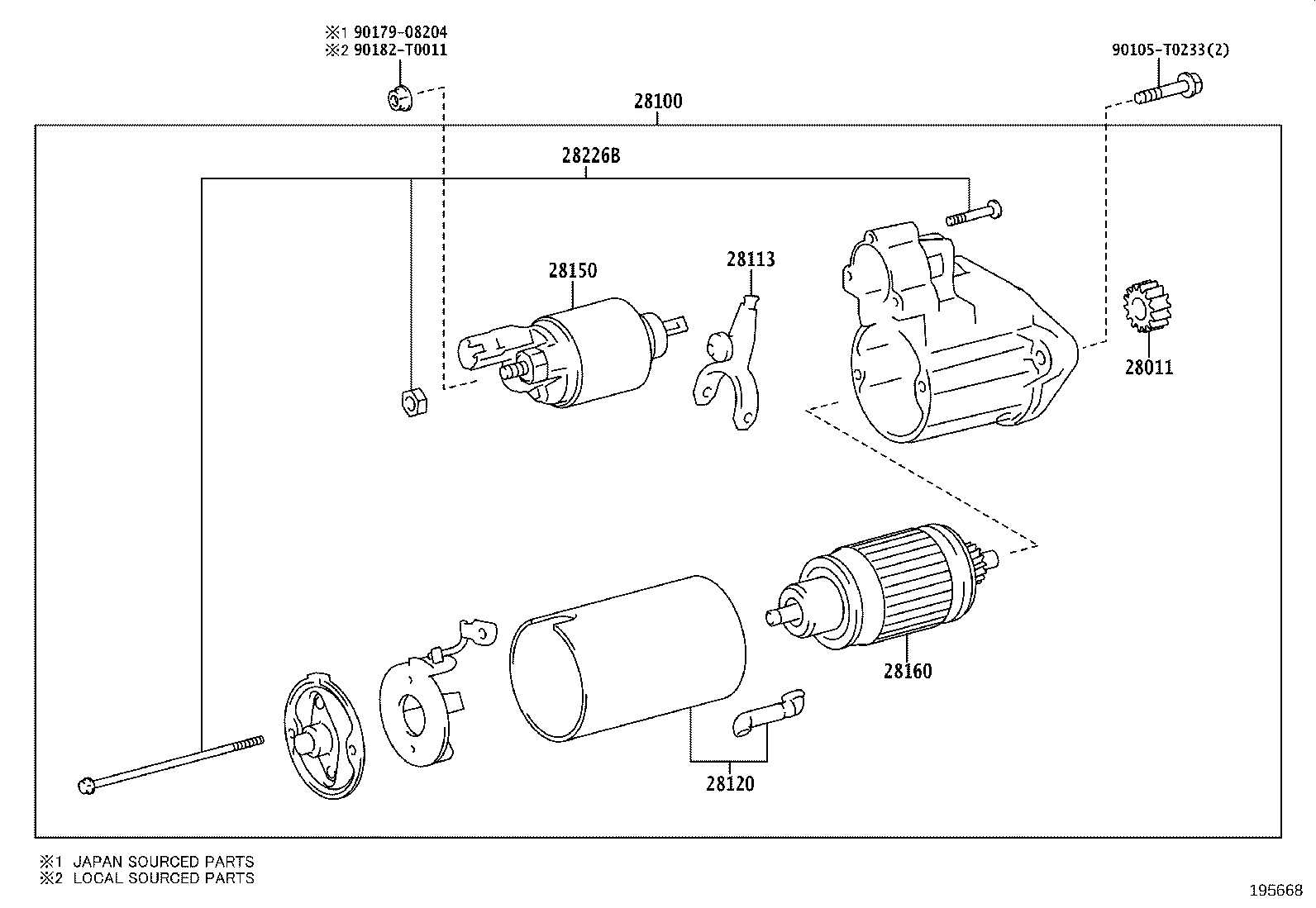

(1710- )2TRFE..TGN128,138

Click highlighted areas on diagram

12V 1.4KW(BOSCH)

diagram 28011 28100 28113 28120 28150 28160 28226B 90105T0233 9017908204 90182T0011
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0C160

2TRFE..TGN128,138

BOSCH

 1
28100 - STARTER ASSY
28100-0C150

2TRFE..TGN128,138

12V 1.6KW,DENSO

 1
28100-0C160

2TRFE..TGN128,138

12V 1.4KW,BOSCH

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0C160

2TRFE..TGN128,138

BOSCH

 1
28120 - YOKE ASSY, STARTER
28120-0C160

2TRFE..TGN128,138

BOSCH

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0C160

2TRFE..TGN128,138

BOSCH

 1
28160 - ARMATURE ASSY, STARTER
28160-0C160

2TRFE..TGN128,138

BOSCH

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0C160

2TRFE..TGN128,138

BOSCH

 1
Common parts
90105-T0233
90179-08204
90182-T0011

(2006- )1TRFE,2TRFE..TGN11#,120,121,128,138..AD,PS,TD,TS

Click highlighted areas on diagram

12V 1.6KW(DENSO)

diagram 28100 28120 28140 28150 28160 28226B 90105T0233 9017908204 90182T0011
Part # Description Qty Price
Common parts
90105-T0233
90179-08204
90182-T0011

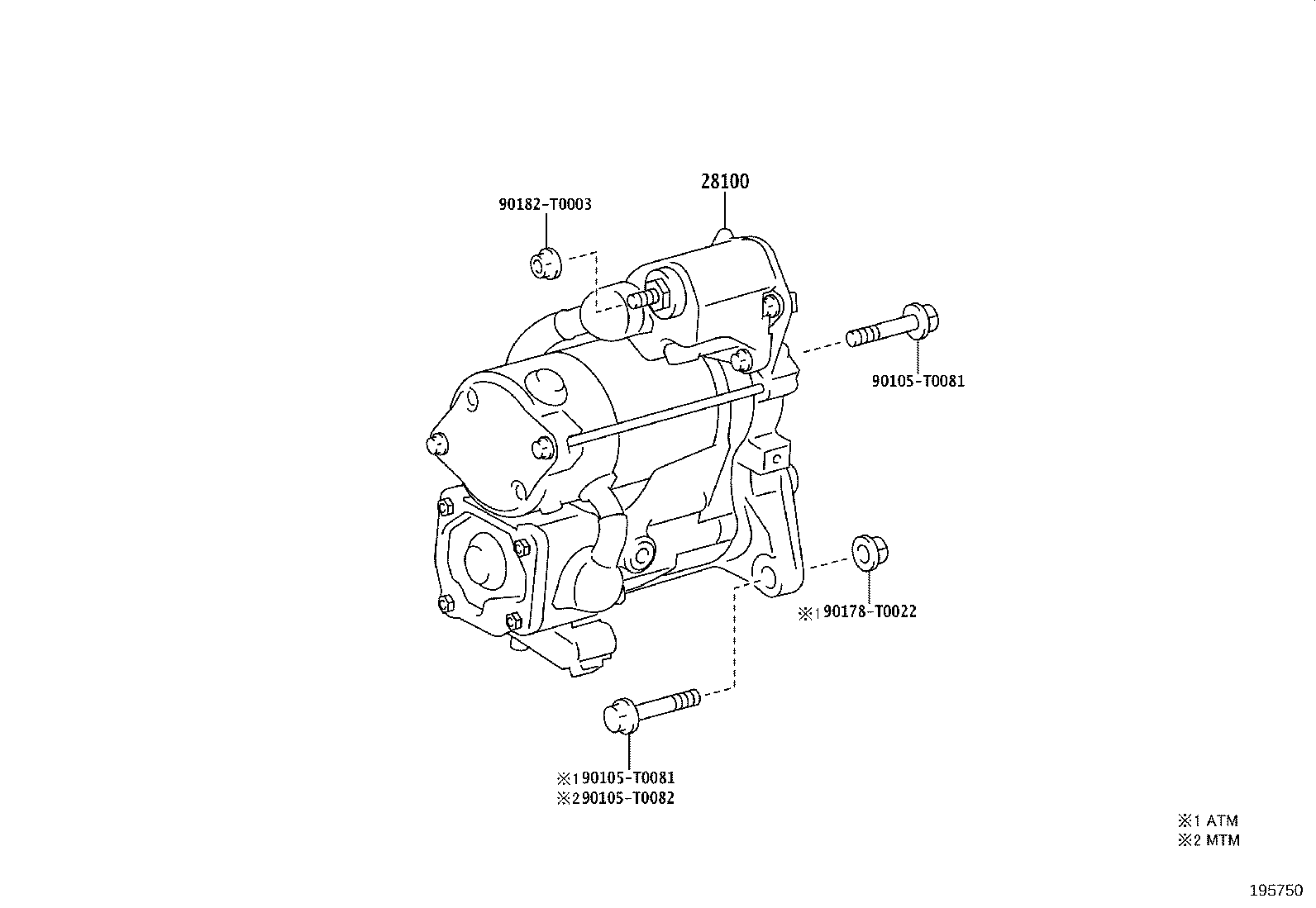

(2006- )2GDFTV..GUN135..L,S..TH ; (2006- )2GDFTV..GUN135..6F..H..TH ; (2006-

Click highlighted areas on diagram

12V 2.4KW(DENSO),W(STOP & START)

diagram 28100 90105T0081 90105T0081 90105T0082 90178T0022 90182T0003
Part # Description Qty Price
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003

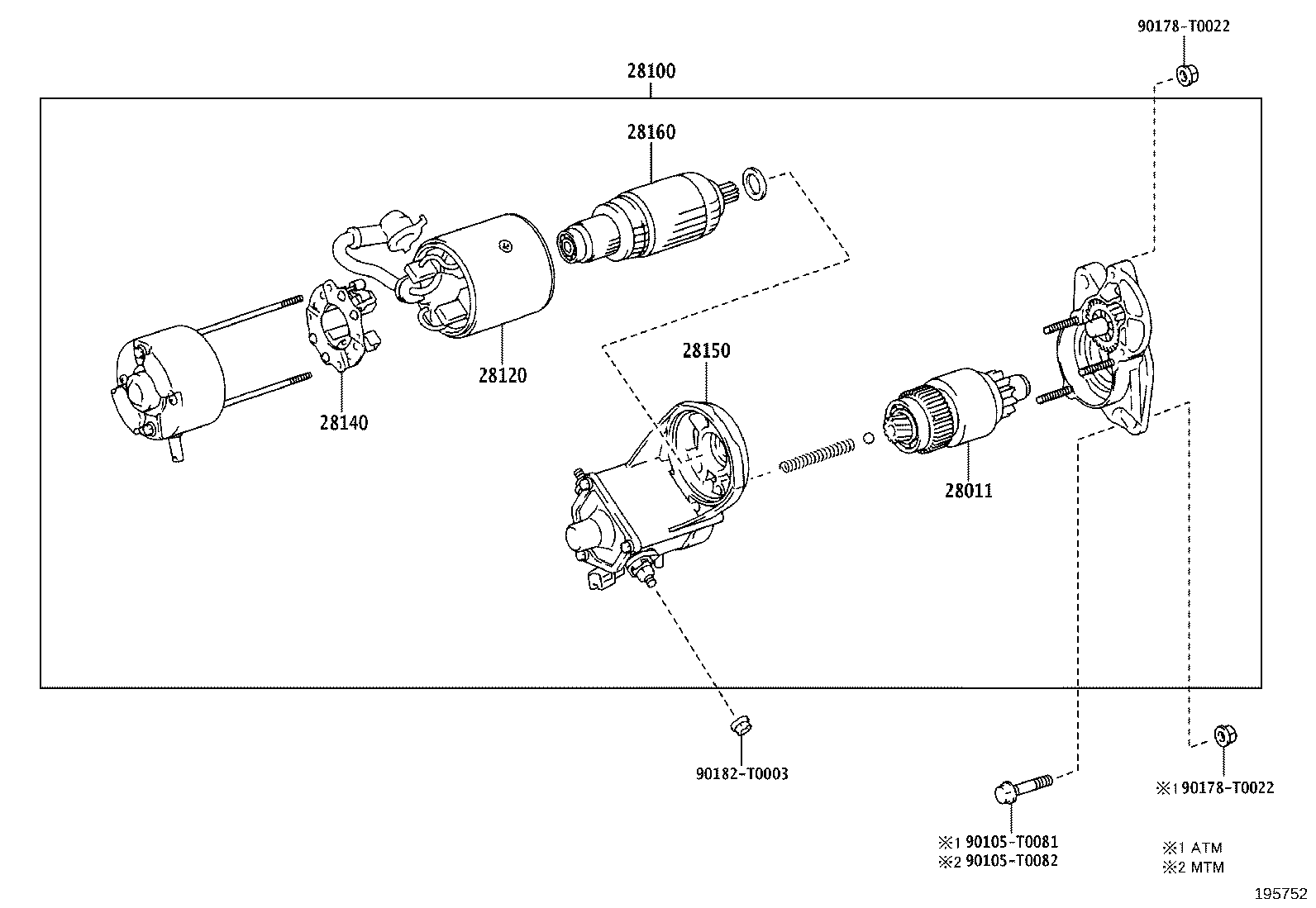

(2006- )2GDFTV..GUN135..L..GEN ; (2006- )2GDFTV..GUN125..TS..6FC ; (2006-

Click highlighted areas on diagram

12V 2.7KW

diagram 28011 28100 28120 28140 28150 28160 90105T0081 90105T0082 90178T0022 90178T0022 90182T0003
Part # Description Qty Price
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003
