TGN136L-DGMLKF (2020)

Toyota Hilux

Production Nov 2020 - Nov 2021
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )TGN136..S..LA ; (2011- )GGN125,GUN126,136,TGN126..AD..H

Click highlighted areas on diagram

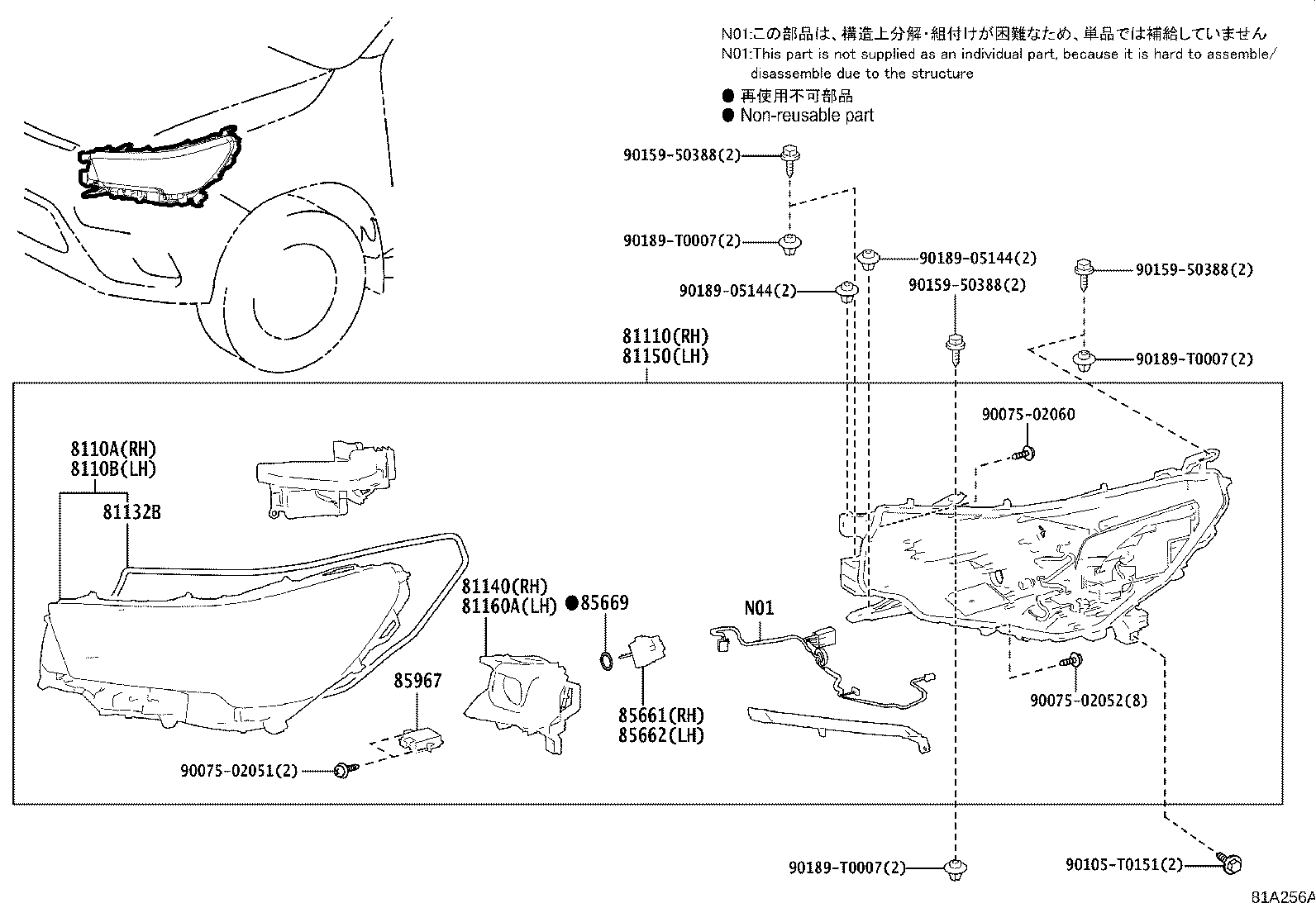

LED HEADLAMP

diagram 8110A 8110B 81110 81132B 81140 81150 81160A 85661 85662 85669 85967 9007502051 9007502052 9007502060 90105T0151 9015950388 9015950388 9015950388 9018905144 9018905144 90189T0007 90189T0007 90189T0007
Part # Description Qty Price
8110A - LENS SUB-ASSY, HEADLAMP, RH
8110A-0KP10

GGN125,GUN126,136,TGN126..AD..H

 1
8110B - LENS SUB-ASSY, HEADLAMP, LH
8110B-0KP10

GGN125,GUN126,136,TGN126..AD..H

 1
81110 - HEADLAMP ASSY, RH
81110-0K662

TGN126..TS..GCC;GUN122..5F..(H,S);TGN126..(AD,TD)..L;GUN112,TGN11#,120,121..GCC,GEN;GUN122,126,135..L..(GCC,LA,PH);GUN125..LHD..L..(GCC,GEN,LA,PH);GUN122,TGN136..LHD..(AD,TD)..L..(GEN,LA)

 1
81132B - GASKET, HEADLAMP LENS
81132-0KN10

GGN125,GUN126,136,TGN126..AD..H

 2
81140 - UNIT ASSY, HEADLAMP LED, RH
81140-0KP10

GGN125,GUN126,136,TGN126..AD..H

 1
81150 - HEADLAMP ASSY, LH
81150-0K662

TGN126..TS..GCC;GUN122..5F..(H,S);TGN126..(AD,TD)..L;GUN112,TGN11#,120,121..GCC,GEN;GUN122,126,135..L..(GCC,LA,PH);GUN125..LHD..L..(GCC,GEN,LA,PH);GUN122,TGN136..LHD..(AD,TD)..L..(GEN,LA)

 1
81160A - UNIT ASSY, HEADLAMP LED, LH
81160-0KP10

GGN125,GUN126,136,TGN126..AD..H

 1
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12020

GGN125,GUN126,136,TGN126..AD..H

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020

GGN125,GUN126,136,TGN126..AD..H

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

GUN122..RHD..SA;GUN125..LHD..SS..S;GUN126..LHD..S..GEN;GUN135..AD..6FC..LA;GUN135..(H,S)..(BZAG,GEN,TH);GUN125..(AD,AS,TD)..(BZAG,TH);TGN120,121,136..L..(ARL,BZAG,SA);GUN122,125..LHD..(SD,TS)..L..(GEN,SA);GUN135..(AD,SS,TD)..(H,L)..(BZAG,PH,SA);GUN135..(AS,KS,SD,TS)..6F..(ARL,BZAG,KEN,SA);GUN125,TGN138..(AD,SS,TS)..6FC..(BZAG,GEN,SA);GUN126,136..(AD,AS,SS,TS)..(L,S)..(ARL,BZAG,SA);GGN125,GUN125,126,136,TGN126,128..(AD,MD,MMD,TD,TX)..H;GUN125..RHD..(KD,KS,MS,SD,SS,TS,TX)..6F..(ARL,KEN,MA,SA,TH)

 2
85967 - COMPUTER, LIGHT CONTROL
85967-12050

GUN125..TH;GUN135..H..PH;GUN126..LHD..S..GEN;GUN135..(H,S)..(GEN,TH);GGN125,GUN125,126,136,TGN126..(AD,MD,MMD,TD,TX)..H

 2
Common parts
90075-02051
90075-02052
90075-02060
90105-T0151
90159-50388
90189-05144
90189-T0007
