TGN136L-BGMXKF (2015)

Toyota Hilux

Production Nov 2015 - Jul 2018
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

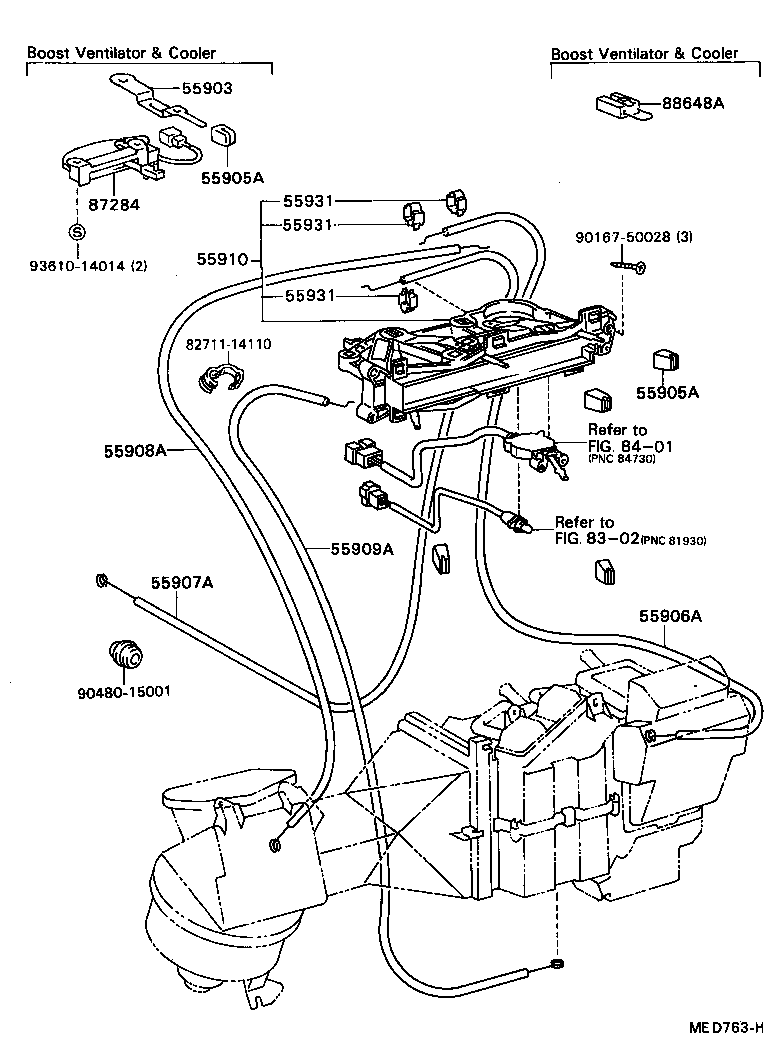

ILLUST NO. 1 OF 3(8308- )

Click highlighted areas on diagram

diagram 55903 55905A 55905A 55906A 55907A 55908A 55909A 55910 55931 55931 55931 8271114110 8302 8401 87284 88648A 9016750028 9048015001 9361014014
Part # Description Qty Price
Common parts
82711-14110
90167-50028
90480-15001
93610-14014
Linked diagrams
8302
8401

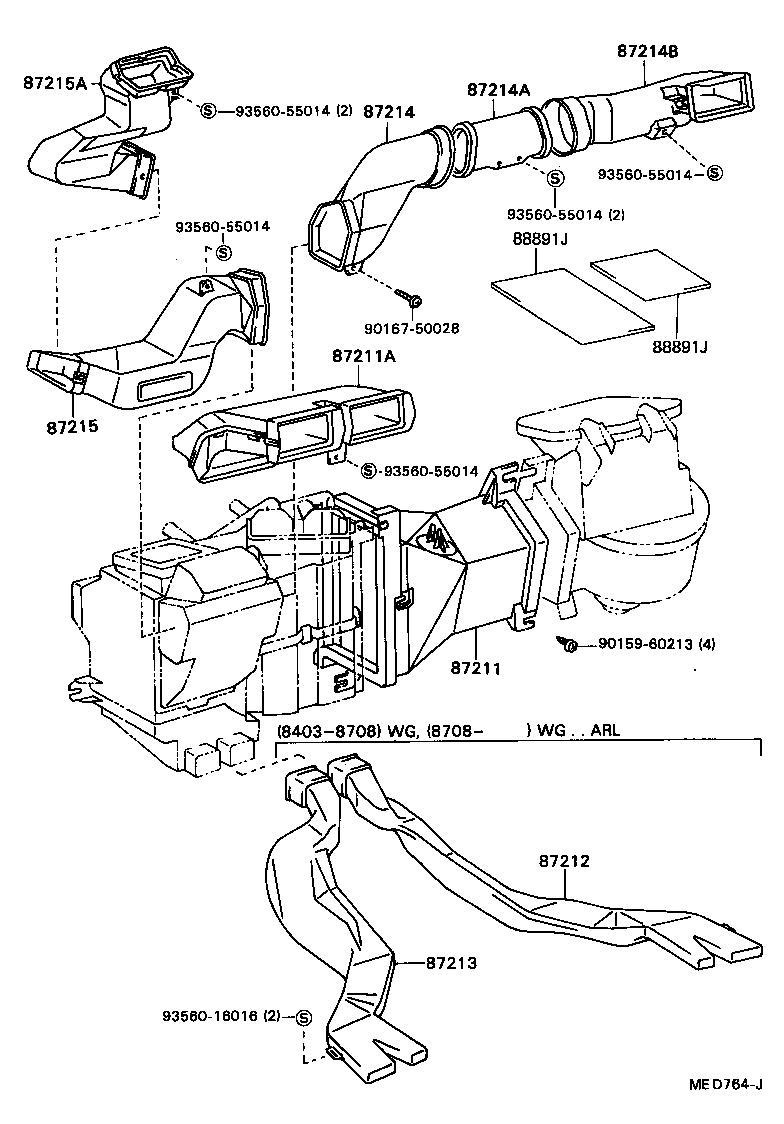

ILLUST NO. 2 OF 3(8308- )LHD

Click highlighted areas on diagram

diagram 87211 87211A 87212 87213 87214 87214A 87214B 87215 87215A 88891J 88891J 9015960213 9016750028 9356016016 9356055014 9356055014 9356055014 9356055014 9356055014
Part # Description Qty Price
Common parts
90159-60213
90167-50028
93560-16016
93560-55014

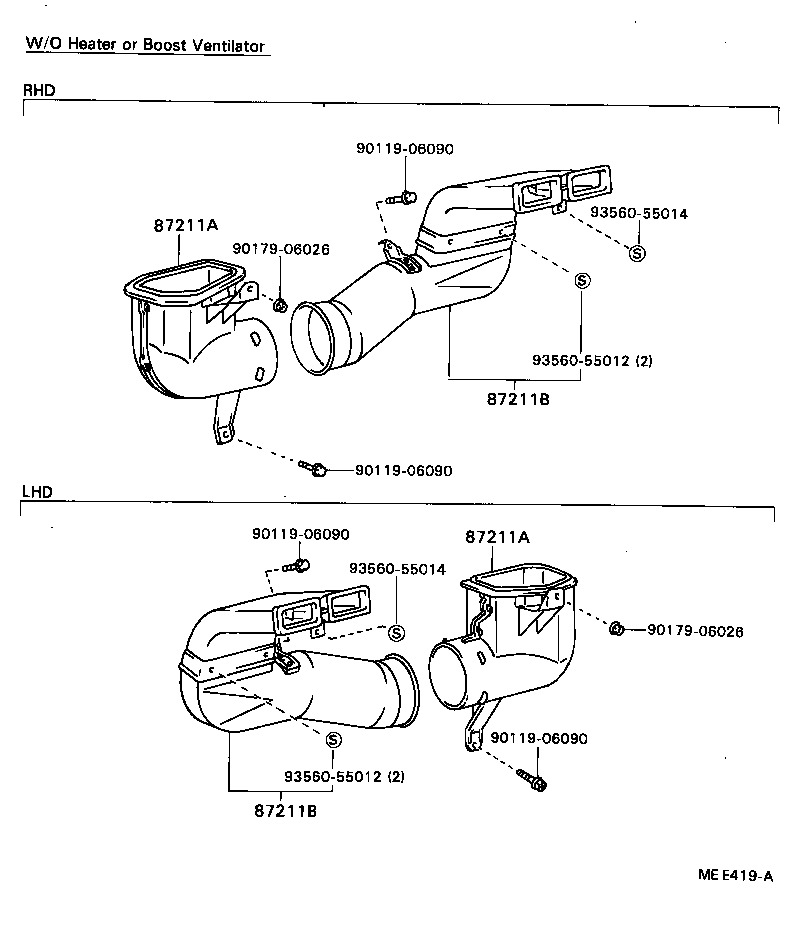

ILLUST NO. 3 OF 3(8308- )

Click highlighted areas on diagram

diagram 87211A 87211A 87211B 87211B 9011906090 9011906090 9011906090 9011906090 9017906026 9017906026 9356055012 9356055012 9356055014 9356055014
Part # Description Qty Price
Common parts
90119-06090
90179-06026
93560-55012
93560-55014

ILLUST NO. 1 OF 3(0408- )

Click highlighted areas on diagram

CONTROL---DIAL TYPE

diagram 5551 55900 55905A 55905A 55905A 55905B 55906 55908A 55909A 55910B 81942A 81942A 81942B 81942H 81942J 81942K 90167T0022
Part # Description Qty Price
Common parts
90167-T0022
Linked diagrams
5551

ILLUST NO. 3 OF 3(0408- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625C 88625H 88790B
Part # Description Qty Price

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55912E 55912E 84013A 88484 88650B 9016730010 90167T0007
Part # Description Qty Price
Common parts
90167-30010
90167-T0007

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

MANUAL HEATER CONTROL

diagram 5551 55900 55905A 55905A 55905A 55905B 55906 55908A 55909A 55910B 81942A
Part # Description Qty Price
Linked diagrams
5551

ILLUST NO. 2 OF 3(1107- )LHD

Click highlighted areas on diagram

AIR DUCT

diagram 55448C 55843A 55844 55845A 55950G 87201K 87201K 87201K 87211 87211A 87211B 87211C 87212 87213 87214M 87215F 87215F
Part # Description Qty Price

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625C 88625H 88790B
Part # Description Qty Price

ILLUST NO. 1 OF 3(1505- )

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55900H 55900H
Part # Description Qty Price
55900H - CONTROL ASSY, AIR CONDITIONER(AUTO)
55900-0K870C0

KUN126,TGN126,136..M..LA;GUN126,KUN126..LHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#,4#

 1
55900H - CONTROL ASSY, AIR CONDITIONER(AUTO)
55900-0K870C0

KUN126,TGN126,136..M..LA;GUN126,KUN126..LHD..ATM..M..GEN

FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#,4#

 1

ILLUST NO. 1 OF 3(1505- )LHD

Click highlighted areas on diagram

MANUAL HEATER CONTROL-MAKER OPTION

diagram 55900J 55902H 55905A 55905J 55905J 55906A 55908A 55909A 55918A 81942A 81942B 81942H 81942J 81942K 84013A
Part # Description Qty Price
55900J - CONTROL ASSY, AIR CONDITIONER(MANUAL)
55900-0KE20

GUN125,KUN125,135,TGN126,136..ASC..LA

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))

 1
55900-0KD80

GUN126,136..ASC,SSC,SXT;KUN125,126..RHD..(M,S)..SA;GUN125,135,KUN135,TGN136..ASC,SDC,SSC,SXT;KUN122,125,LAN125,TGN126..LHD..(ASC,SDC,SSC)..X

 1
55902H - CLIP(FOR AIR CONDITIONER PANEL)
90467-05171

KUN126..6F..M..LA;GUN125,135..6FC..S..MA;GUN126,136..6F..S..IART;KUN126..5FC..M..(GEN,LA);GUN126,TGN136..(5F,6FC)..M..LA;KUN12#..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 9
90467-05171

TGN126..M..LA;GUN125..LHD..TDC..X;GUN125..TDC..6F..S..LA;GGN12#,GUN112,120..L,S,X;KUN122,126..RHD..(L,M,S,X);KUN126..LHD..(M,S,X)..(GEN,LA);KUN122..LHD..(SDC,TDC,TSC,TXT);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125..LHD..(ASC,SDC)..(S,X)..(BZAGT,SA);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN125..LHD..(ADC,ASC,SSC,TSC,TXT)..(GCC,GEN,LA,SA);GUN125,TGN136..(ADC,ASC,TDC)..(5F,6FC)..X..(ARL,BZAGT);GUN122,126..(ADC,PDC,SSC,SXT,TDC,TXT)..M..(GEN,LA,PKN,SA);GUN125..(ADC,SXT,TDC)..(L,S)..(BZAGT,GCC,GEN,IDN,PH,SA,TH,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN122,123,126,13#,KUN112,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,S,X)

 9
90467-05171

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..MTM..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 9
55905A - KNOB, HEATER CONTROL
55917-0K020

KUN126..ADC;KUN126..RHD..SA;TGN136..X..BZAGT;GUN126..ADC..M..LA;TGN126,136..(ADC,ASC,SDC)..(LA,SA);GUN122,125,126,13#,KUN122,125,135,LAN125,TGN121..(ADC,ASC,SDC)..(L,S,X)

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..MTM..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER&FRONT AIR CONDITIONER-AUTO

 1
55906-0K060

TGN136..ADC..S;GUN122..TDC..HDCR;KUN126..5FC..(L,X);GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN122,125..X..(GEN,LA);KUN125..(L,S)..(GCC,LA);GUN125..LHD..TDC..S..GEN;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;TGN136..(ASC,TDC,TSC)..(S,X)..LA;KUN122,126..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..MTM..(L,S,X)..(GCC,GEN,LA)

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55906-0K060

KUN125..S..LA;KUN126..L..GEN;GUN122..TSC..HDCR;TGN136..(S,X)..LA;KUN125..X..(GEN,LA);KUN122..RHD..X..GEN;KUN126..ADC..5FC..(S,X);KUN125..RHD..TDC..(L,S)..GEN;TGN126..(ADC,TDC)..(S,X)..(GEN,LA);GUN135,KUN126,13#..6F..(S,X)..(GEN,LA);GUN126,TGN121..LHD..MTM..(L,S,X)..(GEN,LA);GUN125..LHD..(ADC,ASC,TDC,TSC)..6F..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55906-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..(5F,6F,6FC)..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 1
55906-0K060

KUN126..6F..M..LA;GUN125,135..6FC..S..MA;GUN126,136..6F..S..IART;KUN126..5FC..M..(GEN,LA);GUN126,TGN136..(5F,6FC)..M..LA;KUN12#..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
55906-0K060

TGN126..M..LA;GUN125..LHD..TDC..X;GUN122..5F..(L,S,X);KUN126..RHD..(L,M,S);GUN125..TDC..6F..S..LA;KUN126..LHD..(M,S,X)..(GEN,LA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125..LHD..(ASC,SDC)..(S,X)..(BZAGT,SA);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN125..LHD..(ADC,ASC,SSC,TSC,TXT)..(GCC,GEN,LA,SA);GUN112,123,KUN112,122,135,LAN125,TGN11#,120..L,M,S,X;GUN125,TGN136..(ADC,ASC,TDC)..(5F,6FC)..X..(ARL,BZAGT);GUN122,126..(ADC,PDC,SSC,SXT,TDC,TXT)..M..(GEN,LA,PKN,SA);GUN125..(ADC,SXT,TDC)..(L,S)..(BZAGT,GCC,GEN,IDN,PH,SA,TH,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GGN12#,GUN126,13#,KUN136,TGN121,126,138..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,MA,PH,PKN,SA,TH,VN)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0K110

TGN136..ADC..S;GUN122..TDC..HDCR;KUN122..LHD..X..GEN;KUN122..L..GCC..CBU;GUN125..TSC..S..GCC;GUN125..LHD..TDC..S..GEN;KUN122,125..TXT..(L,S)..GEN;KUN112,125,126,135..(L,S,X)..(GCC,LA);KUN122,TGN136..(ASC,TDC,TSC)..(S,X)..(GCC,LA)

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55908-0K110

KUN126..LHD..5FC..M..GEN;GUN126,KUN126,TGN126,136..M..LA;GUN126,136,TGN138..S..(HTWCF,IART)

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 1
55908-0K110

TGN121..GEN;GUN122..TSC..HDCR;KUN126..ADC..5FC..(S,X);TGN126..(ADC,TDC)..(S,X)..(GEN,LA);GUN126,135,KUN125,126,135,TGN136..MTM..(S,X)..LA;GUN125..LHD..(ADC,ASC,TDC,TSC)..6F..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55908-0K110

KUN126..LHD..5FC..M..GEN;GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..(5F,5FC,6F)..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER&FRONT AIR CONDITIONER-AUTO

 1
55908-0K110

KUN126..M..LA;GUN126,136..6F..S..IART;KUN126..LHD..5FC..M..GEN;GUN126,TGN136..(5F,6FC)..M..LA

FRONT AIR CONDITIONER-AUTO

 1
55908-0K110

TGN126..M..LA;GUN126..LHD..M..(GEN,LA);GUN122..LHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(SDC,TDC)..6F..(L,S,X);GUN126,13#,TGN121,126..LHD..(L,S,X);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);GUN122,KUN126..LHD..(ADC,TDC)..(L,M,S,X)..(GEN,LA,PH);KUN125..LHD..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(GEN,LA,SA);KUN125,TGN136..LHD..(ADC,ASC,SDC,TDC)..(L,S,X)..(BZAGT,GCC,SA);GUN122,125,TGN138..LHD..(ADC,SDC,TDC)..(5F,6FC)..(L,S)..(BZAGT,GCC,SA);GUN112,KUN112,122,135,LAN125,TGN11#,120,136..LHD..(L,M,S,X)..(GCC,GEN,LA,SA,VN)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K060

TGN136..ADC..S;GUN122..TDC..HDCR;KUN126..5FC..(L,X);GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN122,125..X..(GEN,LA);KUN125..(L,S)..(GCC,LA);GUN125..LHD..TDC..S..GEN;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;TGN136..(ASC,TDC,TSC)..(S,X)..LA;KUN122,126..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..MTM..(L,S,X)..(GCC,GEN,LA)

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55909-0K060

KUN125..S..LA;KUN126..L..GEN;GUN122..TSC..HDCR;TGN136..(S,X)..LA;KUN125..X..(GEN,LA);KUN122..RHD..X..GEN;KUN126..ADC..5FC..(S,X);KUN125..RHD..TDC..(L,S)..GEN;TGN126..(ADC,TDC)..(S,X)..(GEN,LA);GUN135,KUN126,13#..6F..(S,X)..(GEN,LA);GUN126,TGN121..LHD..MTM..(L,S,X)..(GEN,LA);GUN125..LHD..(ADC,ASC,TDC,TSC)..6F..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55909-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..MTM..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER&FRONT AIR CONDITIONER-AUTO

 1
55909-0K060

KUN126..6F..M..LA;GUN126,136..6F..S..IART;KUN126..5FC..M..(GEN,LA);GUN126,TGN136..(5F,6FC)..M..LA;KUN12#..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
55909-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..(5F,6F,6FC)..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 1
55909-0K060

TGN126..M..LA;GUN136..SSC,SXT;KUN122..L,M,S,X;KUN126..RHD..(L,M,S);GUN125..LHD..6FC..SA;GUN122..ARL,GEN,PKN,SA;KUN126..LHD..(M,S,X)..(GEN,LA);GUN125..RHD..TDC..(L,M,S)..GEN;GUN122,TGN136..(L,S,X)..(BZAGT,GCC);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125..TDC..6FC..(L,S,X)..(ARL,GCC);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);TGN136..(ADC,ASC,SDC,TDC,TSC)..(GEN,LA,SA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT)..(ARL,GEN,SA);GUN126..(ADC,PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN125..LHD..(SDC,TDC)..6F..(L,S,X)..(GCC,GEN,LA,SA,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X)..(GEN,LA,SA);GGN12#,GUN112,123,126,13#,KUN112,13#,LAN125,TGN11#,120,121,126,138..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)

 1

ILLUST NO. 3 OF 3(1505- )LHD

Click highlighted areas on diagram

SENSOR

diagram 8401 88505 88625H 88625Q 88790B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-0K010

KUN126..6F..M..LA;GUN135..6FC..S..MA;GUN126,136..6F..S..IART;KUN126,TGN136..(5F,5FC)..M..(GEN,LA);KUN125,126..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-0K020

KUN126..6F..M..LA;GUN135..6FC..S..MA;GUN126,136..6F..S..IART;KUN126,TGN136..(5F,5FC)..M..(GEN,LA);KUN125,126..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
88790B - THERMISTOR ASSY
88790-0K010

KUN126;GUN135..MA;KUN136..TDC;GUN126..M..VN;TGN136..ADC..M;TGN121..(L,S)..TH;GUN125..TSC..S..GCC;GUN125,135..BZAGT..IV3;GUN126..6F..(M,S)..IART;GUN126..TXT..6F..ARL..CBU;GUN122,125..6F..M..(TH,VN);GUN125..TXT..6F..(ARL,IDN);GUN125,126..(PDC,TSC)..6FC..(H,X);GUN122,TGN138..5F..M..(BZAGT,GCC);GUN126,TGN126,138..6FC..L..(BZAGT,GEN);GUN122,135..MTM..(S,X)..HDCR..(GEN,VN);GGN135,KUN112,122,125,135..GCC,GEN,IDN,LA,SA,VN;GUN122,TGN136..(ASC,TDC,TSC,TXT)..(5F,6FC)..(ARL,LA,TH);GGN12#,GUN123,136,LAN125,TGN126..(ADC,SSC,TDC,TSC,TXT)..(M,S)..(DCR,DEFI,HTWC,IART)..(ARL,BZAGT,SA)

 1
Linked diagrams
8401

ILLUST NO. 2 OF 3(1505- )LHD

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55844 55950G 55990B 58861B 58861B 87211 87211A 87211B 87211R 87211R 87212 87212G 87213 87216A 87216B 90119T0404 90167T0007 9018305094 9018305094 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-KK020

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-KK040

KUN122..S..IV3;KUN125..LHD..S..SA;TGN126..(L,X)..(GCC,LA);LAN125,TGN126..LHD..(L,S,X)..(GEN,SA);GUN122,125..LHD..(SDC,SSC,SXT,TSC)..S..HDCR..(GEN,SA);GUN112,122,125,126,135,KUN112,12#,135,TGN11#,120,121,13#..LHD..(L,X)..(BZAGT,GCC,GEN,LA,PH,SA)

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-KK030

GUN125..TDC..6F..LA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-KK020

GUN125..TDC..6F..LA;GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
Common parts
90119-T0404
90167-T0007
90183-05094
93568-55014

ILLUST NO. 1 OF 3(1505- )LHD

Click highlighted areas on diagram

MANUAL HEATER CONTROL-DEALER OPTION

diagram 55900J 55902H 55905A 55905J 55905J 55906A 55908A 55909A 55918A 81942A 81942B 81942H 81942J 81942K 84013A 84660H
Part # Description Qty Price
55900J - CONTROL ASSY, AIR CONDITIONER(MANUAL)
55900-0KE20

GUN125,KUN125,135,TGN126,136..ASC..LA

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))

 1
55900-0KD80

GUN126,136..ASC,SSC,SXT;KUN125,126..RHD..(M,S)..SA;GUN125,135,KUN135,TGN136..ASC,SDC,SSC,SXT;KUN122,125,LAN125,TGN126..LHD..(ASC,SDC,SSC)..X

 1
55902H - CLIP(FOR AIR CONDITIONER PANEL)
90467-05171

KUN126..6F..M..LA;GUN125,135..6FC..S..MA;GUN126,136..6F..S..IART;KUN126..5FC..M..(GEN,LA);GUN126,TGN136..(5F,6FC)..M..LA;KUN12#..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 9
90467-05171

TGN126..M..LA;GUN125..LHD..TDC..X;GUN125..TDC..6F..S..LA;GGN12#,GUN112,120..L,S,X;KUN122,126..RHD..(L,M,S,X);KUN126..LHD..(M,S,X)..(GEN,LA);KUN122..LHD..(SDC,TDC,TSC,TXT);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125..LHD..(ASC,SDC)..(S,X)..(BZAGT,SA);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN125..LHD..(ADC,ASC,SSC,TSC,TXT)..(GCC,GEN,LA,SA);GUN125,TGN136..(ADC,ASC,TDC)..(5F,6FC)..X..(ARL,BZAGT);GUN122,126..(ADC,PDC,SSC,SXT,TDC,TXT)..M..(GEN,LA,PKN,SA);GUN125..(ADC,SXT,TDC)..(L,S)..(BZAGT,GCC,GEN,IDN,PH,SA,TH,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GUN122,123,126,13#,KUN112,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,S,X)

 9
90467-05171

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..MTM..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 9
55905A - KNOB, HEATER CONTROL
55917-0K020

KUN126..ADC;KUN126..RHD..SA;TGN136..X..BZAGT;GUN126..ADC..M..LA;TGN126,136..(ADC,ASC,SDC)..(LA,SA);GUN122,125,126,13#,KUN122,125,135,LAN125,TGN121..(ADC,ASC,SDC)..(L,S,X)

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..MTM..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER&FRONT AIR CONDITIONER-AUTO

 1
55906-0K060

TGN136..ADC..S;GUN122..TDC..HDCR;KUN126..5FC..(L,X);GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN122,125..X..(GEN,LA);KUN125..(L,S)..(GCC,LA);GUN125..LHD..TDC..S..GEN;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;TGN136..(ASC,TDC,TSC)..(S,X)..LA;KUN122,126..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..MTM..(L,S,X)..(GCC,GEN,LA)

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55906-0K060

KUN125..S..LA;KUN126..L..GEN;GUN122..TSC..HDCR;TGN136..(S,X)..LA;KUN125..X..(GEN,LA);KUN122..RHD..X..GEN;KUN126..ADC..5FC..(S,X);KUN125..RHD..TDC..(L,S)..GEN;TGN126..(ADC,TDC)..(S,X)..(GEN,LA);GUN135,KUN126,13#..6F..(S,X)..(GEN,LA);GUN126,TGN121..LHD..MTM..(L,S,X)..(GEN,LA);GUN125..LHD..(ADC,ASC,TDC,TSC)..6F..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55906-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..(5F,6F,6FC)..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 1
55906-0K060

KUN126..6F..M..LA;GUN125,135..6FC..S..MA;GUN126,136..6F..S..IART;KUN126..5FC..M..(GEN,LA);GUN126,TGN136..(5F,6FC)..M..LA;KUN12#..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
55906-0K060

TGN126..M..LA;GUN125..LHD..TDC..X;GUN122..5F..(L,S,X);KUN126..RHD..(L,M,S);GUN125..TDC..6F..S..LA;KUN126..LHD..(M,S,X)..(GEN,LA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125..LHD..(ASC,SDC)..(S,X)..(BZAGT,SA);GUN125,136..RHD..(SSC,SXT,TDC)..M..(GEN,SA);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN125..LHD..(ADC,ASC,SSC,TSC,TXT)..(GCC,GEN,LA,SA);GUN112,123,KUN112,122,135,LAN125,TGN11#,120..L,M,S,X;GUN125,TGN136..(ADC,ASC,TDC)..(5F,6FC)..X..(ARL,BZAGT);GUN122,126..(ADC,PDC,SSC,SXT,TDC,TXT)..M..(GEN,LA,PKN,SA);GUN125..(ADC,SXT,TDC)..(L,S)..(BZAGT,GCC,GEN,IDN,PH,SA,TH,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..6F..(L,M,S,X)..(GEN,IDN,LA,SA);GGN12#,GUN126,13#,KUN136,TGN121,126,138..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,MA,PH,PKN,SA,TH,VN)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0K110

TGN136..ADC..S;GUN122..TDC..HDCR;KUN122..LHD..X..GEN;KUN122..L..GCC..CBU;GUN125..TSC..S..GCC;GUN125..LHD..TDC..S..GEN;KUN122,125..TXT..(L,S)..GEN;KUN112,125,126,135..(L,S,X)..(GCC,LA);KUN122,TGN136..(ASC,TDC,TSC)..(S,X)..(GCC,LA)

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55908-0K110

KUN126..LHD..5FC..M..GEN;GUN126,KUN126,TGN126,136..M..LA;GUN126,136,TGN138..S..(HTWCF,IART)

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 1
55908-0K110

TGN121..GEN;GUN122..TSC..HDCR;KUN126..ADC..5FC..(S,X);TGN126..(ADC,TDC)..(S,X)..(GEN,LA);GUN126,135,KUN125,126,135,TGN136..MTM..(S,X)..LA;GUN125..LHD..(ADC,ASC,TDC,TSC)..6F..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55908-0K110

KUN126..LHD..5FC..M..GEN;GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..(5F,5FC,6F)..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER&FRONT AIR CONDITIONER-AUTO

 1
55908-0K110

KUN126..M..LA;GUN126,136..6F..S..IART;KUN126..LHD..5FC..M..GEN;GUN126,TGN136..(5F,6FC)..M..LA

FRONT AIR CONDITIONER-AUTO

 1
55908-0K110

TGN126..M..LA;GUN126..LHD..M..(GEN,LA);GUN122..LHD..(SDC,SSC,TSC,TXT);GUN125..LHD..(SDC,TDC)..6F..(L,S,X);GUN126,13#,TGN121,126..LHD..(L,S,X);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);GUN122,KUN126..LHD..(ADC,TDC)..(L,M,S,X)..(GEN,LA,PH);KUN125..LHD..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(GEN,LA,SA);KUN125,TGN136..LHD..(ADC,ASC,SDC,TDC)..(L,S,X)..(BZAGT,GCC,SA);GUN122,125,TGN138..LHD..(ADC,SDC,TDC)..(5F,6FC)..(L,S)..(BZAGT,GCC,SA);GUN112,KUN112,122,135,LAN125,TGN11#,120,136..LHD..(L,M,S,X)..(GCC,GEN,LA,SA,VN)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K060

TGN136..ADC..S;GUN122..TDC..HDCR;KUN126..5FC..(L,X);GUN125..TSC..S..GCC;KUN122..L..GCC..CBU;KUN122,125..X..(GEN,LA);KUN125..(L,S)..(GCC,LA);GUN125..LHD..TDC..S..GEN;KUN122,125..TXT..(L,S)..GEN;KUN125..RHD..TDC..(L,S)..GEN;TGN136..(ASC,TDC,TSC)..(S,X)..LA;KUN122,126..(5F,5FC)..S..(GCC,LA);KUN112,126,13#..MTM..(L,S,X)..(GCC,GEN,LA)

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55909-0K060

KUN125..S..LA;KUN126..L..GEN;GUN122..TSC..HDCR;TGN136..(S,X)..LA;KUN125..X..(GEN,LA);KUN122..RHD..X..GEN;KUN126..ADC..5FC..(S,X);KUN125..RHD..TDC..(L,S)..GEN;TGN126..(ADC,TDC)..(S,X)..(GEN,LA);GUN135,KUN126,13#..6F..(S,X)..(GEN,LA);GUN126,TGN121..LHD..MTM..(L,S,X)..(GEN,LA);GUN125..LHD..(ADC,ASC,TDC,TSC)..6F..(S,X)..(GEN,LA)

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
55909-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..MTM..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER&FRONT AIR CONDITIONER-AUTO

 1
55909-0K060

KUN126..6F..M..LA;GUN126,136..6F..S..IART;KUN126..5FC..M..(GEN,LA);GUN126,TGN136..(5F,6FC)..M..LA;KUN12#..RHD..(SDC,SSC,SXT,TSC)..M

FRONT AIR CONDITIONER-AUTO

 1
55909-0K060

KUN126..5FC..M..(GEN,LA);GUN126,136,TGN138..S..(HTWCF,IART);GUN126,KUN126,TGN126,136..(5F,6F,6FC)..M..LA

HEATER CONTROL PANEL-AUTO AIR CONDITIONER

 1
55909-0K060

TGN126..M..LA;GUN136..SSC,SXT;KUN122..L,M,S,X;KUN126..RHD..(L,M,S);GUN125..LHD..6FC..SA;GUN122..ARL,GEN,PKN,SA;KUN126..LHD..(M,S,X)..(GEN,LA);GUN125..RHD..TDC..(L,M,S)..GEN;GUN122,TGN136..(L,S,X)..(BZAGT,GCC);KUN125..(SDC,TDC)..(L,S,X)..(GCC,SA);GUN125..TDC..6FC..(L,S,X)..(ARL,GCC);GUN125..LHD..(ADC,ASC,SSC,SXT,TSC,TXT);TGN136..(ADC,ASC,SDC,TDC,TSC)..(GEN,LA,SA);GUN125..RHD..(SDC,SSC,SXT,TSC,TXT)..(ARL,GEN,SA);GUN126..(ADC,PDC,SSC,SXT,TDC)..M..(GEN,LA,PKN,SA);GUN125..LHD..(SDC,TDC)..6F..(L,S,X)..(GCC,GEN,LA,SA,VN);KUN125..(ADC,ASC,SSC,SXT,TDC,TSC,TXT)..(L,M,S,X)..(GEN,LA,SA);GGN12#,GUN112,123,126,13#,KUN112,13#,LAN125,TGN11#,120,121,126,138..(L,S,X)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN)

 1

ILLUST NO. 1 OF 3(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55900H 55900H
Part # Description Qty Price

ILLUST NO. 1 OF 3(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN

Click highlighted areas on diagram

MANUAL HEATER CONTROL

diagram 55900J 55902H 55905A 55905J 55905J 55906A 55908A 55909A 55918A 81942A 81942B 81942H 81942J 81942K 84013A 84660H
Part # Description Qty Price

ILLUST NO. 2 OF 3(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55844 55950G 55990B 58861B 58861B 87211 87211A 87211B 87211R 87211R 87212 87212G 87213 87216A 87216B 90119T0404 90167T0007 9018305094 9018305094 9356855014
Part # Description Qty Price
Common parts
90119-T0404
90167-T0007
90183-05094
93568-55014

ILLUST NO. 3 OF 3(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN

Click highlighted areas on diagram

SENSOR

diagram 8401 88505 88625H 88625Q 88790B
Part # Description Qty Price
Linked diagrams
8401
