TGN136L-BGMXKF (2015)

Toyota Hilux

Production Nov 2015 - Jul 2018
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

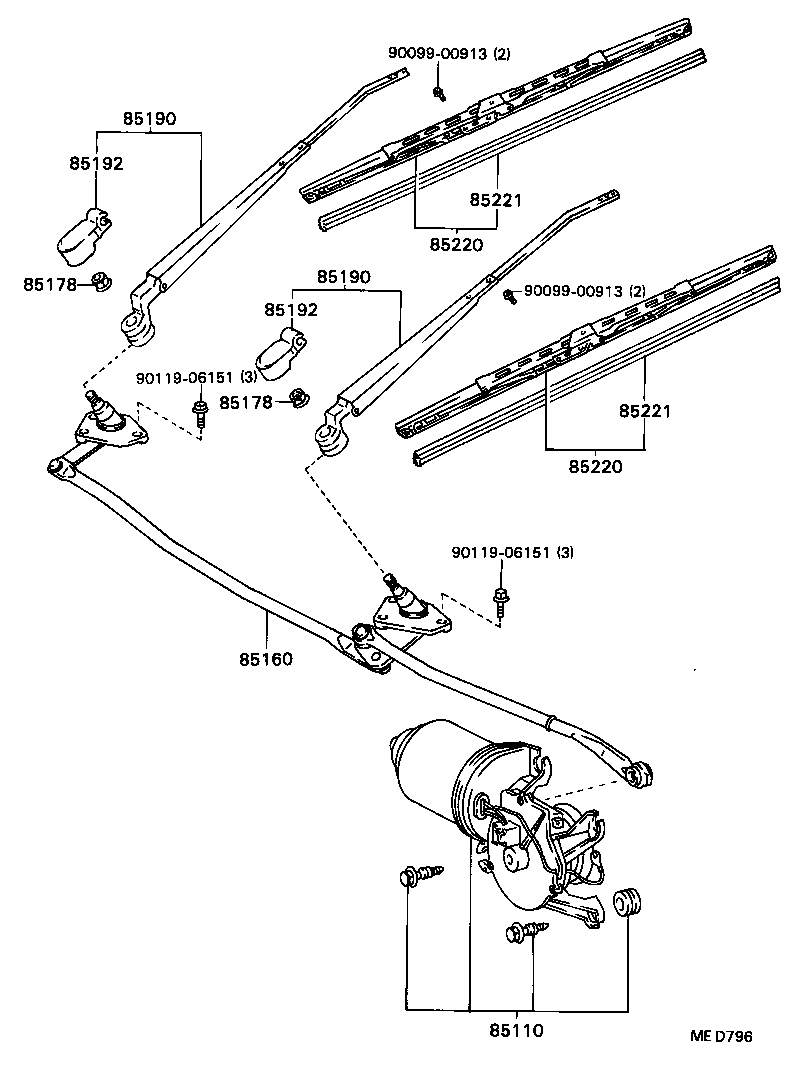

(8308- )

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9011906151 9011906151
Part # Description Qty Price
Common parts
90099-00913
90119-06151

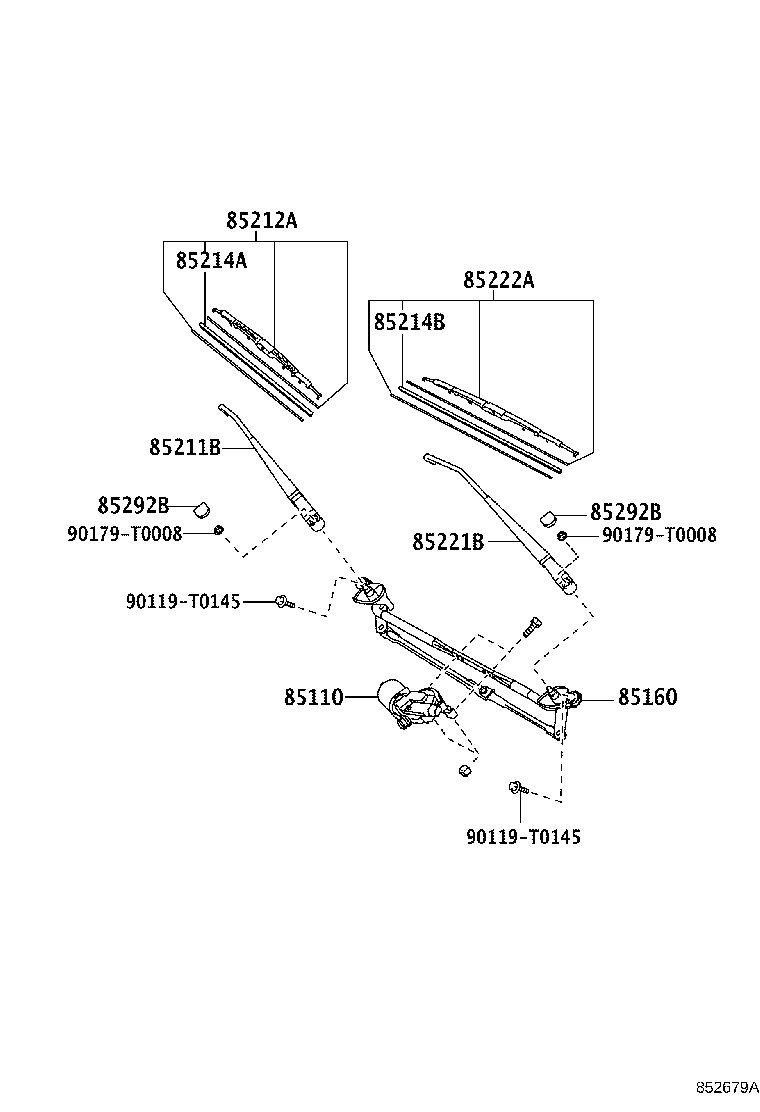

(0408- )LHD

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90179T0008 90179T0008
Part # Description Qty Price
Common parts
90119-T0145
90179-T0008

(1107- )LHD

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90179T0008 90179T0008
Part # Description Qty Price
Common parts
90119-T0145
90179-T0008

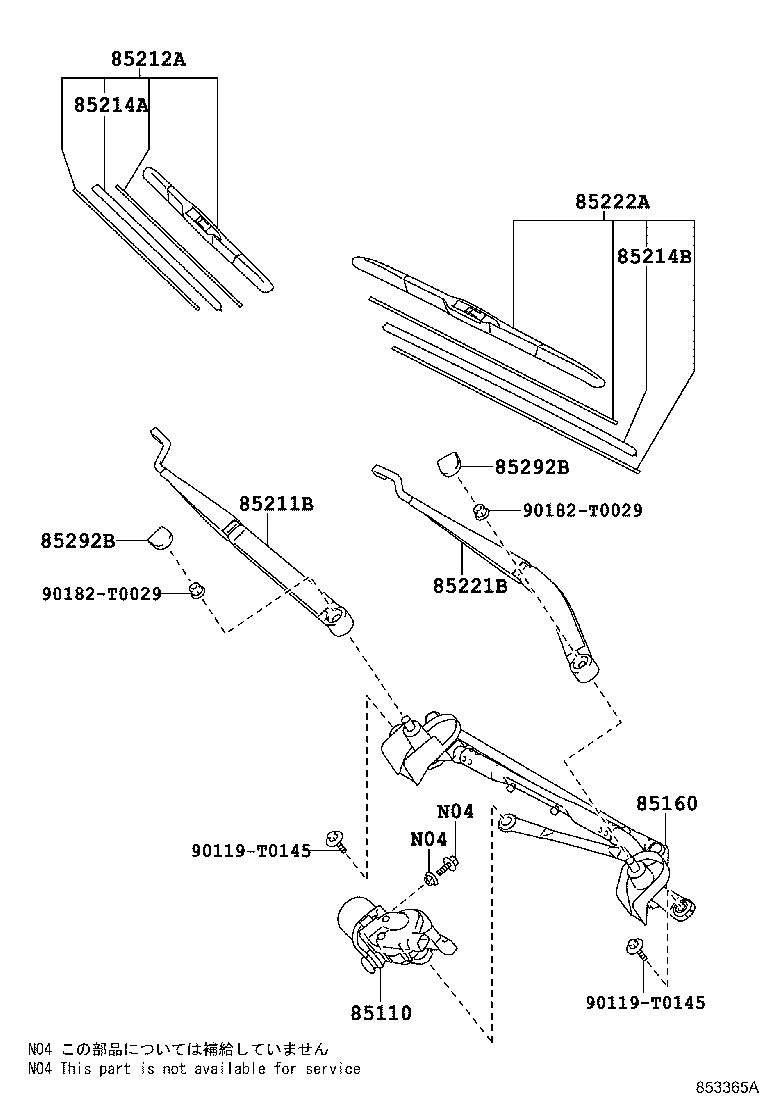

(1505- )LHD

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90182T0029 90182T0029
Part # Description Qty Price
85211B - ARM, FRONT WIPER, RH
85211-0K140

TGN126..5F..L..GEN;TGN126..BZAGT,GCC,LA,SA;GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,127,128,13#..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-42130

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD

 1
85214A - RUBBER, WIPER, RH
85214-28090

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD

 1
85214B - RUBBER, WIPER, LH
85214-53080

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-0K141

TGN126..5F..L..GEN;TGN126..BZAGT,GCC,LA,SA;GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,127,128,13#..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-71010

GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT,VDC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT,VDC;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,12#,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT,VDC

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT,VDC;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT,VDC;GGN135,GUN112,120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,12#,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT,VDC

 2
Common parts
90119-T0145
90182-T0029

(2006- )LHD..BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90182T0029 90182T0029
Part # Description Qty Price
Common parts
90119-T0145
90182-T0029
