TGN136L-BGMXKF (2015)
Toyota Hilux

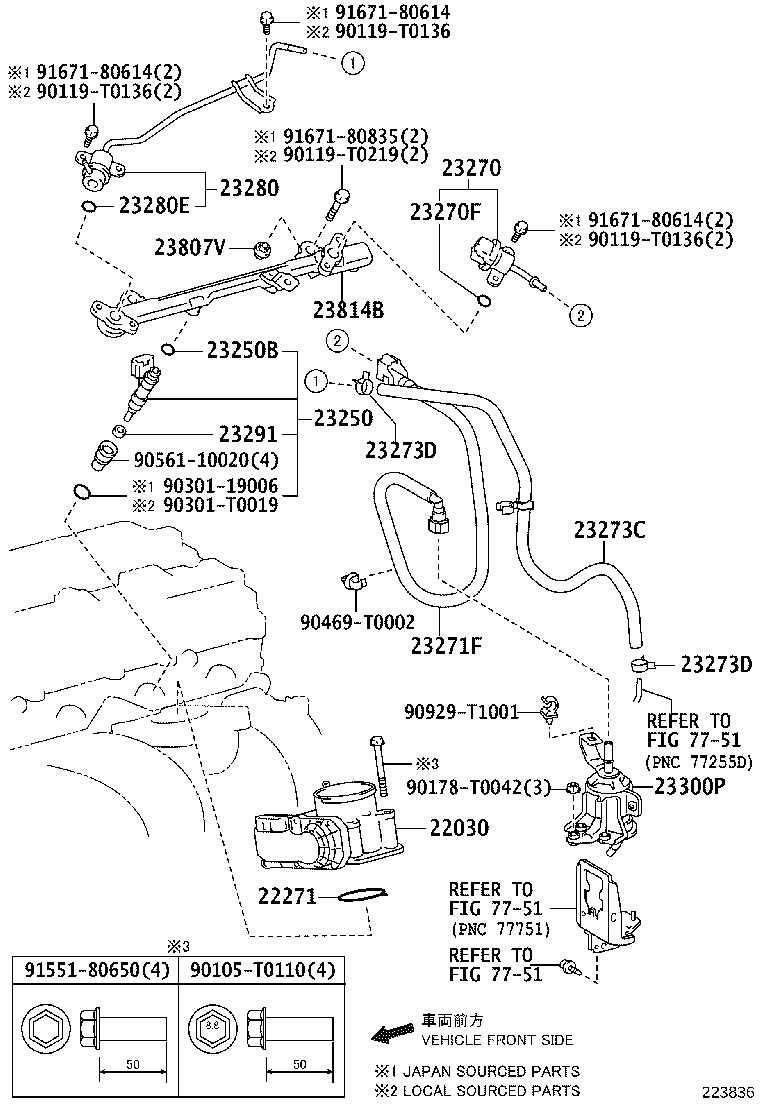

ILLUST NO. 1 OF 2(1107- )1TRFE,2TRFE..CNG,HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0059 | ||||
| 90105-T0110 | ||||
| 90119-T0136 | ||||
| 90119-T0240 | ||||
| 90126-06027 | ||||
| 90178-T0042 | ||||
| 90178-T0053 | ||||
| 90301-T0019 | ||||
| 90430-12026 | ||||
| 90430-T0003 | ||||
| 90464-T0005 | ||||
| 90469-T0002 | ||||
| 90561-10020 | ||||
| 90929-T1001 | ||||
| 91671-80614 | ||||
| 91671-K0835 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 7751 | ||||

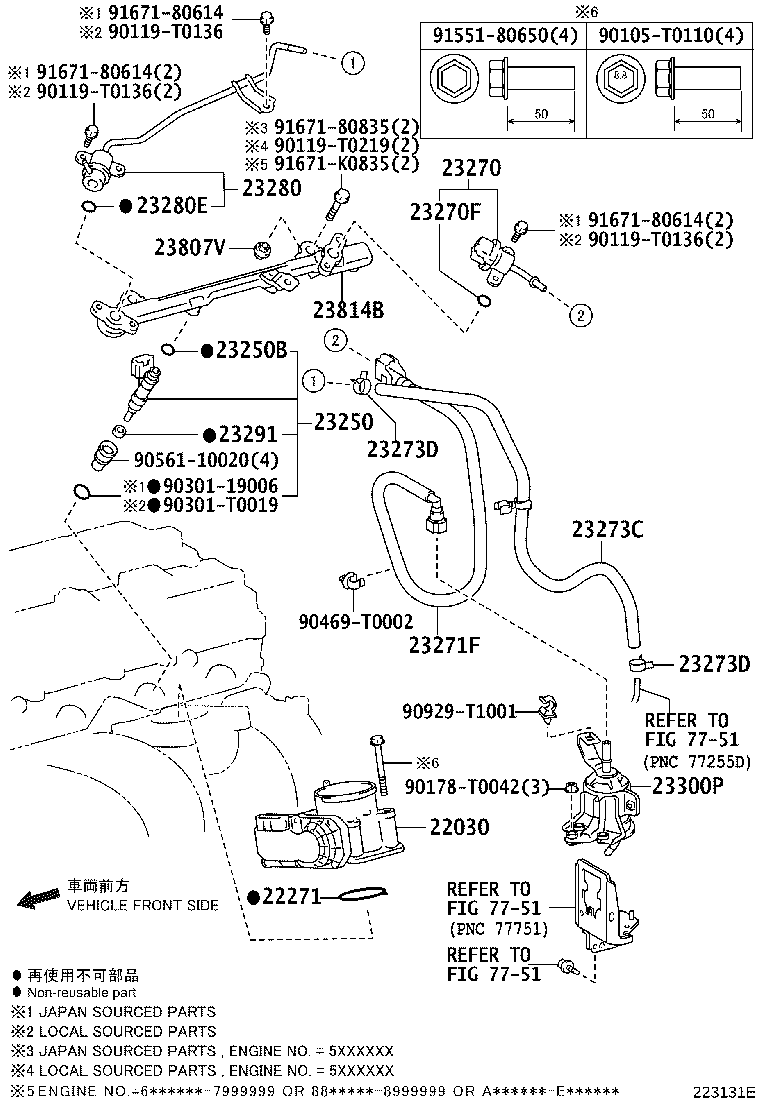

(1505- )1TRFE,2TRFE..TGN11#,12#,136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0C030 |
2TRFE..TGN111,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA (L) |
1 | ||
| 22030-75040 |
2TRFE..TGN111,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA (J) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0C021 |
2TRFE..TGN111,121,126,136 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-09320 |
2TRFE..TGN111,121,126,136 (L) |
4 | ||
| 23209-79215 |
2TRFE..TGN111,121,126,136 (J) |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2TRFE..TGN111,121,126,136 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-75050 |
1TRFE,2TRFE..TGN11#,120,121,126,136 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-0C070 |
1TRFE,2TRFE..TGN11#,120,121,126,136 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-0C170 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 90466-T0040 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 90466-T0040 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75100 |
1TRFE,2TRFE..TGN11#,120,121,126,136 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07037 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-75140 |
2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT;1TRFE,2TRFE..TGN11#,120,121,126..ARL,BZAGT,GCC,GEN,LA,SA,TH |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-75020 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-75110 |
1TRFE,2TRFE..TGN11#,120,121,126,136 |
1 | ||
| Common parts | ||||
| 90105-T0110 | ||||
| 90119-T0136 | ||||
| 90119-T0219 | ||||
| 90178-T0042 | ||||
| 90301-19006 | ||||
| 90301-T0019 | ||||
| 90469-T0002 | ||||
| 90561-10020 | ||||
| 90929-T1001 | ||||
| 91551-80650 | ||||
| 91671-80614 | ||||
| 91671-80835 | ||||
| 91671-K0835 | ||||
| Linked diagrams | ||||
| 7751 | ||||
(2006- )1TRFE,2TRFE..TGN11#,120,121,126,136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0110 | ||||
| 90119-T0136 | ||||
| 90119-T0219 | ||||
| 90178-T0042 | ||||
| 90301-19006 | ||||
| 90301-T0019 | ||||
| 90469-T0002 | ||||
| 90561-10020 | ||||
| 90929-T1001 | ||||
| 91551-80650 | ||||
| 91671-80614 | ||||
| 91671-80835 | ||||
| Linked diagrams | ||||
| 7751 | ||||
