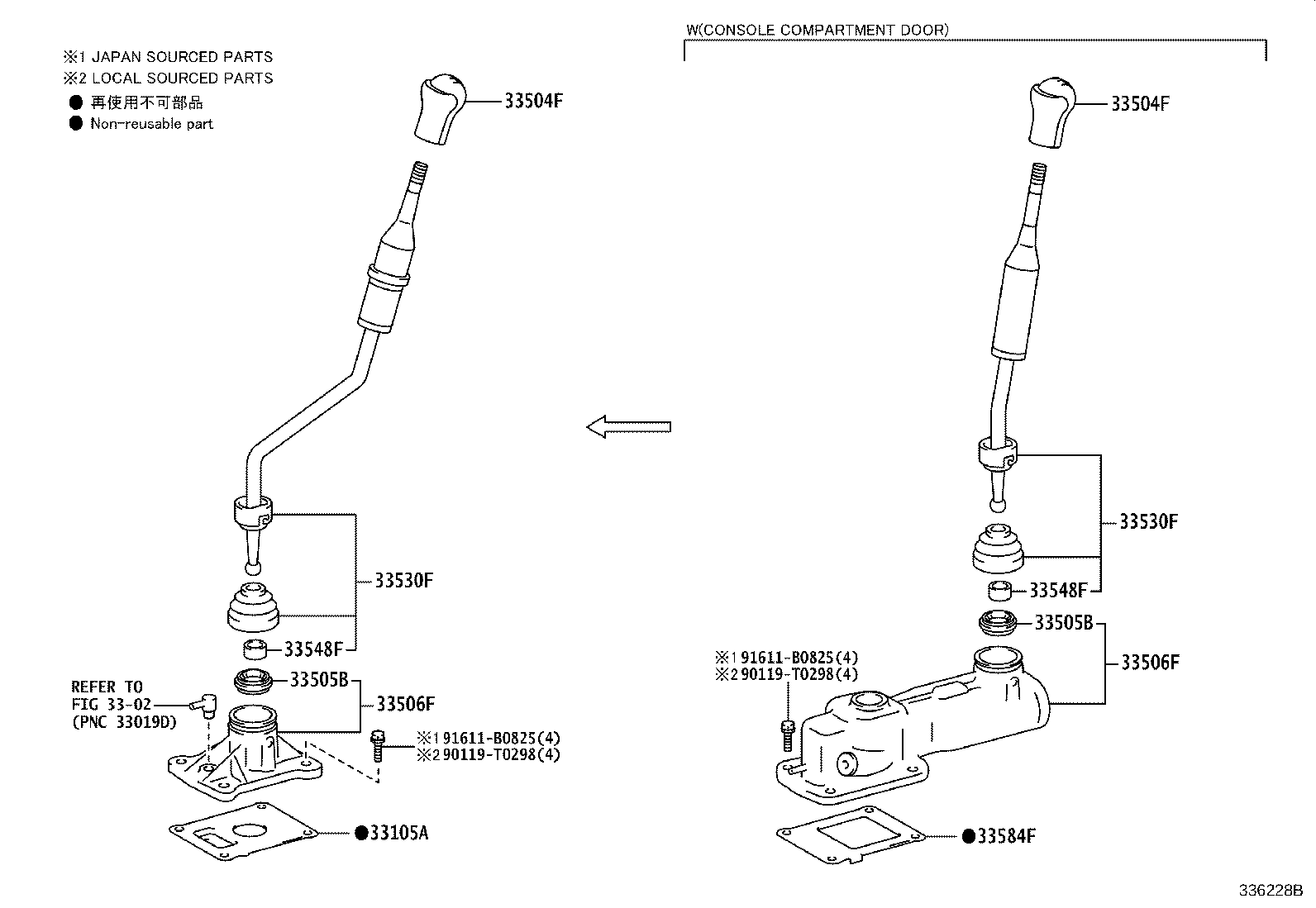

TGN126L-DTMHKF (2020)
Toyota Hilux
(2006- )LAN125,TGN126..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-35030 |
TGN126..5F..L;TGN126..TS..S TYPE B:REFER 33-01 |
1 | ||
| 33144-35030 |
TGN126..5F..L;TGN126..TS..S TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0K050 |
GUN122,TGN121,126..5F..H |
1 | ||
| 33504-0K270C0 |
TGN121..TD..GEN;TGN121..TS..5F..(ARL,GEN,TH);GUN112,122,123,TGN110,126,136..5F..L..(BZAG,GEN,IDN,LA,PH,TH) BLACK,TRIM2# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0K050 |
GUN122,TGN121,126..5F..H |
1 | ||
| 33504-0K270C0 |
TGN121..TD..GEN;TGN121..TS..5F..(ARL,GEN,TH);GUN112,122,123,TGN110,126,136..5F..L..(BZAG,GEN,IDN,LA,PH,TH) BLACK,TRIM2# |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-0K010 |
GUN112,122,123,TGN11#,12#,136..5F TYPE B:REFER 33-01 |
1 | ||
| 33505-35030 |
TGN126..TS..S;LAN125,TGN126..5F..L TYPE C:REFER 33-01 |
1 | ||
| 33505-0K010 |
TGN126..(AD,SD,TD)..5F..(H,S);GUN112,122,123,TGN11#,120,121,136..(AD,AS,SD,SS,TD,TS)..5F TYPE C:REFER 33-01 |
1 | ||
| 33505-35030 |
GUN112,122,123,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F TYPE A:REFER 33-01 |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-0K010 |
GUN112,122,123,TGN11#,12#,136..5F TYPE B:REFER 33-01 |
1 | ||
| 33505-35030 |
TGN126..TS..S;LAN125,TGN126..5F..L TYPE C:REFER 33-01 |
1 | ||
| 33505-0K010 |
TGN126..(AD,SD,TD)..5F..(H,S);GUN112,122,123,TGN11#,120,121,136..(AD,AS,SD,SS,TD,TS)..5F TYPE C:REFER 33-01 |
1 | ||
| 33505-35030 |
GUN112,122,123,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F TYPE A:REFER 33-01 |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-0K061 |
TGN126..TD..5F..(H,S) |
1 | ||
| 33506-0K021 |
TGN126..5F..L;TGN126..TS..S TYPE B:REFER 33-01 |
1 | ||
| 33506-0K011 |
TGN126..5F..L;TGN126..TS..S TYPE A:REFER 33-01 |
1 | ||
| 33570-0K071 |
TGN126..(AD,SD,TD)..5F..(H,S) TYPE C:REFER 33-01 |
1 | ||
| 33506-60061 |
TGN126..TS..S;LAN125,TGN126..5F..L TYPE C:REFER 33-01 |
1 | ||
| 33570-0K051 |
TGN126..(AD,SD,TD)..5F..(H,S) TYPE A:REFER 33-01 |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-0K061 |
TGN126..TD..5F..(H,S) |
1 | ||
| 33506-0K021 |
TGN126..5F..L;TGN126..TS..S TYPE B:REFER 33-01 |
1 | ||
| 33506-0K011 |
TGN126..5F..L;TGN126..TS..S TYPE A:REFER 33-01 |
1 | ||
| 33570-0K071 |
TGN126..(AD,SD,TD)..5F..(H,S) TYPE C:REFER 33-01 |
1 | ||
| 33506-60061 |
TGN126..TS..S;LAN125,TGN126..5F..L TYPE C:REFER 33-01 |
1 | ||
| 33570-0K051 |
TGN126..(AD,SD,TD)..5F..(H,S) TYPE A:REFER 33-01 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K631 |
TGN126..(AD,SD,TD)..5F..(H,S) |
1 | ||
| 33530-0K741 |
TGN126..5F..L;TGN126..TS..S |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K631 |
TGN126..(AD,SD,TD)..5F..(H,S) |
1 | ||
| 33530-0K741 |
TGN126..5F..L;TGN126..TS..S |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
GUN112,122,123,LAN125,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
GUN112,122,123,LAN125,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33584-0K030 |
TGN126..TD..5F..(H,S) TYPE B:REFER 33-01 |
1 | ||
| 33584-60070 |
TGN126..(AD,SD,TD)..5F..(H,S) TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90119-T0298 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 3302 | ||||
